Chapter 2. Device setup

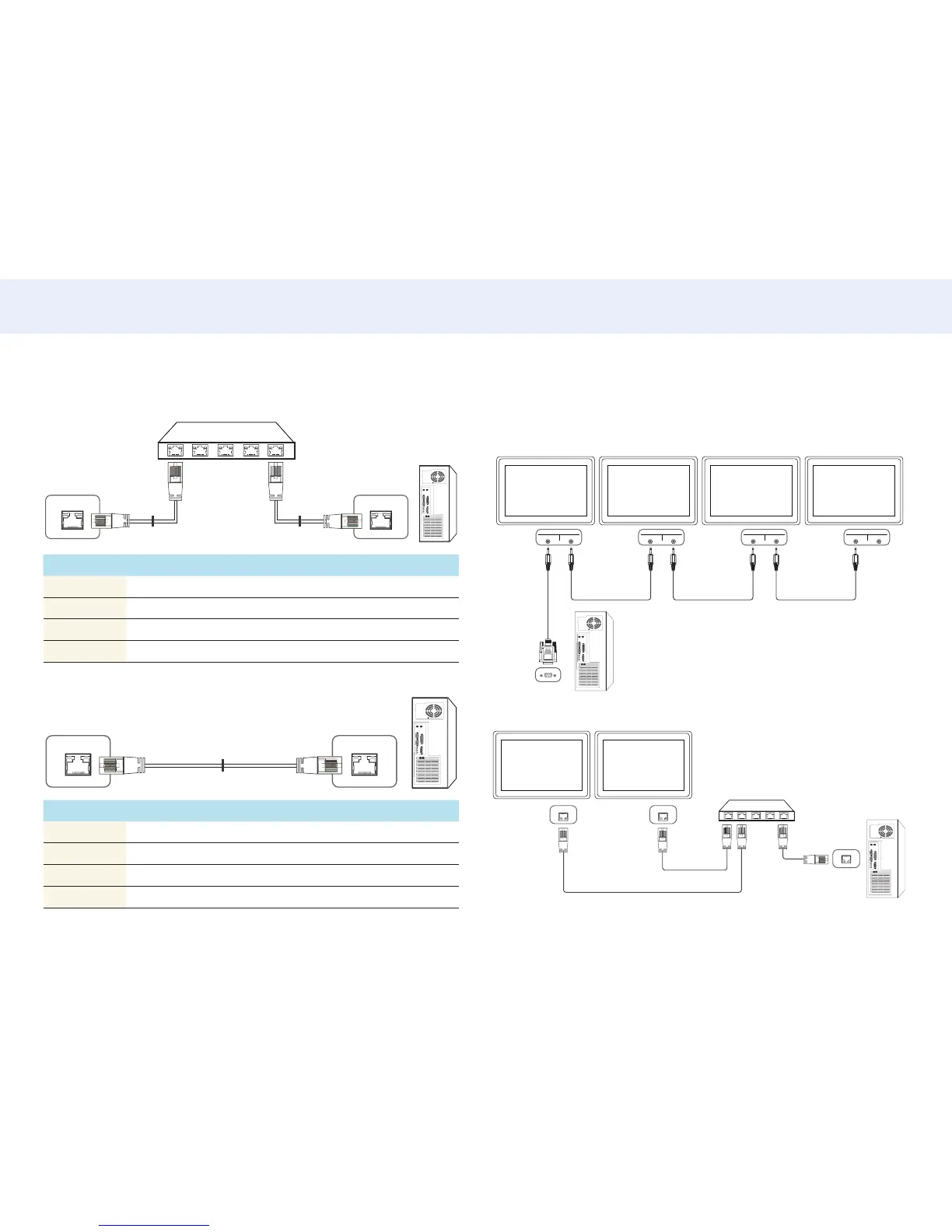

Direct LAN cable (PC to HUB)
• Connector : RJ45
RJ45 MDC
HUB
P2
P1
P2
P1
RJ45
Signal P1 P2 Signal
TX+ 1

1 TX+
TX- 2

2 TX-
RX+ 3

3 RX+
RX- 6

6 RX-
Cross LAN cable (PC to PC)
RJ45
P1
P2
Signal P1 P2 Signal
TX+ 1

3 RX+
TX- 2

6 RX-
RX+ 3

1 TX+
RX- 6

2 TX-
Connection
• Ensure you connect each of the adapters to the correct RS232C IN or OUT port on
the product.
Connection 1
RS232C
IN OUT
RS232C
IN OUT
RS232C
IN OUT
RS232C
IN OUT
Connection 2
RJ45 RJ45
