3.
Disassembly
and
Reassembly

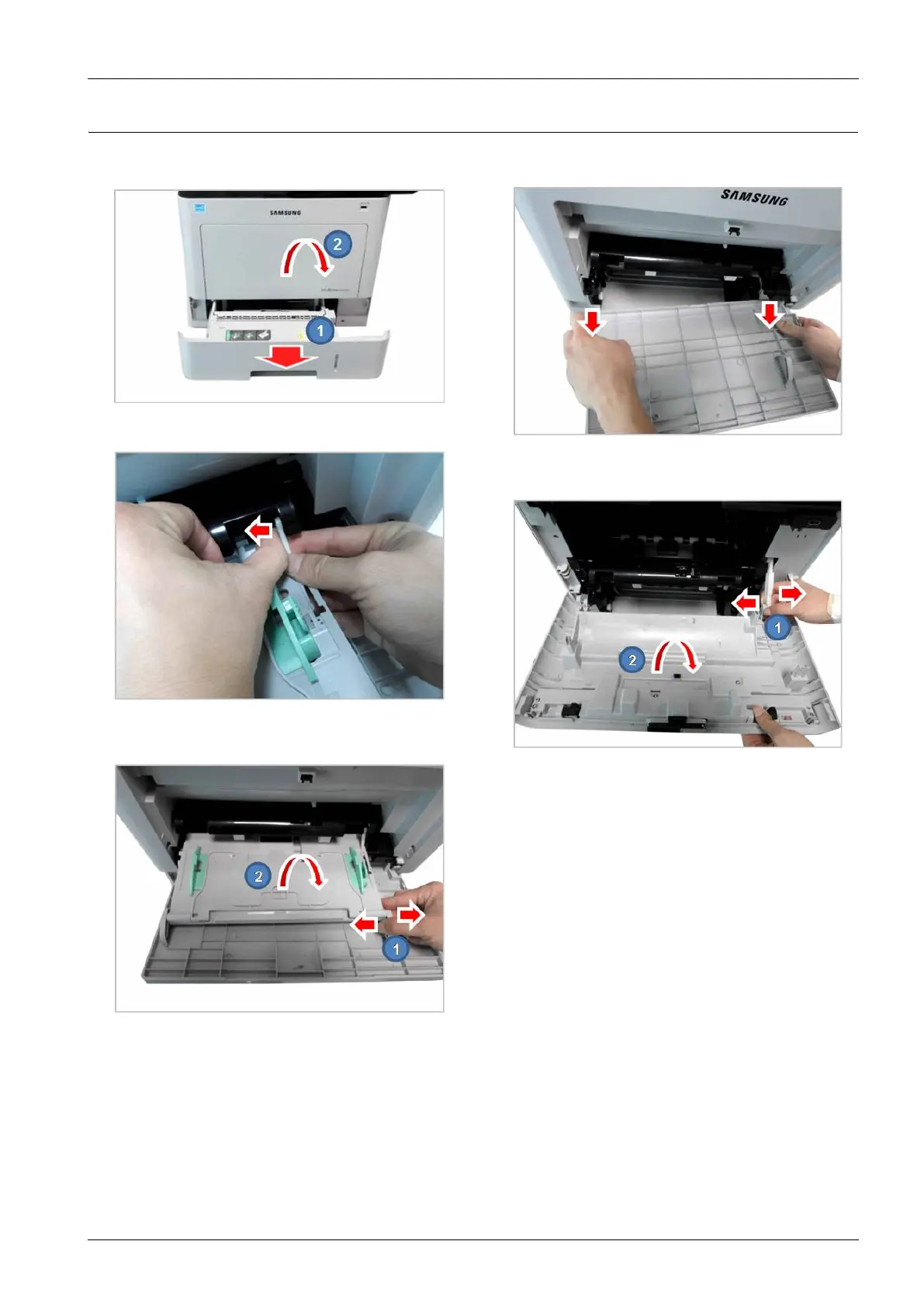

3.3.2.
Front
Cover
1.
Remove
the
cassette.
Open
the
MP
tray
.
2.
Release
the
linker
from
the
right
of
the
MP
tray
.
3.
Remove
the
MP
tray
by
releasing
the
hook
of
the
COVER-MP
.
4.
Remove
the
COVER-MP
.
5.
Release
the
linker
from
the
right
of
the
front
cover
.
Then
remove
the
front
cover
.
Copyright©
1995-2017
SAMSUNG.
All
rights
reserved.
3-9
