3.
Disassembly
and
Reassembly
3.3.14.
Duplex
clutch
and
Pick
up
clutch

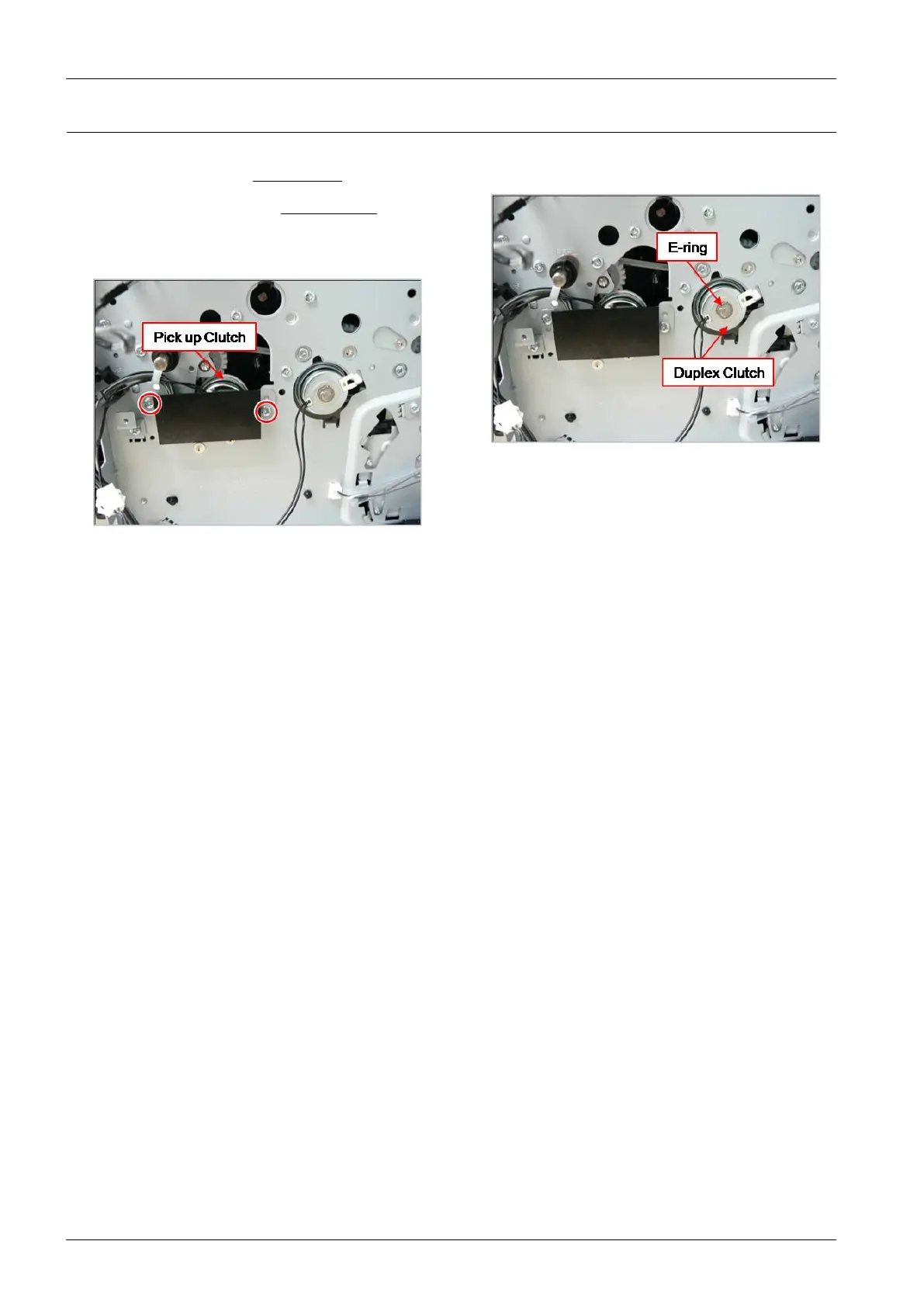

1.
Remove
the
right
cover
.
(Refer
to
3.3.3.)
2.
Remove
the
main
drive
unit.
(Refer
to
3.3.13.)
3.
Release
the
bracket
after
removing
2
screws.
Then,
remove
the
pick
up
clutch.
4.
Remove
the
E-ring.
Then,
remove
the
duplex
clutch.
3-24
Copyright©
1995-2017
SAMSUNG.
All
rights
reserved.
97
99
Table of Contents
Table of Contents
2
Precautions
7
Safety Warning
7
Caution for Safety
8
Toxic Material
8
Electric Shock and Fire Safety Precautions
8
Handling Precautions
10
Assembly and Disassembly Precautions
10
Disregarding this Warning May Cause Bodily Injury
11
ESD Precautions
12
Caution for Data Loss
13
Product Specifications and Description
14
Product Overview
14
Specifications
15
General Specification
15
Print Specifications
17
Scan Specification
18
Copy Specification
19
Fax Specification
20
Paper Handling Specification
21
Software and Solution Specification
23
Supplies
24
Maintenance Parts
25
System Configuration
27
Feeding System
31
Feeding System Overview
31
Cassette
34
Pick-Up Unit
35
Registration Unit
36
Mpf(Multi-Purpose Feeder) Unit
37
Image Creation
38
Printing Process Overview
38
Toner Cartridge
39
Imaging Unit
40
Development
41
Fuser Unit
42
Fuser Unit Overview
42
Fuser Unit Drive
43
Fuser Unit Temperature Control
44
Laser Scanning Unit (LSU)
45
Laser Scanning Unit Overview
45
Laser Scanning Optical Path
46
Drive System
47
Drive Motors
47
Main Drive Unit
49
Exit Drive Unit
50
Tray Lifting Drive Unit
51
Scanner System
52
Hardware Configuration
56
Main Board
58
Msok
60
Fax Card
60
Ope
61
USB Host PBA
63
SMPS Board
64
Fuser Drive Board (FDB)
66
HVPS Board
68
SCF Board
69
Eraser PBA
70
Cover-Open PBA
70
Deve_Toner Crum Joint PBA
71
Toner Remain Sensor PBA
71
Joint PBA
72
Crum Pba
72
Sensor Location
73
Disassembly and Reassembly
75
Precautions When Replacing Parts
75
Precautions When Assembling and Disassembling
75
Precautions When Handling PBA
75
Releasing Plastic Latches
76
Replacing the Maintenance Part
77
Fuser Unit
77
Transfer Roller
78
Pick-Up_Forward Roller
79
SCF Separation Roller
80
SCF Pick-Up Roller and Forward Roller
81
Replacing the Main SVC Part
82
Rear Cover
82
Front Cover
83
Right_Left Cover
84
DSDF Unit
86
OPE Unit
87
Platen Unit
88
Middle Cover
89
HDD (Hard Disk Drive)
92
Main Board
93
Joint PBA
94
SMPS and FDB (Fuser Drive Board)
95
OPC Motor and Main Motor
96
Main Drive Unit
97
Duplex Clutch and Pick up Clutch
98
HVPS Board
99
Exit Unit
100
Lsu
101
Eraser Lamp PBA
102
Cover Open PBA
103
Pick up Assy
104
Second Cassette Feeder (Optional Tray)
107
Pba-Scf
107
Lift Unit
108
Clutch
109
Drive Unit
110
Troubleshooting
111
Control Panel
111
Understanding the Status LED
112
Updating Firmware
113
Updating from the Printer Control Panel
113
Updating from the Network
114
JAM Removal
117
Clearing Original Document Jams
117
Clearing Paper Jams
120
Service Mode
127
Entering the Service Mode
127
Service Mode Menu Tree
128
Information
132
General
132
Supply Status
132
Software Version
132
Service Hours
133
Fault Log
133
Print Reports
133
Export Reports
133
Maintenance Counts
134
Fault Count
134
Jam Count
134
Level 1
134
Part Replacement Count
135
Diagnostics
136
Engine Diagnostics
136
Level
138
Fax Diagnostics
140
Scanner Diagnostics
143
Adjustment
145
Service Functions
150
Main Memory Clear
150
Hard Disk Maintenance
150
Network Port
150
Debug Log
151
Capture Log
151
Network Packet Capture
152
System Recovery
153
Clear System Cache
154
Hibernation
154
Paper Low Warning Message
155
Part Replacement Alert
155
Fdi
155
EIUL (End of Image Unit Life)
155
SFE (Special Feature Enablement)
155
Sfe
155
Error Code and Troubleshooting
158
11-Xxxx_61-XXXX Type Error Code
163
Ax-XXXX Type Error Code
167
The Room Temperature Is Not Suitable for this Set Use. Please Adjust Room Temperature
171
Lamp Failure: #A4-1110. Open the Door, then Close It. Call for Service if the Problem Persists
172
CX-XXXX Type Error Code
173
Toner Is Low
173
C1-111A
173
Shake Toner Cartridge and then Install. Replace Toner Cartridge if the Problem Persists
173
End of Life, Replace with New Toner Cartridge
173
Toner Is very Low
173
Shake Toner Cartridge and then Install. Call for Service if the Problem Persists
174
Call for Service if the Problem Persists
174
Toner Cartridge Is Not Installed. Install the Cartridge
175
Toner Cartridge Failure: #C1-1712. Call for Service
177
Prepare New Imaging Unit
178
Replace with New Imaging Unit
178
Imaging Unit Failure: #C3-1312. Install Imaging Unit Again
179
Imaging Unit Is Not Installed. Install the Unit
179
Imaging Unit Failure: #C3-1414. Install Imaging Unit Again
179
Imaging Unit Failure: #C3-1712. Call for Service
180
Replace with New Fuser Unit
180
H1-XXXX Type (Optional Cassette) Error Code
181
Paper Jam in Tray 2. Please Open the Door and Remove Paper, then Close the Door
181
Tray 2 Cassette Is Pulled Out. Insert It Properly
183
Paper Is Empty in Tray 2. Load Paper
184
Tray Failure: #H1-1253. Pull Tray 2 out and Insert It. Call for Service if the Problem Persists
185
Paper Jam in Tray 3. Please Open the Door and Remove Paper, then Close the Door
186
Tray 3 Cassette Is Pulled Out. Insert It Properly
188
Error Message
188
Paper Is Empty in Tray 3. Load Paper
189
Tray Failure: #H1-1353. Pull Tray 3 out and Insert It. Call for Service if the Problem Persists
190
Paper Jam in Tray 4. Please Open the Door and Remove Paper, then Close the Door
191
Tray 4 Cassette Is Pulled Out. Insert It Properly
193
Paper Is Empty in Tray 4. Load Paper
194
Tray Failure: #H1-1453. Pull Tray 4 out and Insert It. Call for Service if the Problem Persists
195
MX-XXXX Type Error Code
196
Paper Jam in Tray 1. Please Remove the Paper
196
Paper Jam in MP Tray. Please Remove the Paper
198
Tray 1 Cassette Is Pulled Out. Insert It Properly
200
Tray Failure: #M1-4111. Pull Tray 1 out and Insert It. Call for Service if the Problem Persists
200
Paper Is Empty in Tray 1. Load Paper
201
Paper Is Empty in All Tray. Load Paper
201
Paper Is Empty in MP Tray. Load Paper
202
Paper Jam Inside of Machine. Please Remove the Paper
203
Paper Jam at the Top of Duplex Path. Please Remove the Paper
205
Paper Jam Inside of Duplex Path. Please Remove the Paper
205
Paper Jam at the Bottom of Duplex Path. Please Remove the Paper
205
Paper Jam in Exit Area. Please Remove the Paper
206
Paper Jam Inside of Machine. Please Remove the Paper
206
Sx-XXXX Type Error Code
208
System Failure: #S1-2433 . Call for Service
208
There Is Not Enough Space on the Hard Disk. Please Delete the Information Stored in the Address Book
208
There Is Not Enough Space on the Hard Disk. Please Delete the Stored File
208
MSOK Failure: #S1-2510. Call for Service and Change MSOK
209
MSOK Failure: #S1-2550. Call for Service and Change MSOK
209
Engine Failure: #S2-1110. Call for Service if the Problem Persists
210
S2-331D
210
Wait Delay Time for Lower Fixing Temperature
210
Front Door Is Open. Close It
211
Rear Door Is Open. Close the Door
212
Scan System Failure: #S3-3130. Call for Service
214
S3-3230 Scan System Failure: #S3-3230. Call for Service
214
This IP Address Conflicts with that of Other System. Check It
215
Authentication Failed. Please Contact the System Administrator
216
U1-XXXX Type (Fuser) Error Code
217
Fuser Unit Failure: #U1-2115. Turn off then On. Call for Service if the Problem Persists
217
Fuser Unit Failure: #U1-2116. Turn off then On. Call for Service if the Problem Persists
217
U2-XXXX Type (LSU) Error Code
224
U3-XXXX Type(DSDF) Error Code
225
Image Quality Problem
227
DSDF Skew Adjustment for M4560FX
241
System Diagram
242
Block Diagram
243
Connection Diagram1
244
Connection Diagram2
245
Reference Information
246
Tool for Troubleshooting
246
Glossary
247
The Sample Pattern for the Test
253
Model Name and Code
254
Document Revision List
255
