Samsung QB43B User Manual

23

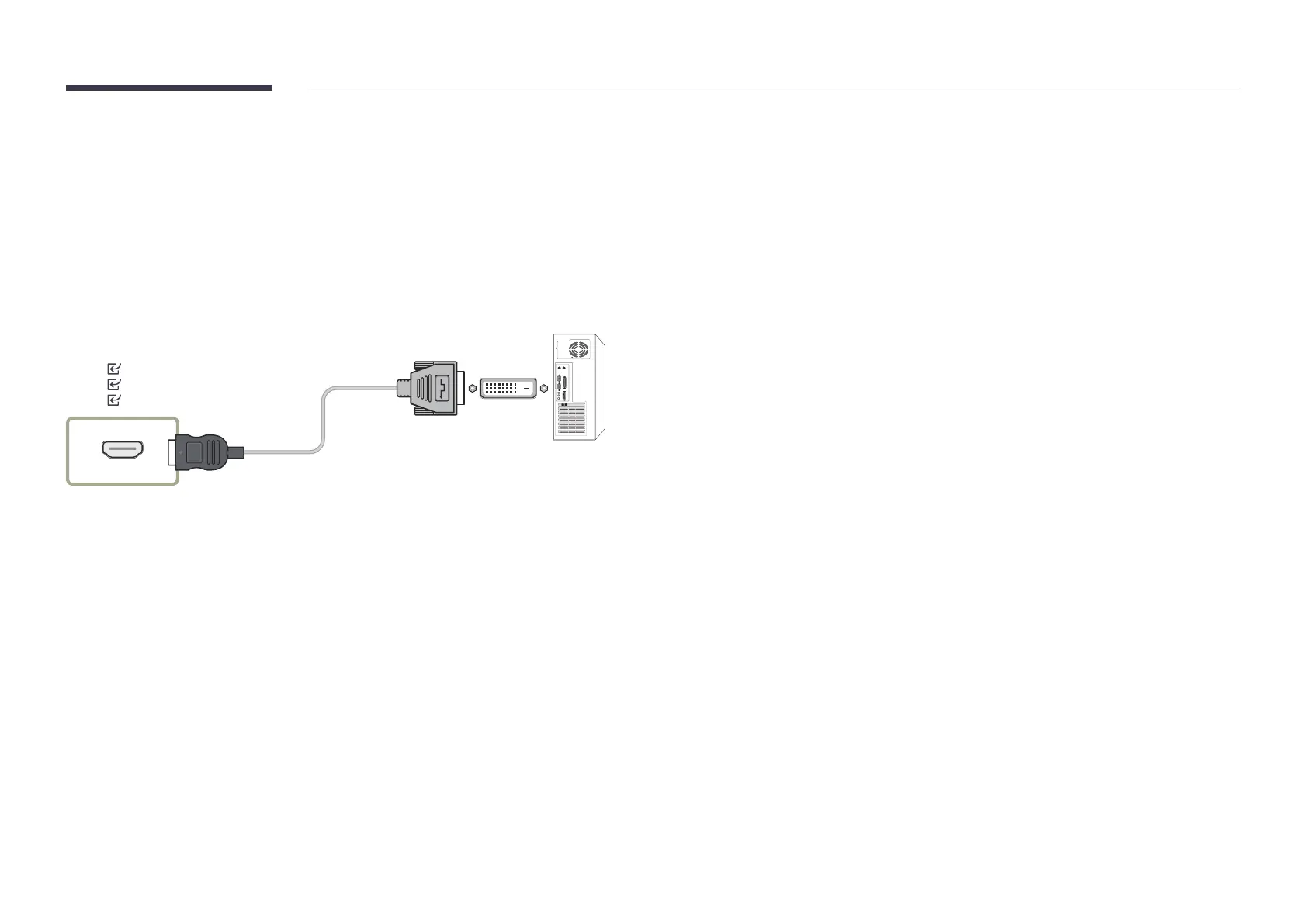

Connection Using an HDMI-DVI Cable
"
Connecting parts may differ in different products.
"
Audio is only available on models that support the AUDIO IN port.
After connecting a computer to the product with an HDMI-DVI cable, make sure to configure
the settings as shown below to enable the video and audio from the computer.
 MenuSoundHDMI Sound to PC(DVI)
"
Sound settings may not be supported depending on the model.
 MenuSystemGeneralHDMI Hot Plug to Off
HDMI 3 (ARC)
HDMI 2
HDMI 1

Samsung QB43B Specifications

General

Haze rate	2 %
Pixel pitch	0.245 x 0.245 mm
Response time	8 ms
RGB color space	DCI-P3
Color saturation	92 %
Display diagonal	43 \
Display brightness	350 cd/m²
Display technology	VA
Number of displays	1
Vertical scan range	48 - 75 Hz
Horizontal scan range	30 - 81 kHz
Display number of colors	1 billion colors
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (sleep)	0.5 W
Power consumption (typical)	110 W
Internal memory	8 GB
Computer system type	System on Chip (SoC)
Operating system installed	Tizen 6.5
USB ports quantity	2
HDMI ports quantity	3
DVI-I ports quantity	0
Package depth	151 mm
Package width	1095 mm
Package height	676 mm
Package weight	13300 g
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80 %
Orientation	Horizontal/Vertical
Mounting type	Wall
Product color	Black
Product design	Digital signage flat panel
Placement supported	Indoor
Panel mounting interface	200 x 200 mm
Purpose	Universal
HDCP version	2.2
Operating hours (hours/days)	16/7
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth	48.3 mm
Display width	967.5 mm
Display height	557.7 mm
Display weight	10000 g
