Samsung QB43B - Control Cable Connections; RS232 C Cable Connector Details; LAN Cable Specifications

31

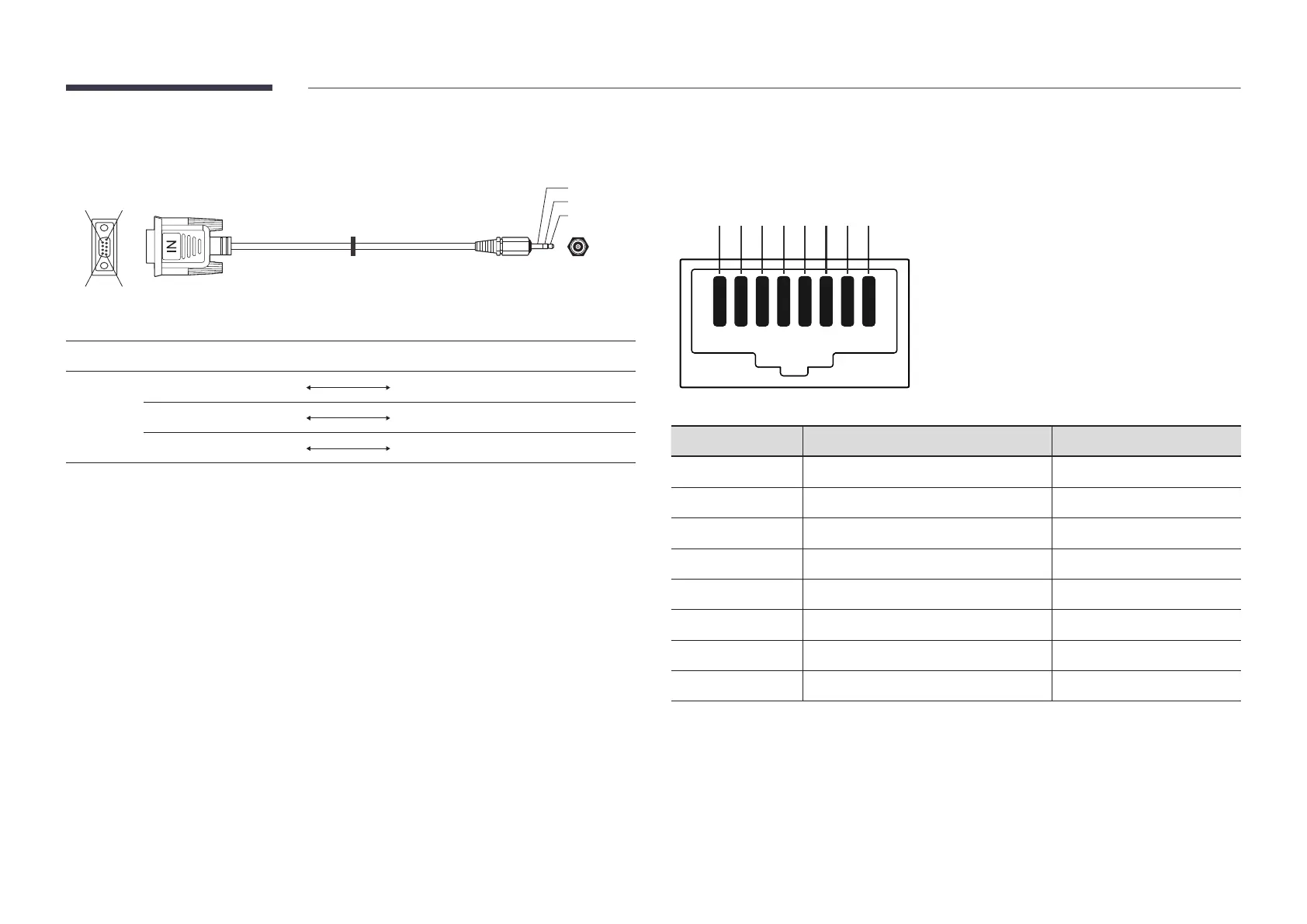

 RS232C cable
Connector: 9-Pin D-Sub to Stereo Cable
5
16
9
-P2-
1
2
3
-P1-
-P1- -P1- -P2- -P2-
Male type
Rx 3
1 Tx STEREO
Tx 2
2 Rx PLUG
Gnd 5
3 Gnd (3.5ø)
LAN Cable
 Pin assignment
1 2 3 4 5 6 7 8
Pin No Standard Color Signal
1 White and orange TX+
2 Orange TX-
3 White and green RX+
4 Blue NC
5 White and blue NC
6 Green RX-
7 White and brown NC
8 Brown NC
