Samsung QB43B - Multi-Display Connection Methods; Connection Type 1 (RS232 C); Connection Type 2 (LAN); Connection Type 3 (LAN)

33
Connection
"
Ensure you connect each of the adapters to the correct RS232C
port on the product.
"
Connecting parts may differ depending on the model.

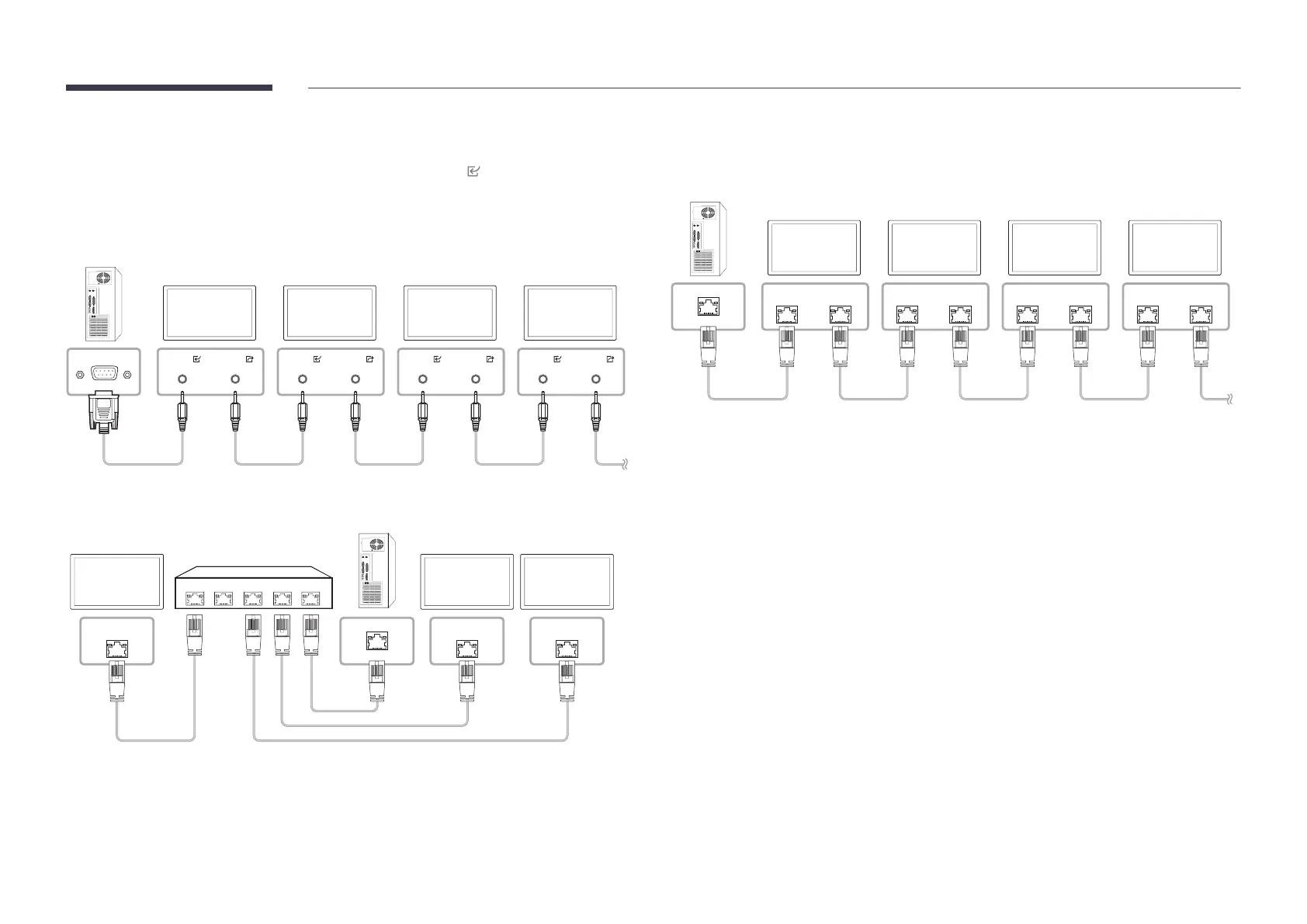

 Connection 1
RS232C IN RS232C RS232C IN RS232C RS232C IN RS232C RS232C IN RS232C
Monitor 1 Monitor 2 Monitor 3 Monitor 4
PC
 Connection 2
5 4 3 2 1
LAN LAN LAN
Monitor 2Monitor 1
PC
Monitor 3
 Connection 3
"
This option is only available for models that have LAN ports.
LAN LAN LAN LAN LAN LAN LAN LAN
Monitor 1 Monitor 2 Monitor 3 Monitor 4
PC
