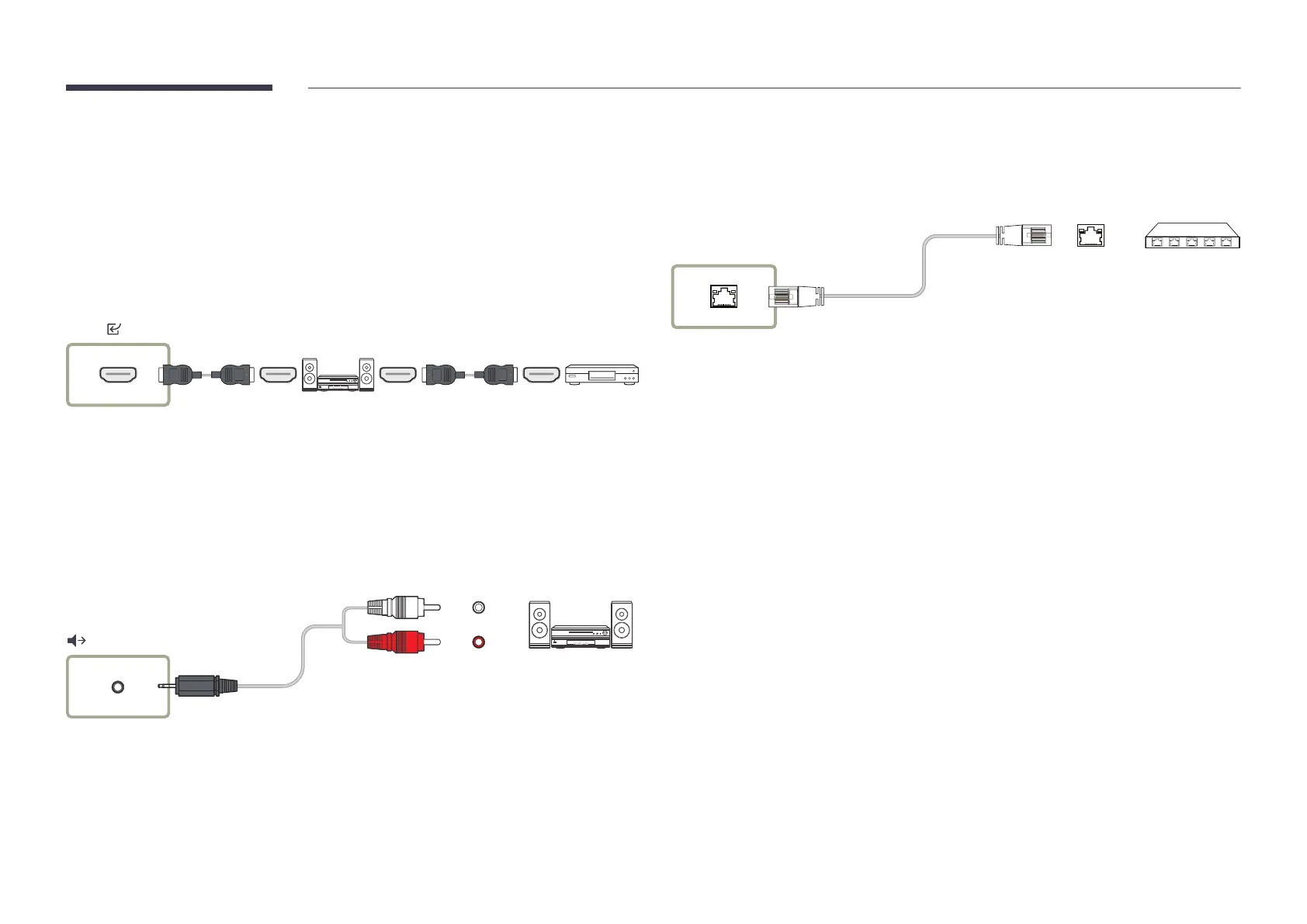

Connecting HDMI to Sound system and
Video device
"
Connecting parts may differ in different products.
After connecting a video device to the product using SOUND BAR HDMI Port an HDMI-DVI
cable, make sure to configure the settings as shown below.
MenuSystemGeneralHDMI Hot Plug to Off
HDMI 3 (ARC)
Connecting to an Audio System
"
Connecting parts may differ in different products.
"
Make sure to connect the same color connectors together. (white to white, red to red, etc.)
Connecting the LAN Cable
"
Connecting parts may differ in different products.
RJ45
 Use Cat7(*STP Type) cable for the connection. (10/100 Mbps)
*Shielded Twist Pair

Samsung QB50B Specifications

General

Haze rate	2 %
Pixel pitch	0.285 x 0.285 mm
Response time	8 ms
RGB color space	DCI-P3
Color saturation	92 %
Display diagonal	50 \
Display brightness	350 cd/m²
Display technology	VA
Number of displays	1
Vertical scan range	48 - 75 Hz
Horizontal scan range	30 - 81 kHz
Contrast ratio (typical)	4000:1
Display number of colors	1 billion colors
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (sleep)	0.5 W
Power consumption (typical)	143 W
Internal memory	8 GB
Computer system type	System on Chip (SoC)
Operating system installed	Tizen 6.5
USB ports quantity	2
HDMI ports quantity	3
DVI-I ports quantity	0
Package depth	152 mm
Package width	1269 mm
Package height	784 mm
Package weight	17600 g
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80 %
Orientation	Horizontal/Vertical
Mounting type	Wall
Product color	Black
Product design	Digital signage flat panel
Placement supported	Indoor
Panel mounting interface	200 x 200 mm
Purpose	Universal
HDCP version	2.2
Operating hours (hours/days)	16/7
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth	46.3 mm
Display width	1121.4 mm
Display height	643.9 mm
Display weight	13400 g
