47

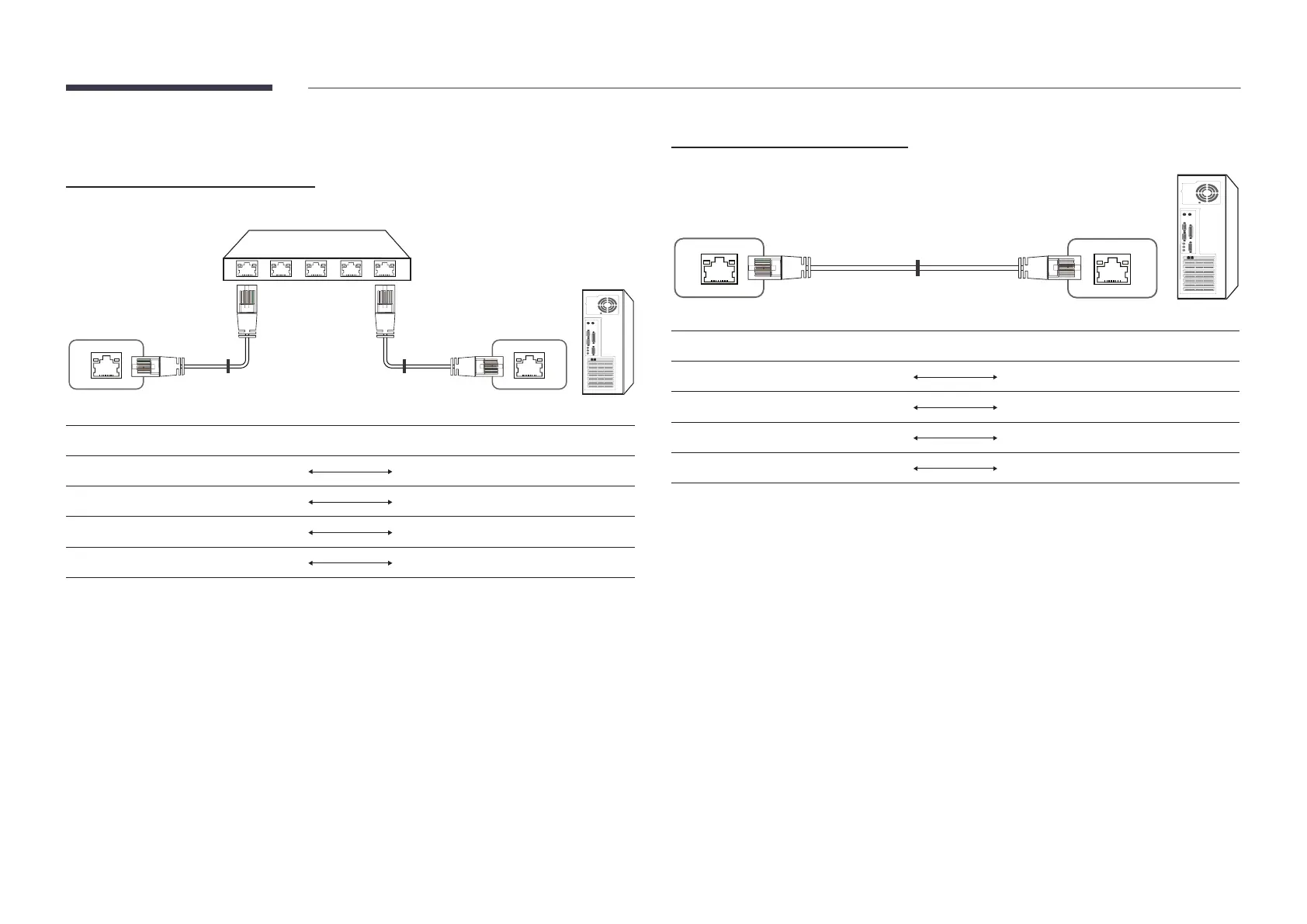

Connector : RJ45
Direct LAN cable (PC to HUB)
HUB
P1
P1P2
P2
Signal P1 P2 Signal
TX+ 1
1 TX+
TX- 2
2 TX-
RX+ 3
3 RX+
RX- 6
6 RX-
Cross LAN cable (PC to LFD)
P1 P2
Signal P1 P2 Signal
TX+ 1
3 RX+
TX- 2
6 RX-
RX+ 3
1 TX+
RX- 6
2 TX-
