Samsung RB2155BB - Refrigeration Cycle and Cool Air Circulation Route; 7-1) Refrigerant Route in Refrigeration cycle

10
7. Refrigeration Cycle and Cool Air Circulation Route

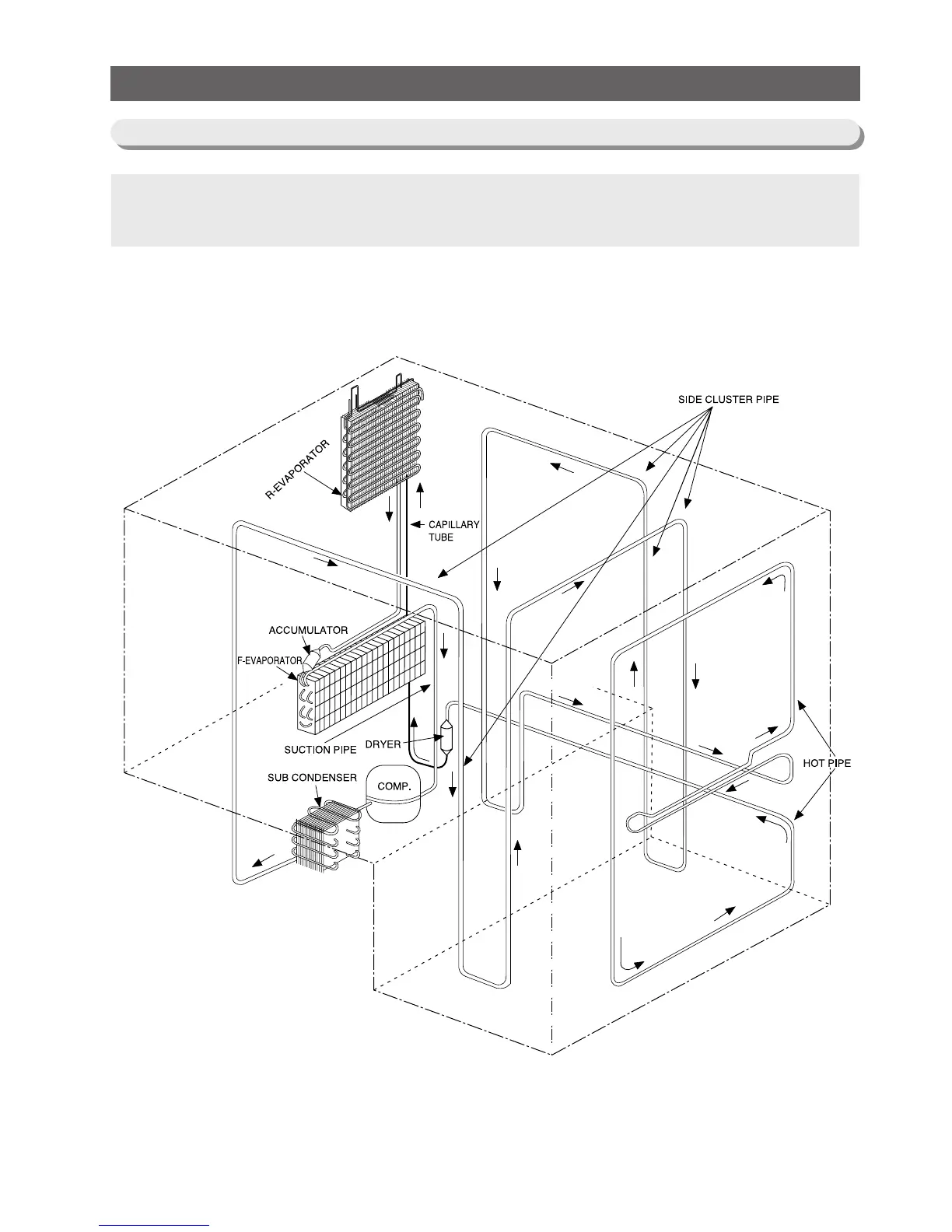

Compressor → Sub condenser → Cluster pipe → Hot pipe → Dryer → Capillary tube
→ R-Evaporator → F-Evaporator → Accumulator → Suction pipe → Compressor
7-1) Refrigerant Route in Refrigeration cycle
