Samsung Electronics 8-13
PCB Diagrams

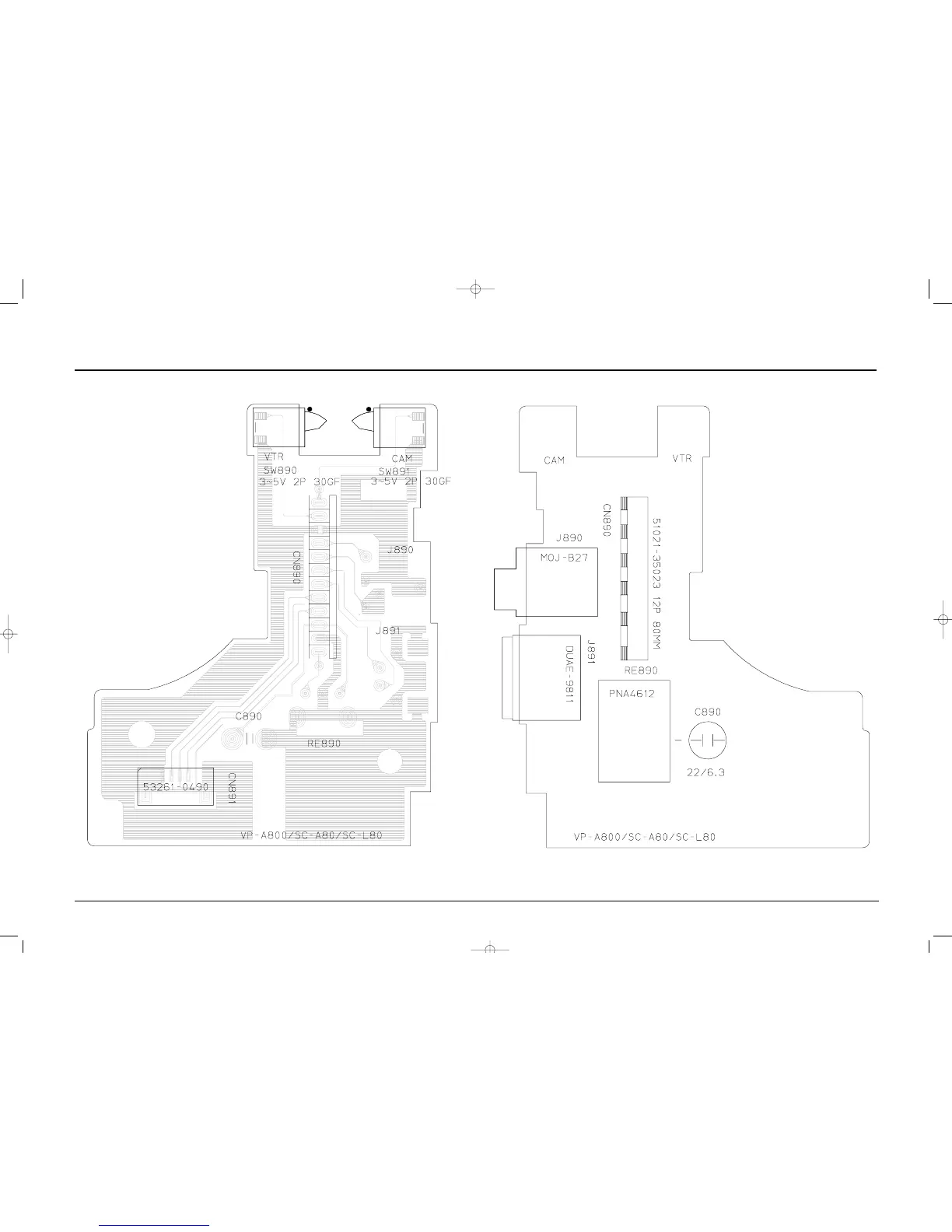

8-8 Front PCB without EIS (Stereo)
(Component Side) (Conductor Side)
8.PCB Diagrams 3/27/95 10:03 AM Page 13
