SIDE BOTTOM

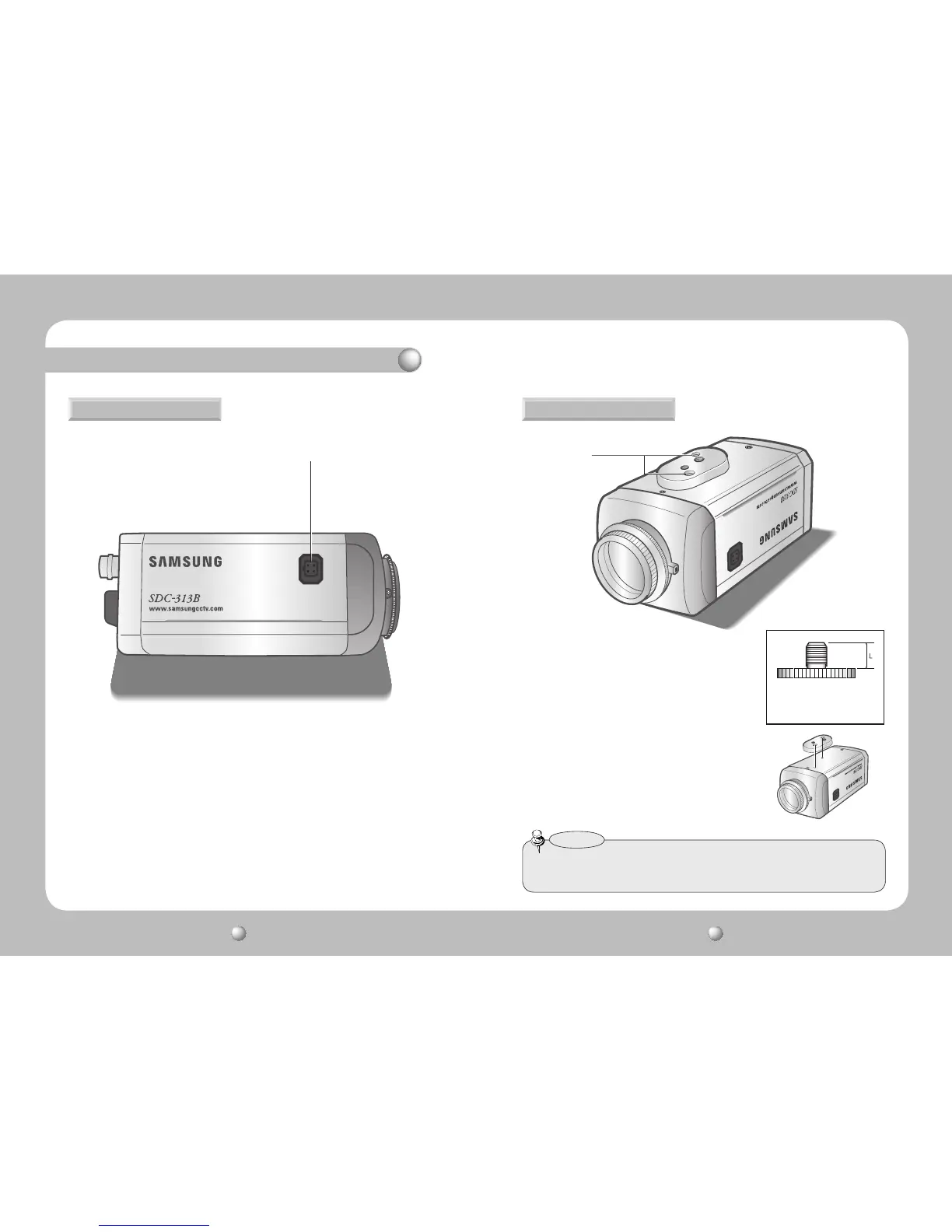

Names and Functions of Parts
5
5
Auto iris lens connector
This is the connection terminal for the auto iris lens.
6
Tripod Mounting Plate screw hole
Please use the screw hole when fixing the
camera onto the Tripod Mounting Plate.
※
The Tripod Mounting Plate can be separated and
attached to the top of the camera.
In this instance please do not tighten the screw to a depth
of more than 4mm, otherwise serious damage can occur
to the inside of the camera.
6
• This camera package does not include the Tripod Mounting Plate. Please refer to
the user's manual for installation of the Tripod Mounting Plate.
Notes
1/4"-20 UNC (20 THREAD)
L:4.5mm±0.2mm (ISO standard),
or 0.197" (ASA standard)
