installing your dryer _9
installing your dryer
TOOLS NEEDED FOR INSTALLATION
Hire a professional to install this dryer properly. If there is a service call performed as a result of poor setup,
adjustment, and connection, it is considered the responsibility of the installer. If you install the dryer you are
responsible.
Make sure you have everything necessary for proper installation (AC 220~240V/50Hz).
1. A GROUNDED ELECTRICAL OUTLET is required. See Electrical Requirements (See page 11).
2. CONDENSING SYSTEM - Condenses, processes and circulates hot and humid air internally using an
internal heat condenser.
SEE DRYER EXTERIOR

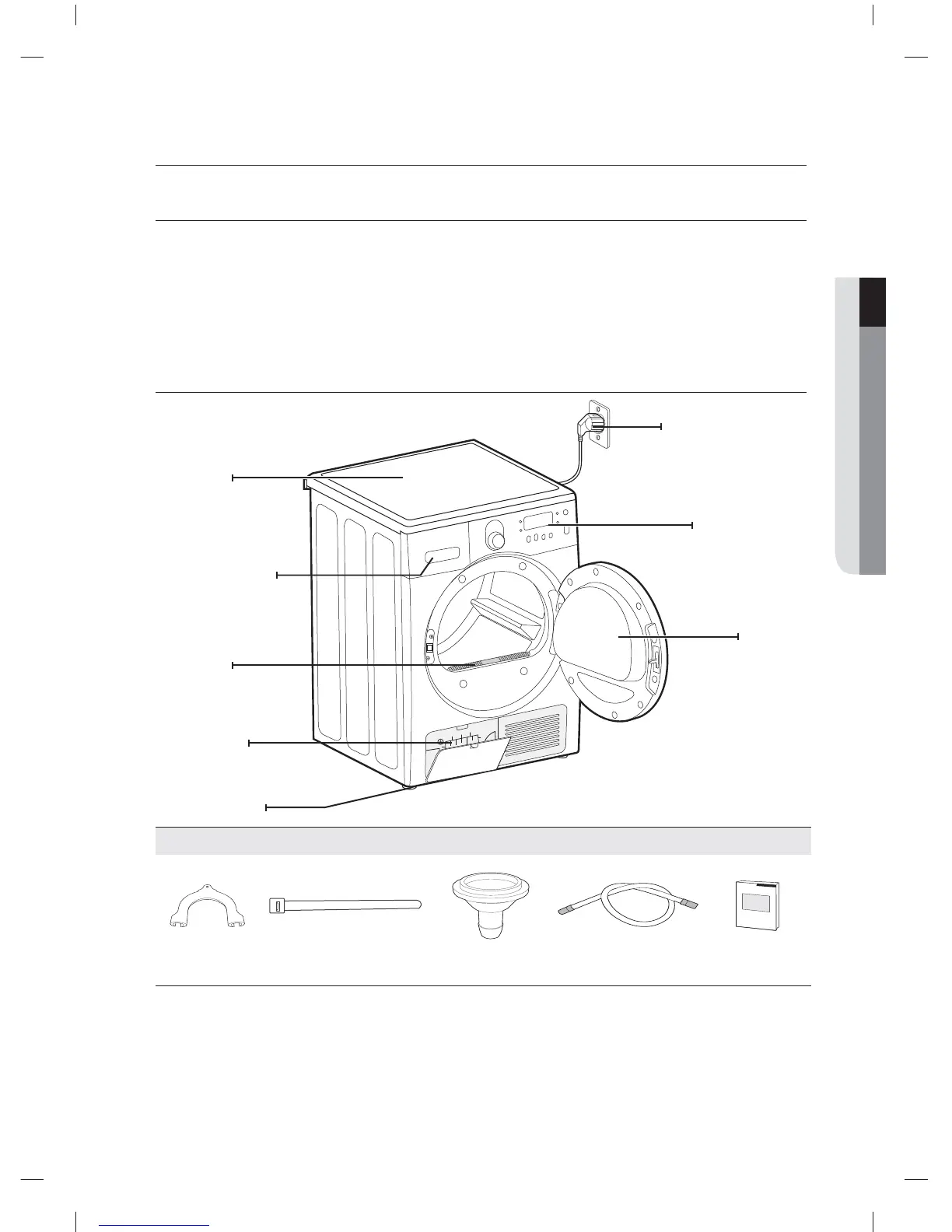

Parts
Hose guide
Cable tie
Hose connector
Long drain hose(2m) Manual book
01 INSTALLING YOUR DRYER
Water tank
Control panel
Door
Levelling feet
Work top
Plug
Filter case
Condenser
