COLOR CCD CAMERA User’s Manual
9
COLOR CCD CAMERA User’s Manual
8
• If the camera is exposed to spotlight or object reflecting strong light, smear or
blooming may occur.
• Please check that the power satisfies the normal specification before connecting
the camera.
Notes
Precautions
Components and Accessories
Do not expose the camera to
radioactivity.

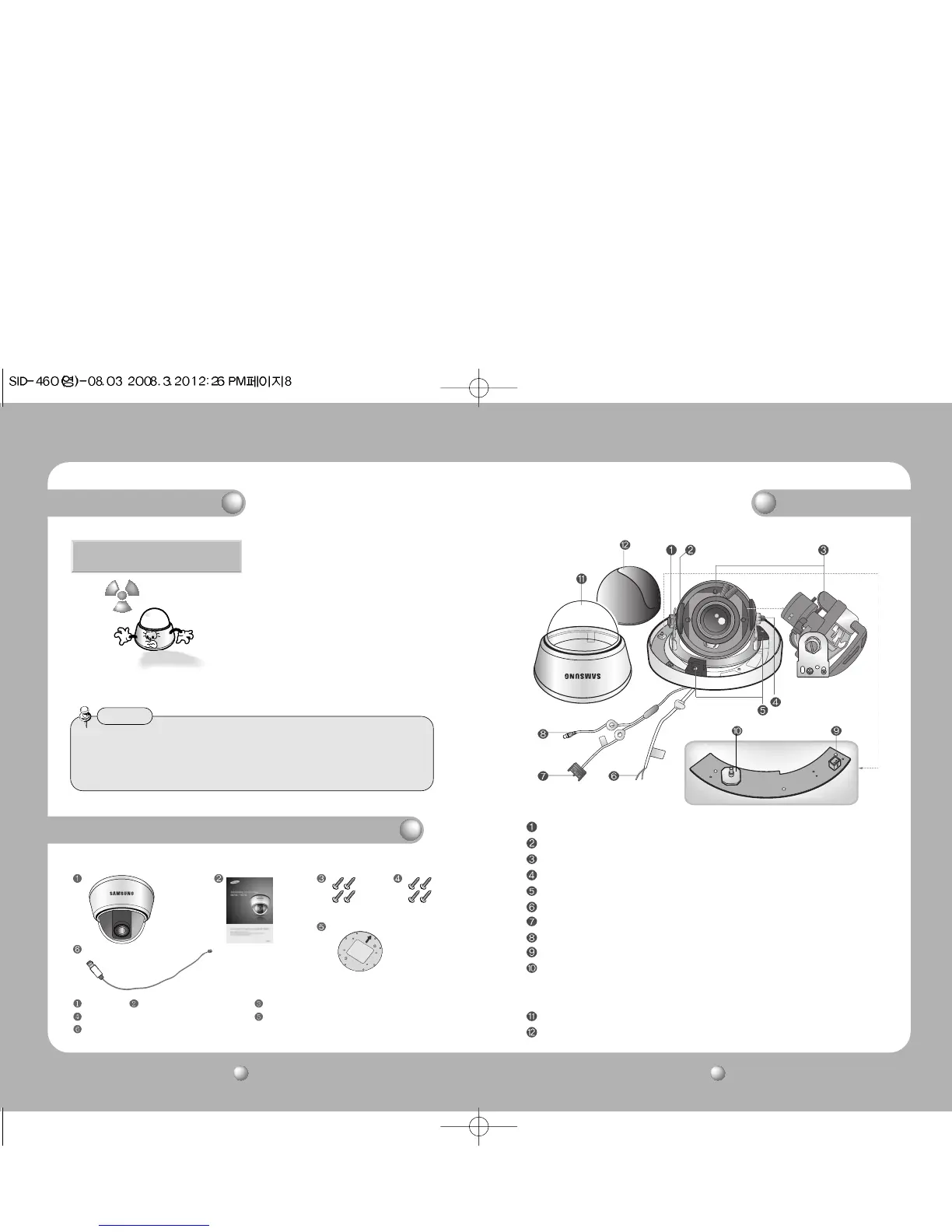

Overview
SID-460 Instruction Manual M4 Tapping Screw 4EA
M4 Machine Screw 4EA Adapter plate
Installation Video Output Cable
Pan Base : control panning angle of camera
Rotate Base : control rotating angle of camera
X2.5 Vari-focal Lens Module
Rotate Base Holding Screw : fix rotated position
Pan Base Holding Screws (Color : Silver) : fix panned position
RS-485 Control Cable : The detailed description refers to p14
Power Input Connector
Video Output Jack
Video Output Terminal to Monitor
Function Setup Button
display the menu on the screen and move the cursor to four directions to confirm
status or after changing a selected item.
Dome Cover
Shield Case
If it is exposed to radioactivity, For heated CCD, it
will be out of order.
