Samsung SNV-5084 User Manual

English _17
● INSTALLATION & CONNECTION

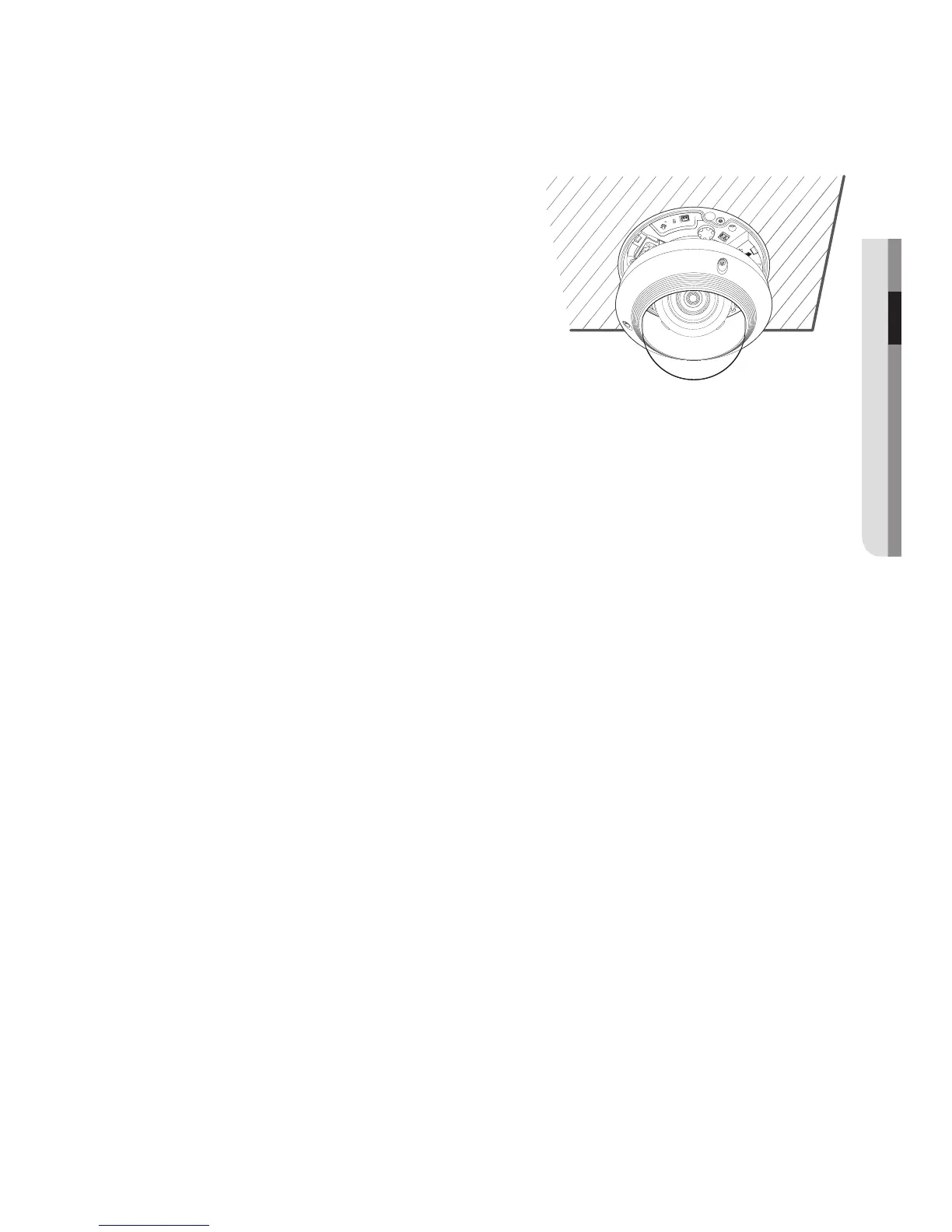

Installation
1. Drill a hole (diameter : 6mm, depth : min
55mm) of the case bottom and insert the
provided plastic anchor to the end.
2. Fit the bottom hole to the anchor hole and
insert and fix the taping screw (M4.5xL50).
3. Connect and arrange the necessary cables
lest that they should be damaged or twisted
while installing the camera.
4. Adjust the lens in a desired direction by
referring to the “Adjusting the monitoring direction for the camera" section. (page
24)
5. Close the dome cover.
`
To ensure waterproofing, tight up the fixing bolts using the L-wrench and drill bit.
AC 24V / DC 12V
RESET
VIDE O
F
W
AF
T
N
+ -
AC 24V / DC 12V
RESET
VIDE O
F
W
AF
T
N
+ -
AC 24V / DC 12V
RESET
VIDE O
F
W
AF
T
N
+ -
AC 24V / DC 12V
RESET
VIDE O
F
W
AF
T
N
+ -
