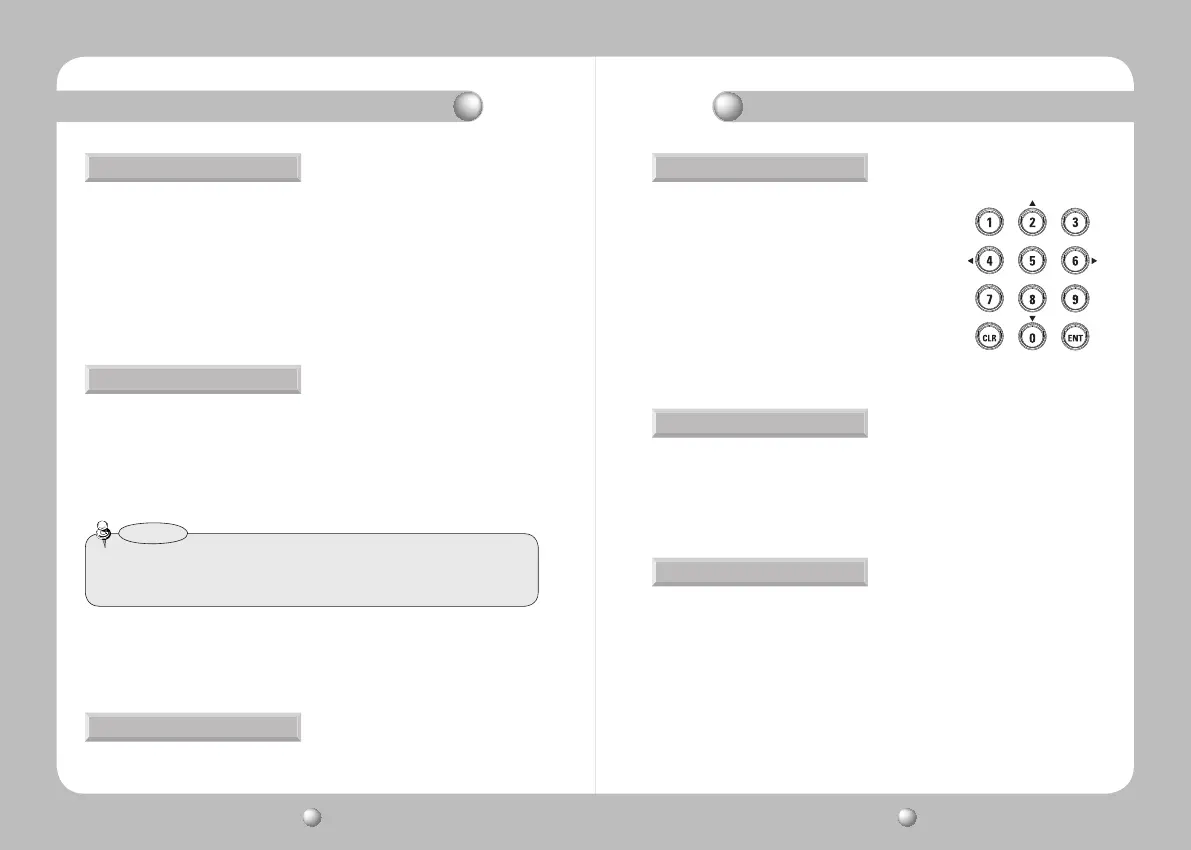

PTZ CONTROLLER User Guide
12
PTZ CONTROLLER User Guide
13
■
Controls the camera’s Aux output operation.
①
AUX ON : Press the AUX button to turn AUX on.
②
AUX OFF : Hold down the AUX button for 2 seconds to turn AUX off.
■
The Swing function commands the camera to move between 2 selected locations,
monitoring the route.
■
Shows the camera’s OSD menu on the monitor screen.
■
Locks out the controller.
■
The Group command recalls a ground of multiple preset locations in sequence.
■
Pressing the A/F button uses One-Shot AF.
Controlling PTZ Camera
7. SWING
8. Group
9. A/F
①
Press the SWING button.
②
Press Number 1 or 2 to activate the Swing mode.
- Number 1 : Commands the camera to pan while moving between 2 locations.
- Number 2 : Commands the camera to tilt while moving between 2 locations.
• To pause Swing, move the joystick.
①
To enter the OSD menu, press the OSD button. To exit the
menu, hold down the OSD button. (SAMSUNG-T Protocol)
②
ENT Button :
Performs the Enter function in the OSD menu.
③
CLR Button : Performs the Esc function in the OSD menu.
④
To move the menu cursor upward, downward, leftward, or
rightward, use the joystick. Certain protocols (SAMSUNG-E,
Panasonic,
etc.) do not support using the joystick to
move the
menu cursor. Instead, they require pressing a number button
while holding down the FN button. (Number 2, 4, 6, 8
Buttons)
①
To lock out, hold down the LOCK button.
②
To unlock, enter the 4-digit password. (Default Password: 0000)
①
Enter the group number.
②
Press the GROUP button to activate the Group mode.
• To pause the Group mode, move the joystick.
• In order to use Swing and Group modes, you must set up the modes in the camera’s OSD menu
prior to actual operation.
• The Swing and Group modes only support the Samsung Techwin SAMSUNG-T protocol.
Notes
Controlling PTZ Camera
10. OSD
11. Lock
12. AUX
