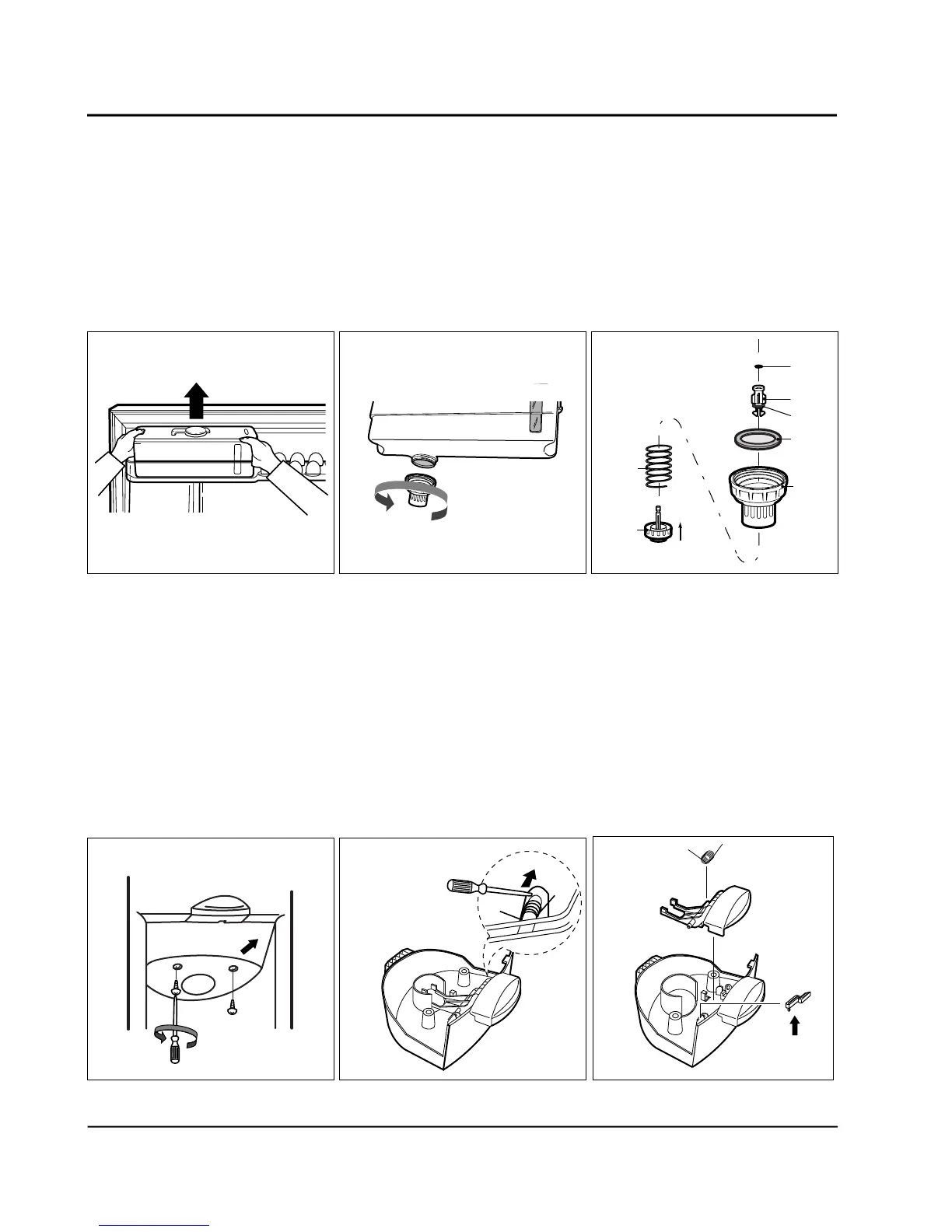

11-7 Disassembling method and order of water dispenser
50 Samsung Electronics
part 5
part 2
part 3
part 7
part 1
part 4
part 6
1. Disassembling method and order of cock part
1-1. Open the door and detach the water tank. Throw away waters in the tank.
1-2. Turn the cock on the bottom of the water tank to counterclockwise and apart.
1-3. Push part 6 to arrow direction and apart part 2 then part 5,6 automatically aparted. Puch the
locking point to arrow direcion to apart part 3.
1) Be careful not to damage the parts 1,2,5,7 ( It may cause a leak of water. )
2) Assembling is reverse of the disassembling order.
2. Disassembling method and order of lever
2-1. Close the door and turn the screw of the bottom of cover dispenser to counterclockwise using (+)
driver and pull out to arrow direction and apart the cover.
2-2. Release locking point of lever dispensor using (-) driver to the arrow direction and apart spring
and lever dispenser.
2-3. Push locking point using (-) driver and pull out key-lock to upside then apart dispenser locking
device.
2-4. Assembling is reverse of the disassembling order after inserting the spring to lever shaft.
