7-5 Temperature control

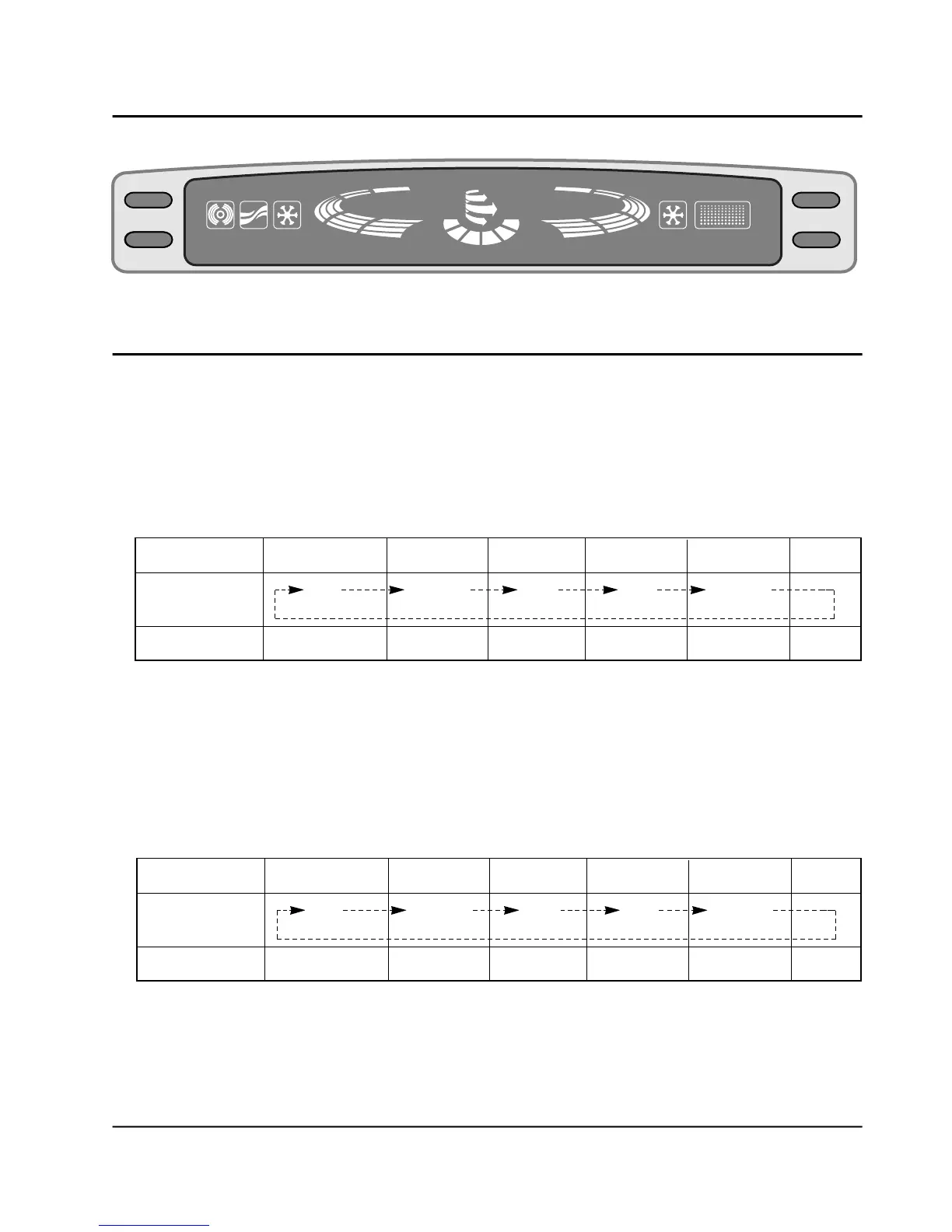

1) Freezer temperature control
1. It consists of five steps as follows and selected by one button.
Mid Æ Mid.High Æ High Æ Low Æ Low.Mid
2. It is circulated and displayed one by one by pressing the button.
3. At first power on it is selected ”Mid”
Category
Indicator Lamp
Reference Temp.
Initial power on
Mid
–18˚C –19.5˚C
Mid·High
Pressed once
–21˚C
High
Pressed twice
–15˚C
Low
Pressed 3 times
–16.5˚C
Low·Mid
Pressed 4 times Remark
2) Temperature control in the refrigerating compartment
1) Select the 5 stages of ‘Mid’–‘Mid · High’–‘High’–‘Low’–‘Low · Mid’ with a button.
2) Whenever the temperature control button of refrigerator is pressed, it continues of light from
‘Mid’–‘Mid · High’–‘High’–‘Low’–‘Low · Mid’.
3) When power turns on “Mid” is automatically selected.
Category
Indicator Lamp
Reference Temp.
Initial power on
Mid
3˚C 1˚C
Mid·High
Pressed once
–1˚C
High
Pressed twice
6˚C
Low
Pressed 3 times
4.5˚C
Low·Mid
Pressed 4 times Remark
DOOR
ALARM
DOOR
FREE
QUICK
FRE.
QUICK
FRE.
FRE, CONTROL
HI-MOISTURE
LO
HI
LO
HI
QUICK REF.
REF.
CONTROL
QUICK REF.
FRE
CONTROL
