E.

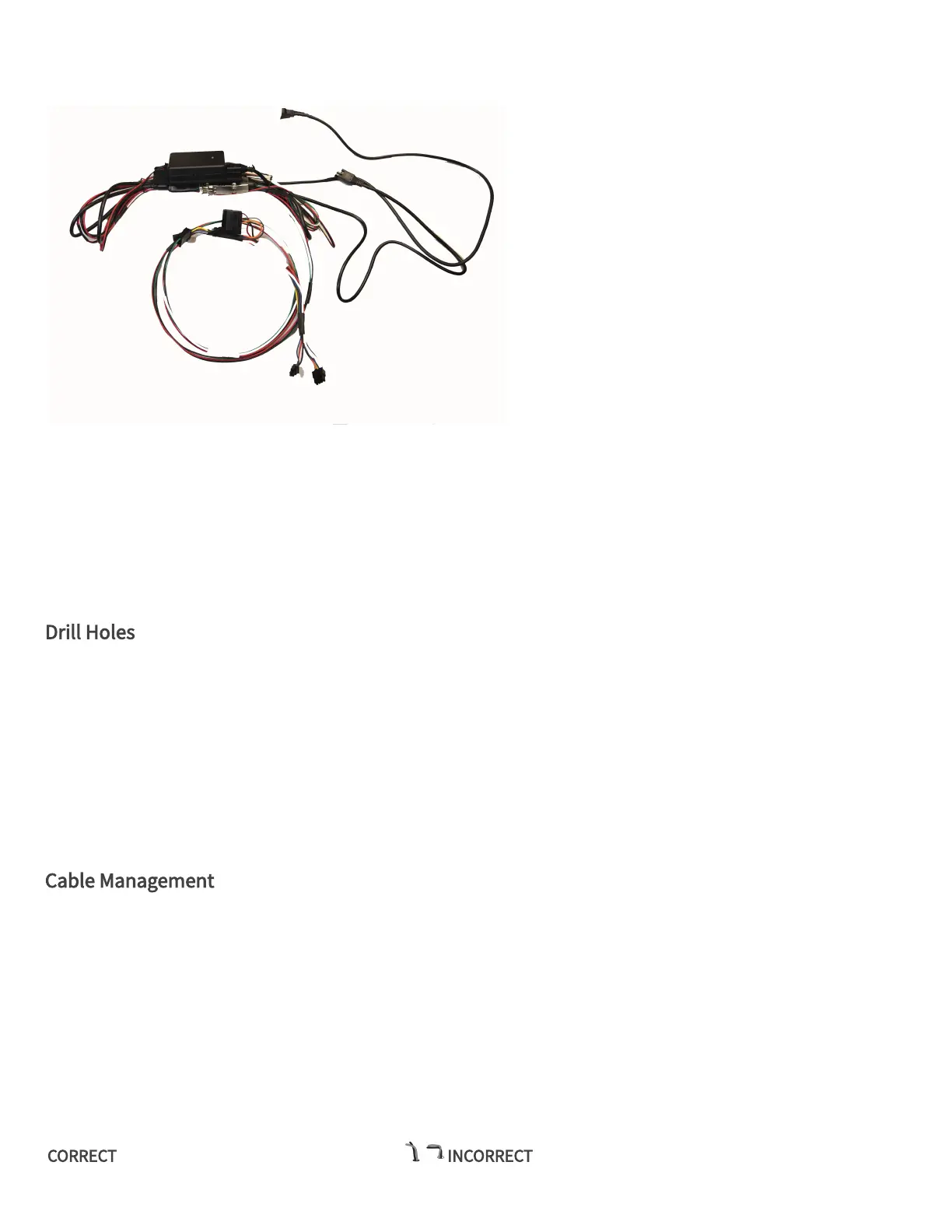

General Guidelines
Drill Holes
1. Do not drill into the tablet or the dock unit. This will void the warranty.
2. Capture all drill chips during drilling. Do not allow chips to fall onto equipment, furnishings, etc.
3. De-burr all drill holes on both sides of drilled surface.
4. All drill holes must have a rubber grommet or similar anti-chafing system installed to protect cable assemblies (e.g.
plastic conduit).
5. Seal all penetration drill holes which may pass rain water.
Cable Management
1. Strain relieve and support all cable installations.
2. Avoid sharp bends and tight radius installations of cables.
3. Avoid moving components (e.g. doors, steering shas, handles, fans, etc.).
4. Provide an adequate “Service Loop” (i.e. “cable slack”) to allow for servicing of equipment.
5. Avoid routing cables through doors, windows, and other pinch points.
6. Avoid routing cables where personnel may snag or damage the cabling.
7. Avoid routing antenna cables near radio and PA equipment.
CORRECT INCORRECT
