6. Wiring Diagram
6-3. Connector Functions
Connector Functions
CN201  IP CNM802
Supply main power and dimming signal from IP board to Main Board.
CN1302/CN1303_HD  T-CON CNF1
The LVDS signal transfered from Main Board to Panel.

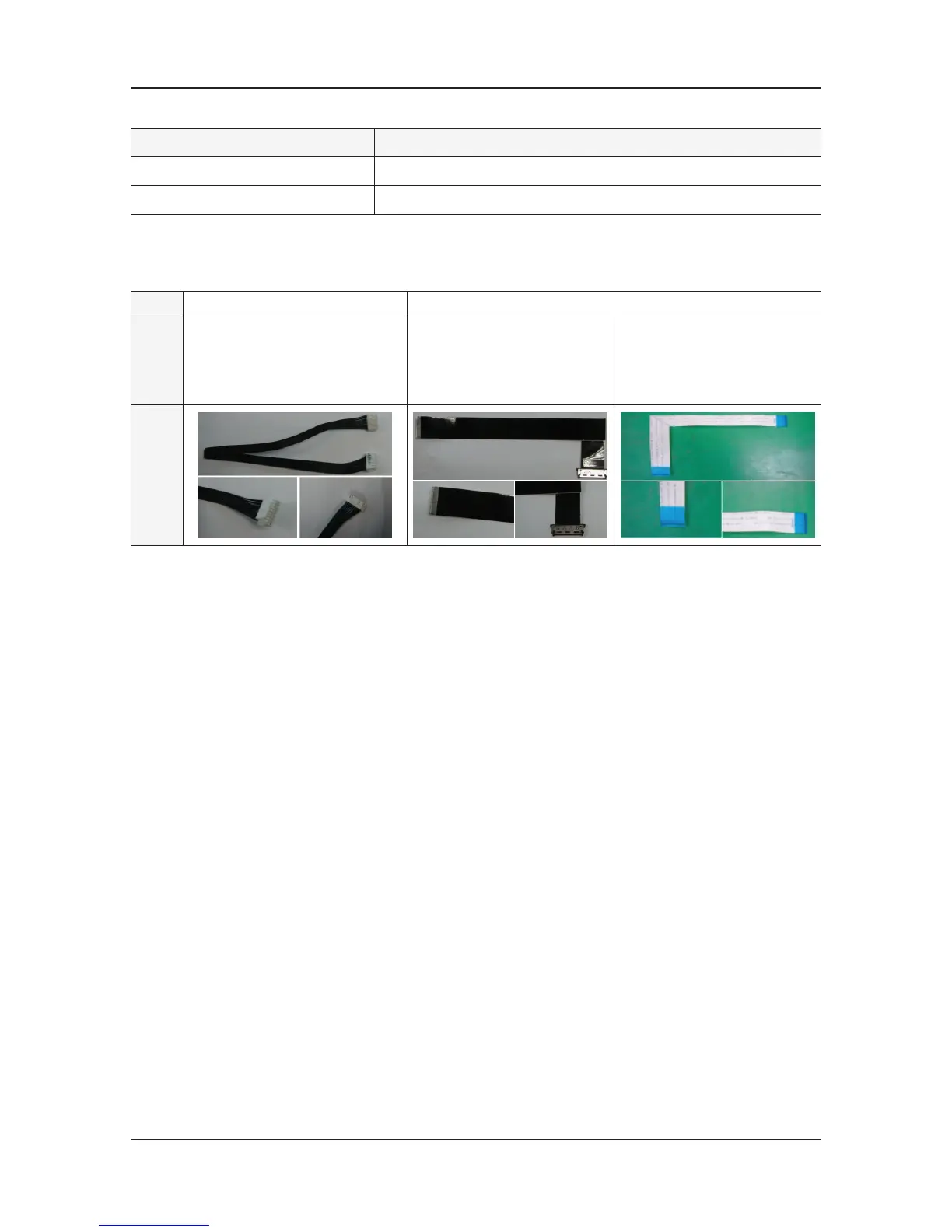

6-4. Cables
Use LEAD (Main-IP 18P) LVDS (Main - TCON)
Code
32" C5000 : BN39-01267F (350mm)
37" C5000 : BN39-01267D (450mm)
40" C5000 : BN39-01267C (300mm)
46" C5000 : BN39-01267B (150mm)
32" C4000 : BN39-01267F (350mm)
32" C5000 : BN96-13171E
37" C5000 : BN96-13171F
40" C5000 : BN96-13171G
46" C5000 : BN96-13171H
32" C4000 : BN96-12469M
