Samsung VRF DVM S2 - Outdoor Unit Dimensional Drawings - High Capacity; Dimensions and Pipe Connections (AM160;180 AXVDGH;EU)

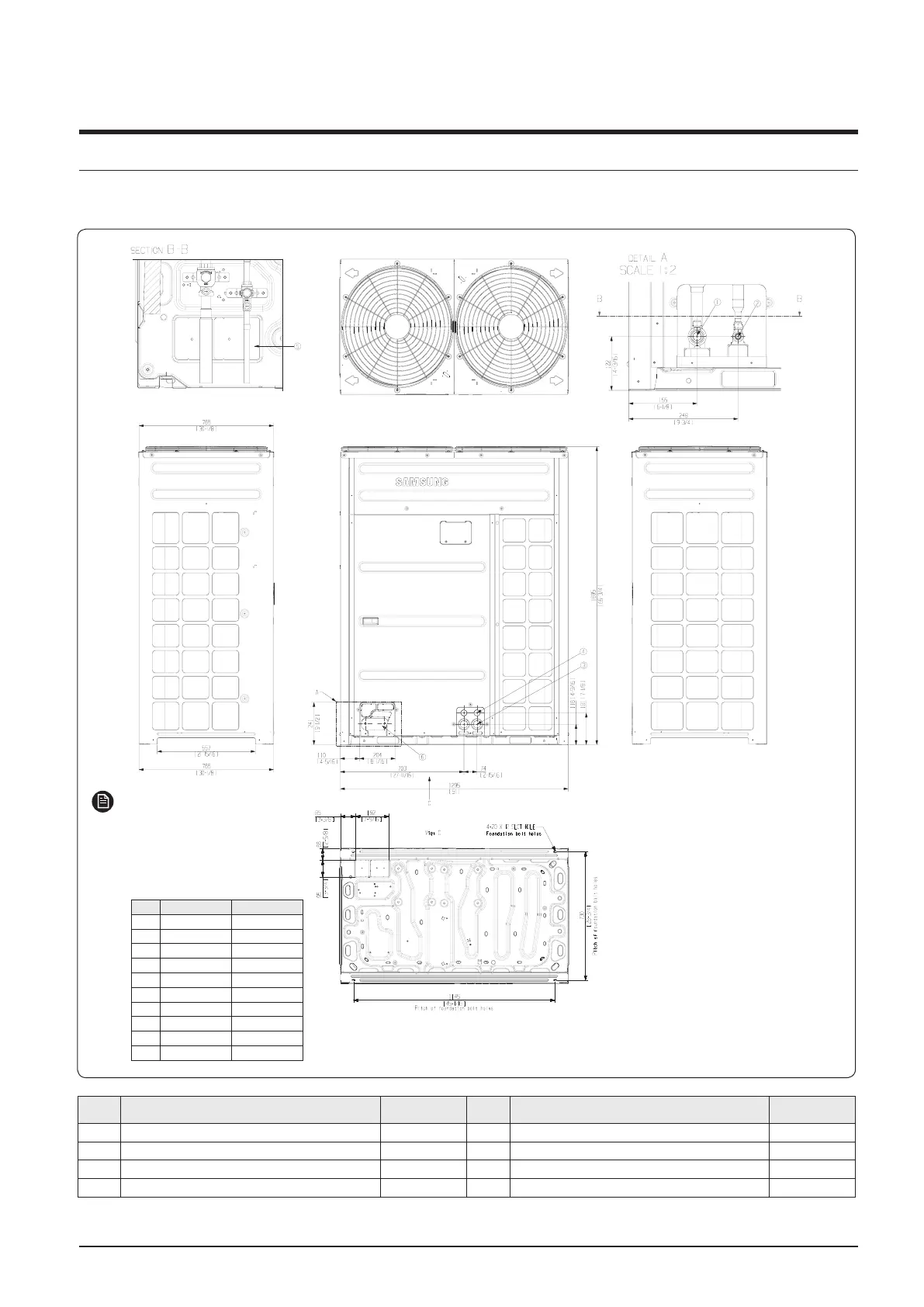

4. Dimensional Drawing
Outdoor unit
• AM160AXVDGH/EU, AM180AXVDGH/EU
Unit: mm (inches)
NOTE
1 Detail A and SECTION B-B indicate
the
dimension after fixing the attached piping.
2 Item 3-6: Knock-out hole
3 View C indicate the dimension of
knock-out hole (bottom)
4 Pipe [Ø, mm(inch)]: Brazing connection
HP Liquid pipe Gas pipe
8 9.52(3/8) 19.05(3/4)
10 9.52(3/8) 22.22(7/8)
12 12.70(1/2) 28.58(1-1/8)
14 12.70(1/2) 28.58(1-1/8)
16 12.70(1/2) 28.58(1-1/8)
18 15.88(5/8) 28.58(1-1/8)
20 15.88(5/8) 28.58(1-1/8)
22 15.88(5/8) 28.58(1-1/8)
24 15.88(5/8) 34.92(1-3/8)
26 19.05(3/4) 34.92(1-3/8)
NO Table of descriptions Remark NO Table of descriptions Remark
1 Gas Ref.pipe See NOTE 4. 5 Knock-out Hole for Ref.Piping (bottom)
2 Liquid Ref.pipe See NOTE 4. 6 Knock-out Hole for Ref.Piping (front)
3 Power wiring conduit Ø44
4 Communication wiring conduit Ø34
