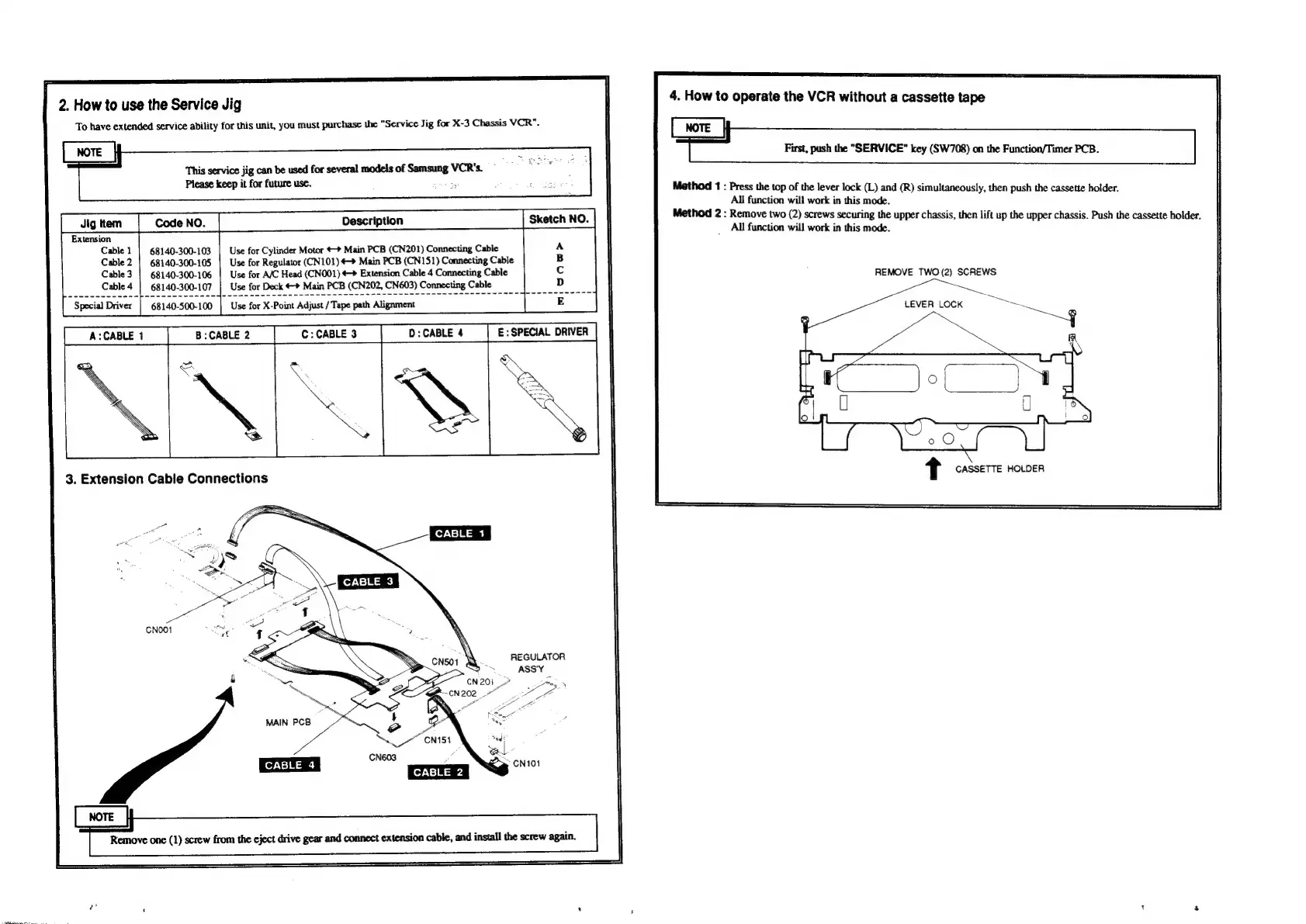

2. How to use the Service Jig
To
have
extended
service
ability
for
this
unit,
you
must
purchase
the
"Service
Jig
for
X-3
Chassis
VCR”.
Extension
Cable 1
Cable 2
Cable 3
Cable 4
Special Driver
A:CABLE 1
Please keep it for future use.
This
service
jig
can
be
used
for
several
models
of
Samsung
VCR's.
68140-300-103
68140-300-105
68140-300- 106
68140-300-107
68140-500-100
Description
Use for Cylinder Motor €4+ Main PCB (CN201) Connecting Cable
Use for Regulator (CN101) € Main PCB (CN151) Connecting Cable
Use for A/C Head (CN001) <-> Extension Cable 4 Connecting Cable
Use for Deck € Main PCB (CN202, CN603) Connecting Cable
Use for X-Point Adjust / Tape path Alignment
B: CABLE 2 C: CABLE 3 D: CABLE 4
KS
REGULATOR
ASS'Y
Method 1 : Press the top of the lever lock (L) and (R) simultaneously, then push the cassette holder.
All function will work in this mode.
Method 2 : Remove two (2) screws securing the upper chassis, then lift up the upper chassis. Push the cassette holder.
__ All function will work in this mode.
REMOVE TWO (2) SCREWS
