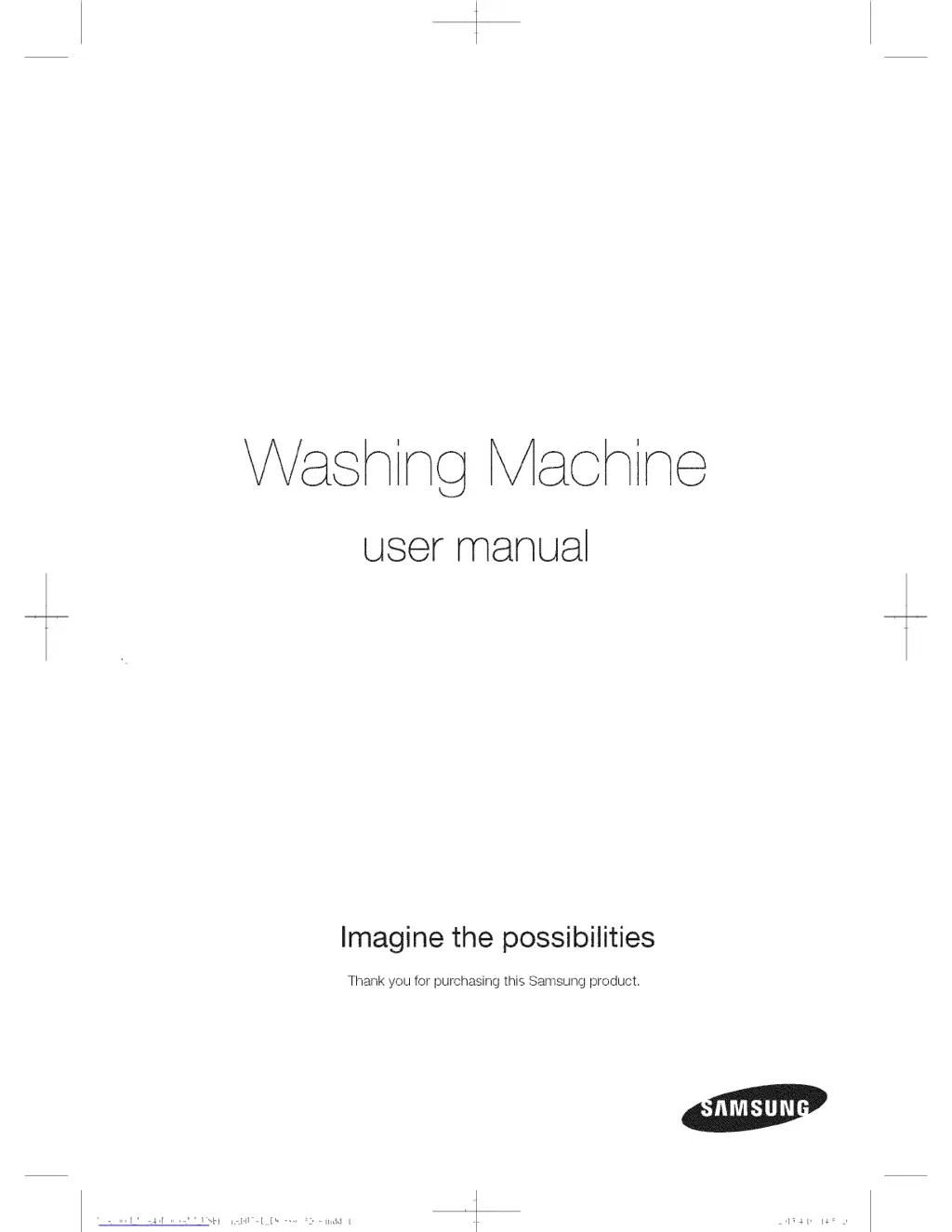

Samsung WA40J3000AW - User Manual

Other manuals for Samsung WA40J3000AW

Service Manual35 pages

Questions and Answers

M
Mark LiJul 27, 2025
Why is my Samsung WA40J3000AW Washer showing a water supply code?
- M
  Meghan FarleyJul 27, 2025
  A water supply code on your Samsung Washer can occur if foreign material is entering the water supply valve, the water supply valve terminal is disconnected, the warm water and rinse connectors are wrongly connected, or the PCB terminal from the drain hose to the detergent drawer is not connected. To resolve this, check if the water supply is blocked due to an alien substance in the valve or check if the water is supplied to the machine.
M
maynardmichelleJul 31, 2025
What does a door code on my Samsung Washer mean?
- A
  Angela CoxJul 31, 2025
  A door code on your Samsung Washer indicates a problem with the door locking mechanism. This can be caused by a deformed door hook causing a switch contact issue, the door being pulled by force, pressure differences during a boil wash, an incorrectly connected or broken door lock switch terminal, an electric wire leakage, or a main PCB fault. In any of these cases, check whether the door lock switch unit is inserted.
J
James LawsonAug 4, 2025
How to troubleshoot the water level sensor on a Samsung Washer?
- E
  Ethan SmithAug 4, 2025
  To troubleshoot the water level sensor on your Samsung Washer, check the water level sensor terminal connections. The issue may be caused by a damaged hose, a clogged hose, a folded hose, too much lubricant, a disengaged hose, a part fault, or a disengaged water level sensor terminal. If these are not the cause, the Main PBA may be faulty, and you should replace the PBA.
D
Donald LamAug 8, 2025
What does a temperature sensor code mean on my Samsung WA40J3000AW Washer?
- D
  Daniel WilliamsAug 8, 2025
  A temperature sensor code on your Samsung Washer can indicate an issue with the washing heater sensor, such as a contact problem or a temperature sensor fault. It could also mean the connector is connected incorrectly or is disconnected. Another cause could be the water level sensor operating without water, leading the temperature sensor to detect an excessively high temperature and shut off the power. If the Thermistor is defective, replace it.
A
adamstylerAug 12, 2025
How do I troubleshoot a motor driving code and TMR sensor code on my Samsung WA40J3000AW?
- C
  Crystal HillAug 13, 2025
  A motor driving code and TMR sensor code on your Samsung Washer can be caused by various issues: a disconnected PBA connector terminal, a disengaged motor spin net, a damaged motor internal coil, a disconnected TMR sensor terminal, foreign material inside the motor, motor overload, a weak motor driving code from the PBA, erroneous operating signals from the motor TMR sensor, a disconnected IPM terminal of the main PBA, a displaced DD motor cover, a disconnected PCB housing terminal, a PBA fault, or a DD motor fault. Check the motor connector terminal connections.
D
Destiny LopezAug 17, 2025
Why is my Samsung Washer showing a switch code (main relay code)?
- P
  Patrick BurtonAug 17, 2025
  A switch code (main relay code) on your Samsung Washer may appear if the Power button is pressed continually, a switch is jammed, the sub PBA holding screws are fastened too tight, a button other than the Power button is continually pressed, or there is deformation of an internal plastic injection part. Check whether the Power button or a tact switch is continually pressed. Also, check whether the service PBA holding screws are fastened too tight and, if they are, loosen them a little.
C
Caleb KellyAug 21, 2025
What does communication code mean on Samsung WA40J3000AW?
- M
  Mary MooreAug 21, 2025
  A communication code on your Samsung Washer suggests that signals between the sub and main PBAs are not being sensed. This can be due to communication issues, incorrect or loose connector connections between the sub and main PBAs, or faulty soldering on the sub PBA C/Panel. Check wire connections.

Summary

Safety Information

General Safety Guidelines

Understand safety instructions, symbols, and precautions for washer use.

Installation Safety Precautions

Usage and Cleaning Safety

Installing Your Washer

Location Requirements and Setup

Essential criteria for selecting a location and preparing the installation site.

Connecting Hoses and Leveling

Instructions for connecting water supply/drain hoses and leveling the washer.

Powering and Test Run

Operating Instructions

Loading and Starting Your Washer

Control Panel Overview and Functions

Detailed explanation of the control panel, cycles, options, and features.

Maintaining Your Washer

Troubleshooting

Common Washer Problems and Solutions

Troubleshooting guide for common issues like starting, noise, and stopping problems.

Information Codes and Error Resolution

Understanding and resolving error codes displayed by the washer.

Samsung WA40J3000AW Specifications

General

Drum capacity	- kg
Spin-drying class	-
Maximum spin speed	- RPM
Noise level (wash)	- dB
Load balancing system	No
Number of washing programs	8
Self-cleaning	Yes
Door hinge	Up
Display type	LED
Loading type	Top-load
Product color	White
Appliance placement	Freestanding
Package depth	787.4 mm
Package width	749.3 mm
Package height	1181.1 mm
Package weight	58967 g
Annual energy consumption washing	267 kWh
Energy consumption washing per cycle	- kWh
