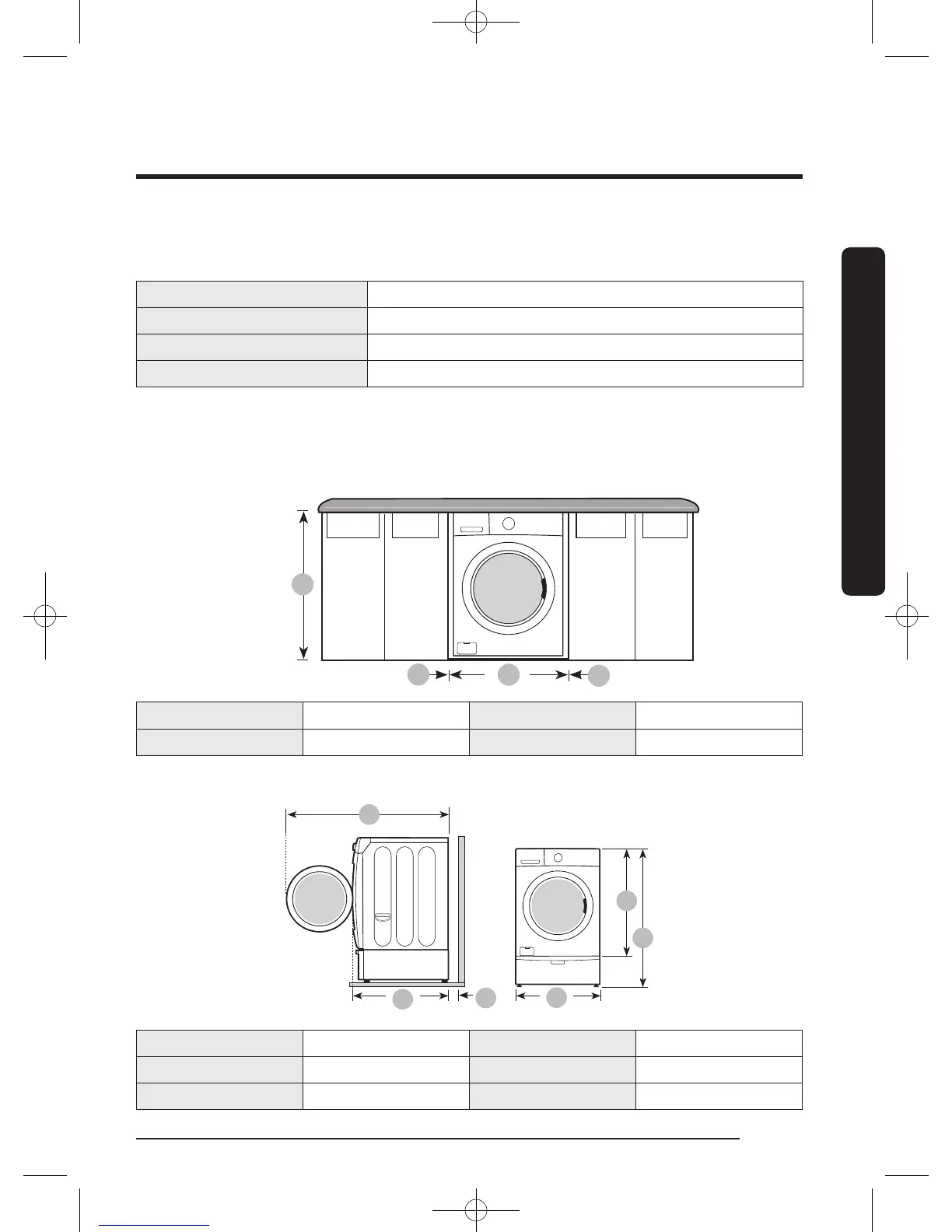

Installation
English 17
Alcove or closet installation
Minimum clearance for stable operation:
Sides 1 in. (25 mm)
Top 17 in. (432 mm)
Rear 5.9 in. (150 mm)
Front 2 in. (51 mm)
If both the washer and a dryer are installed in the same location, the front of the alcove or
closet must have at least a 72 in² (465 cm²) unobstructed air opening. Your washer alone
does not require a specic air opening.
Undercounter installation
A
B
D
C
A 39.6 in. (1006 mm) C 27 in. (686 mm)
B 1 in. (25 mm) D 1 in. (25 mm)
Installation on a pedestal
A
B
D
E
F
C
A 54.6 in. (1386 mm) D 27 in. (686 mm)
B 34 in. (864 mm) E 38.7 in. (984 mm)
C 5.9 in. (150 mm) F 53.4 in. (1356 mm)
WF45K6500AV_DC68-03665A-01_EN.indd 17 2016/4/1 13:37:07
