Samwon Tech TEMI 300 User Manual

4. Setting Up Parameter in Each Group

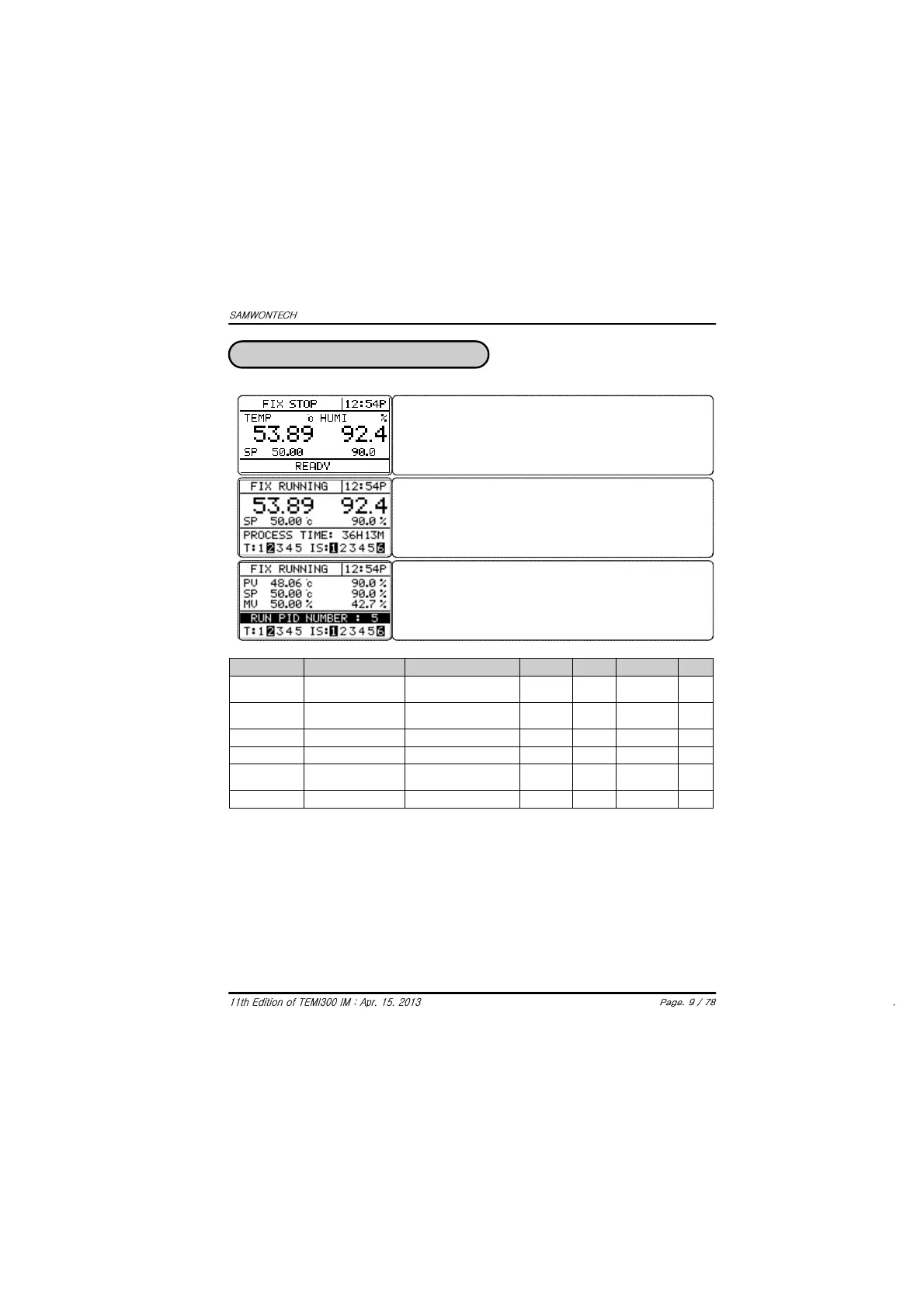

4.1 FIX Mode
FIX Mode is controlling Temperature & Humidity with fixed SP
FIX STOP : Stop state
SP : Set point (Setting by “SET” key)
READY : Ready to running
Start running by “RUN/STOP” key
FIX running 1st screen
FIX RUNNING : Fix running state
PROCESS TIME : Running time
T : State of ON/OFF
IS : State of Inner Signal
FIX running 2nd screen
PV : Process value of temperature & humidity
MV : Manipulate value
RUN PID NUMBER : Running PID Number
(Display “TEMP, HUMI AUTO TUNING” when the auto tuning)
Symbol Parameter Range Display Unit Default Edit
T.SP
H.SP
P.TM
T.MV
H.MV
R.PID
TEMP SP
HUMI SP
PROCESS TIME
TEMP MV
HUMI MV
RUN PID NUMBER
T.EU(0.0 ∼ 100.0%) T.EU
T.EU
(0.0%)
OAlways
H.EU(0.0 ∼ 100.0%) H.EU
H.EU
(0.0%)
O
When HUMI
OPER=ON
00H00M ∼ 99H59M TIME 00H00M
XAlways
0.0 ∼ 100.0 % 0.0%
XAlways
0.0 ∼ 100.0 % 0.0%
X
When HUMI
OPER=ON
1 ∼ 6 ABS ×
XAlways
