CAUTION
▶ Before carrying out wiring, turn off the power to the controller and check that the
cables to be connected are not alive with a tester or the like because there is a
possibility of electric shock.
▶ The controller must be wired directly from circuit breaker output on inside of
temperature & humidity Chamber for avoid damage of controller or chamber.
Avoid unused terminal for install, it might make damage to system or out of order.
5.3 Power Cable Specification
!
CAUTION
Applicable power source cable : Vinyl insulation cable KSC 3304 0.9~2.0 ㎟

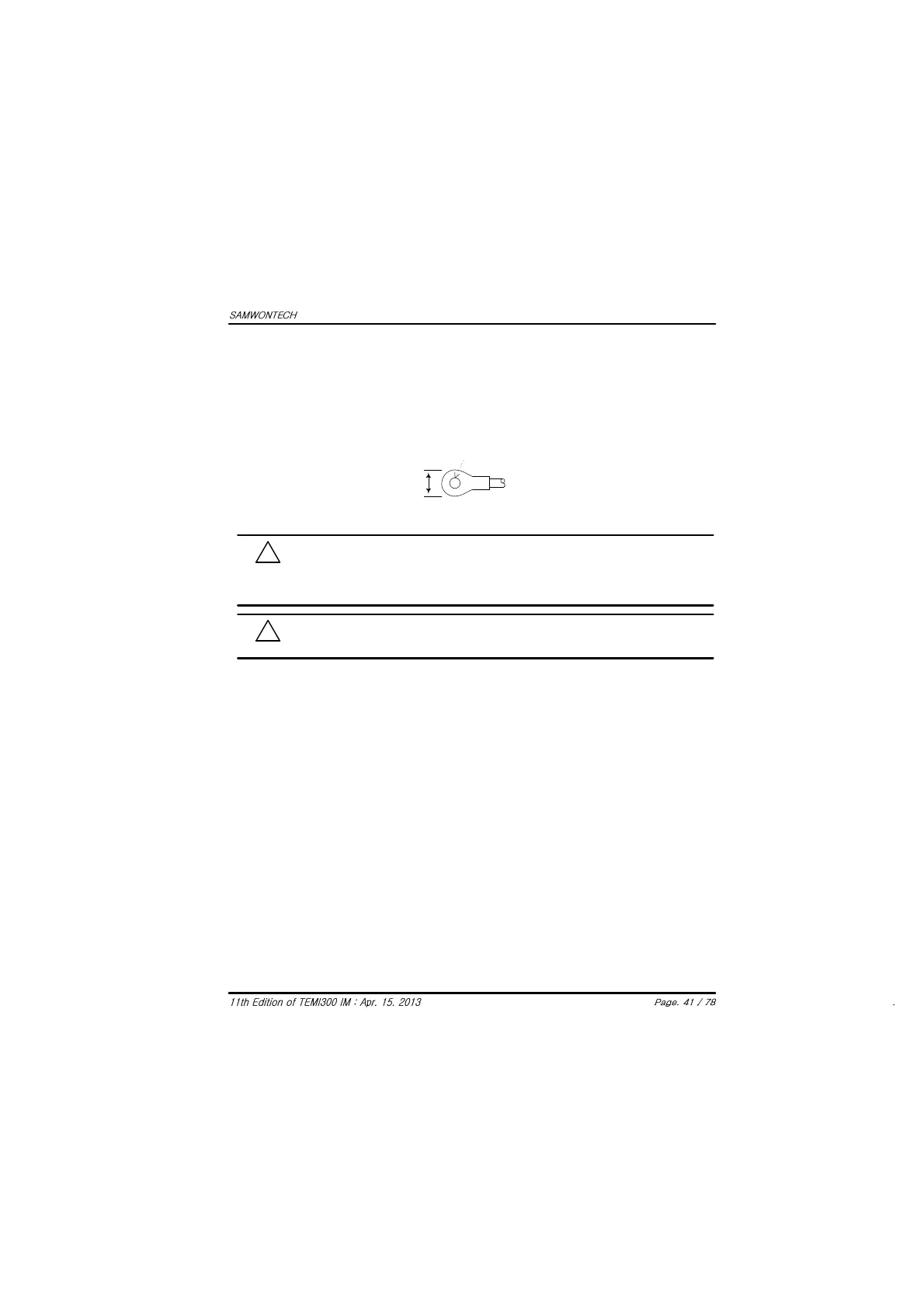

Please use-tightening torque with insulating sleeve for M3.5 screws as shown in the following Figure:
5.4 Terminal Specification
Φ3.0㎜ or
more
5.8㎜ or
less
!
CAUTION
Note: When the screw is connected, its torque does not exceed 0.8 N·m.
