▶ Before starting receiver( or recorder, etc) install/uninstall wiring,
be sure to turn off the TEMI 300 or else you will get an electrical shock.
▶ Before starting ACTUATOR install/uninstall wiring, be sure to turn off
the TEMI300 or else you will get an electrical shock.
▶ When connection, do not mix up the input polarity
▶ Connecting with the wrong polarity can cause the unit to malfunction
▶ For input wiring, use a shielded cable
▶ Ground the shield at one point and grounding circuits as possible
Before starting analog output wiring, be sure to turn off the system or else
you will get an electrical shock

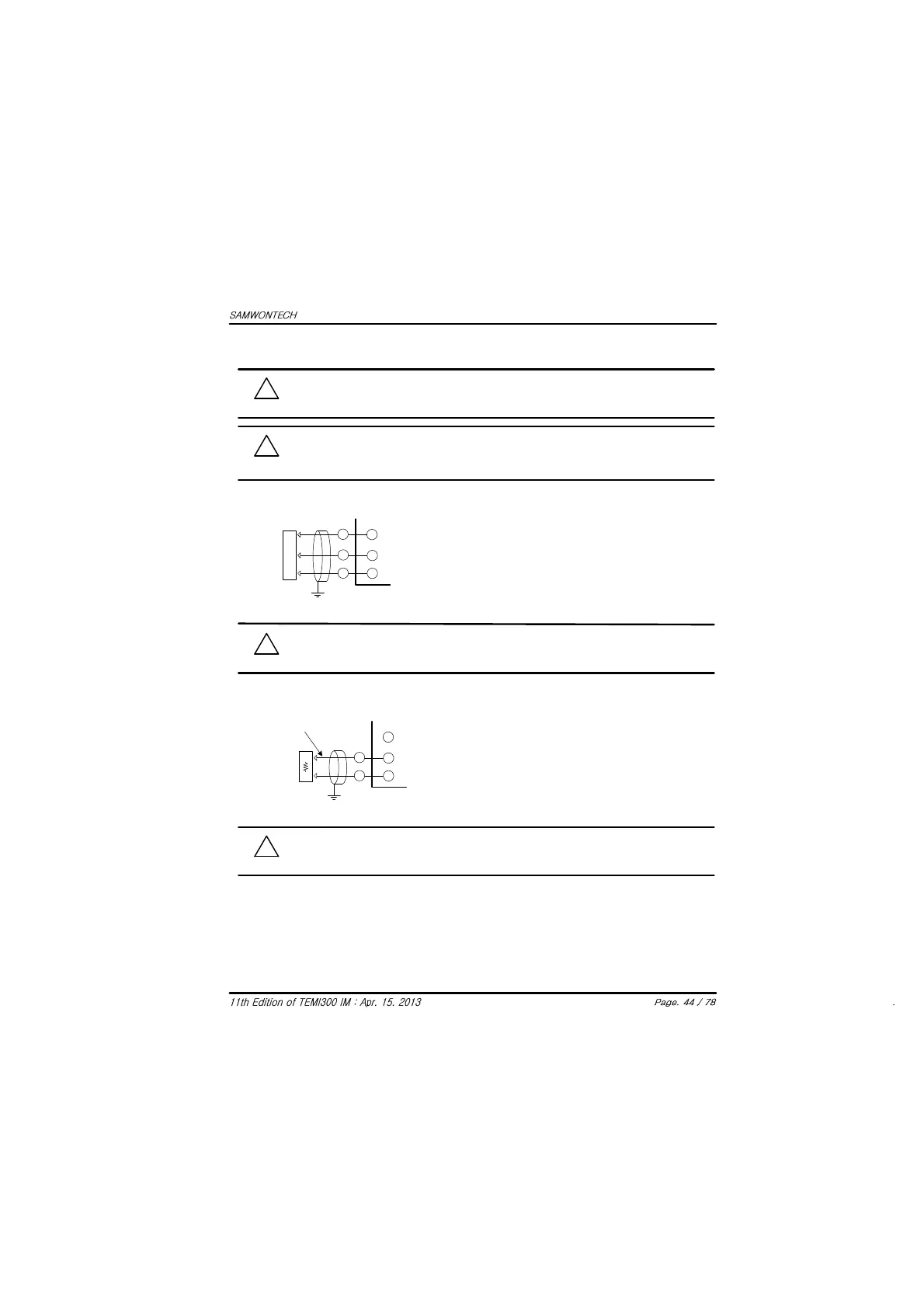

5.8 Analog Output Connection
!
CAUTION
!
CAUTION
(A) SSR
!
CAUTION
!
CAUTION
(B) RETRANSMISSION
-
+
OUT2 +
TEMI300
SHIELD
OUT1,2 -
ACTUATOR
Class 3
Ground
-
+
RET+
TEMI300
SHIELD
RET-
Control
Valve
Class 3
Ground
4∼20mADC,
600 Ω max
SSR : 12VDC min, 600 Ω min
OUT1 +
+
