Before starting analog input wiring, be sure to turn off the system otherwise you might
get an electrical shock.
Before starting analog input wiring, be sure to turn off the system otherwise you might get an
electrical shock.

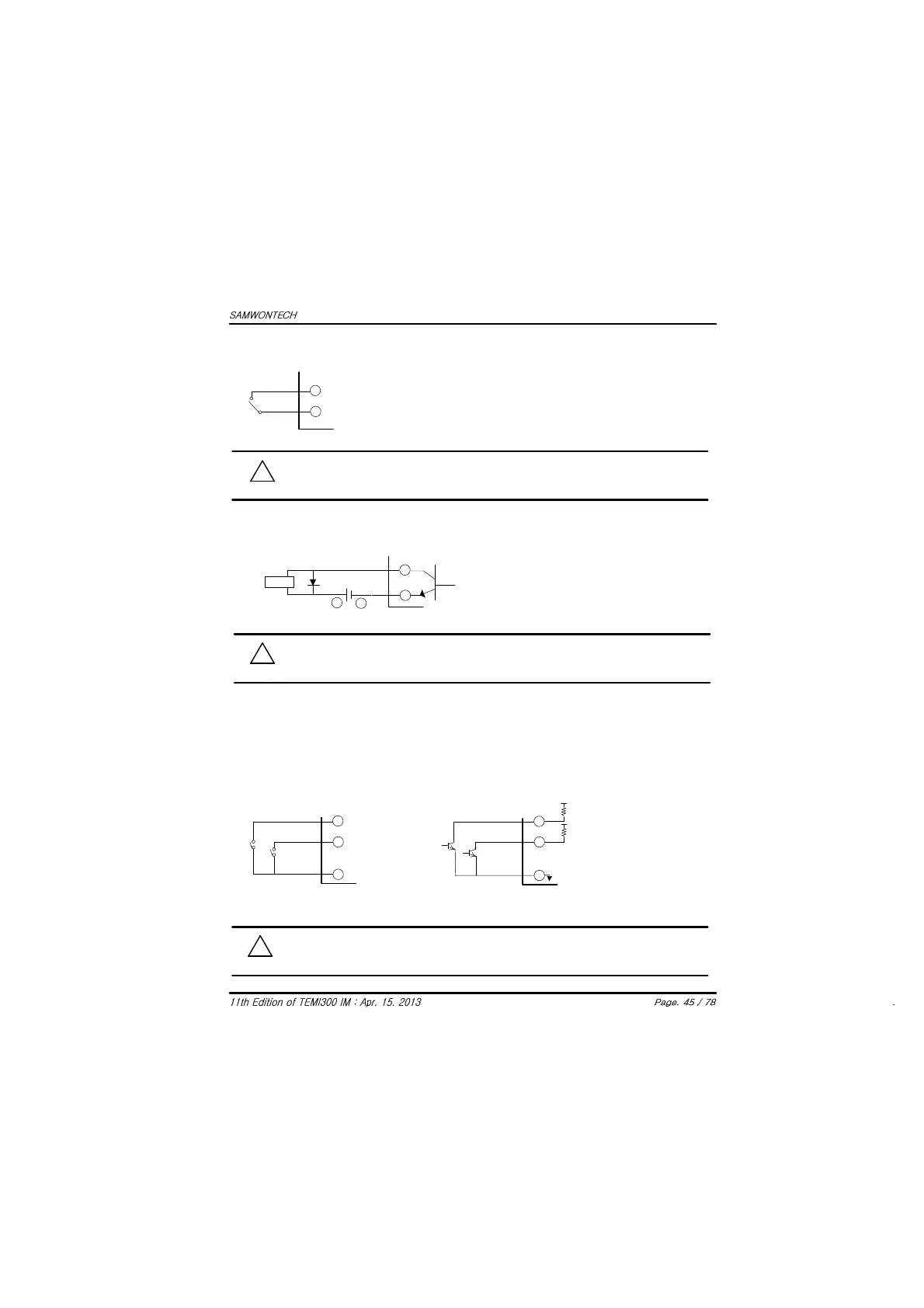

5.11 External Contact Input Connection (DI)
!
CAUTION
▶ For the external contact, use a no-voltage contact (including relay contact) that can operate
appropriately under the terminal voltage for a close contact(approximate.. 5V) and the current for a
opened contact (approximate 1mA).
▶When using an open collector, select one with the 2V or less voltage for the closed contact, and
100μA or less leakage current for the open contact.
▲ RELAY contact input
▲ TRANSISTOR contact input
5.9 External Contact Output Connection (RELAY)
!
CAUTION
COM
TEMI300
RLY_NO
DI_2
TEMI300
DI_COM
DI_1
…
DI_2
TEMI300
DI_COM
DI_1
+5V
…
24V DC 50mA or less
5.10 External Contact Output Connection(OPEN COLLECTOR : DO)
!
CAUTION
load
Power Supply
+
-
TEMI300
