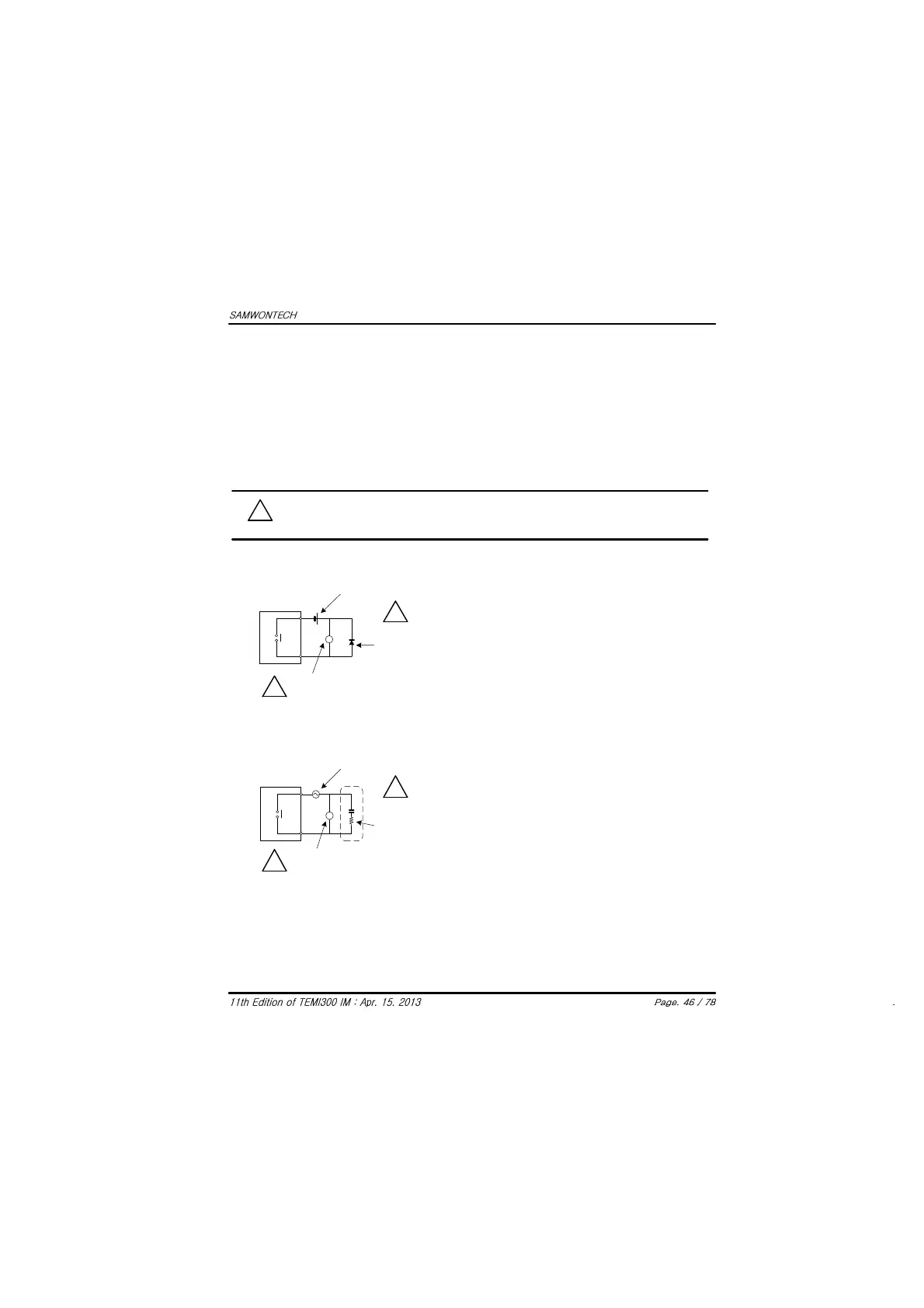

(A) DC RELAY
(B) AC RELAY
RELAY
(Use what a rated Relay Coil is must be less than contact point capacity)
CR FILTER
(Connect Relay Coil socket directly)
Out DC power
Machine
R
!
CAUTION
!
CAUTION
R
Out DC power
RELAY
(Use what a rated Relay Coil is must be less than contact point capacity)
DIODE
(Connect Relay Coil socket directly)
Machine
!
CAUTION
!
CAUTION
If contact capacity is over owns specification, use auxiliary relay for ON/OFF load.
5.12 Use an Auxiliary Relay
!
CAUTION
■ If you INDUCTANCE(L) load like as AUXILIARY RELAY or SOLENOIDE VALVE,
it might make go
to wrong or out of order relay, please make sure insert to parallel circuit with CR FILTER(AC) or
DIODE(DC) by SURGE SUPPRESSOR of avoiding sparks.
■ Recommend CR FILTER
▶ Sung Ho Electronics : BSE104R120 25V (0.1μ+120Ω)
▶ Hana Parts Co. : HN2EAC
▶ Songmi Electric Co., Ltd. : CR UNIT 953, 955 etc
▶ Jiwol Electric Co., Ltd. : SKV, SKVB etc
▶ Shinyoung Communication Co., Ltd. : CR-CFS, CR-U etc
