DO CONFIG  SET KEY

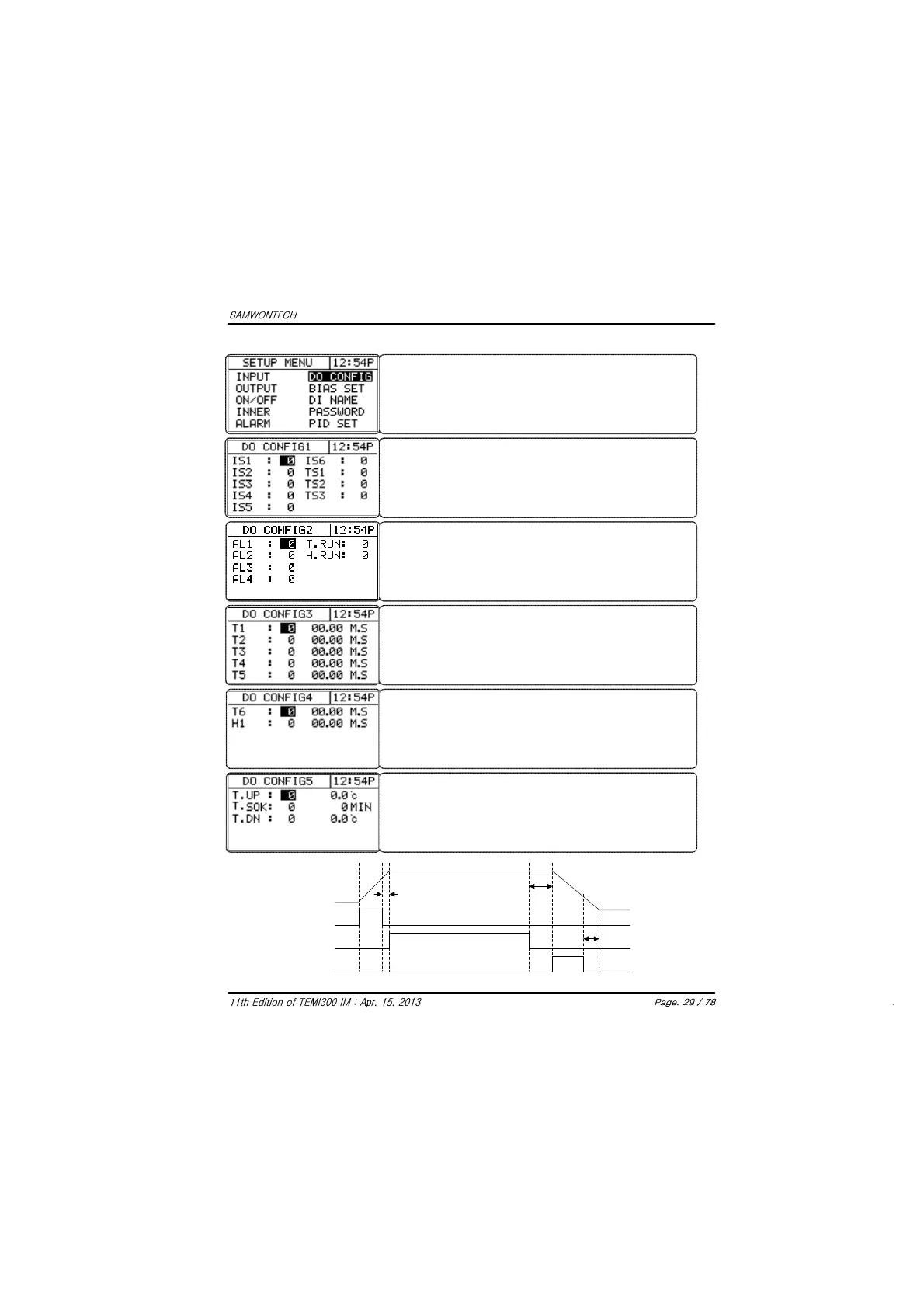

DO CONFIG set (1st page)
Set the relay number (1~12) for IS1∼6 and TS1∼3
DO CONFIG set (2nd page)
Set the relay number (1~12) for ALARM1∼4, T.RUN and H.RUN
4.4.6 DO CONFIG
DO CONFIG set (3rd page)
Set the relay number (1~12) for T1∼T5 RUN also set the delay time
for each items
In case that time set, Delay time applied at every ON case
T1, T2, T3, T4, T5 : Working after delay time
DO CONFIG set (4th page)
Set the relay number (1~12) for T6, H1 RUN also set the delay time
for each items
In case that time set, Delay time applied at every ON case
H1 : Working after delay time
T6 : Working after delay time, after T5 ON
(Figure 9 : Ex. UP, SOAK, DOWN)
UP SOAK
DOWN
T.UP
T.SOK
T.DN
ON
ON
ON
T.UP
set time
T.DN
set time
T.SOK
set time
DO CONFIG set (5th page)
Set the relay number (1~12) for T.UP, T.SOK, and T.DN
T.UP : Output until X℃ [X=TSP - set temperture]
T.SOK : Output until X min [X=SOAK zone time - set time]
T.DN : Output until X℃ [X=T.SP - set temperature]
