53

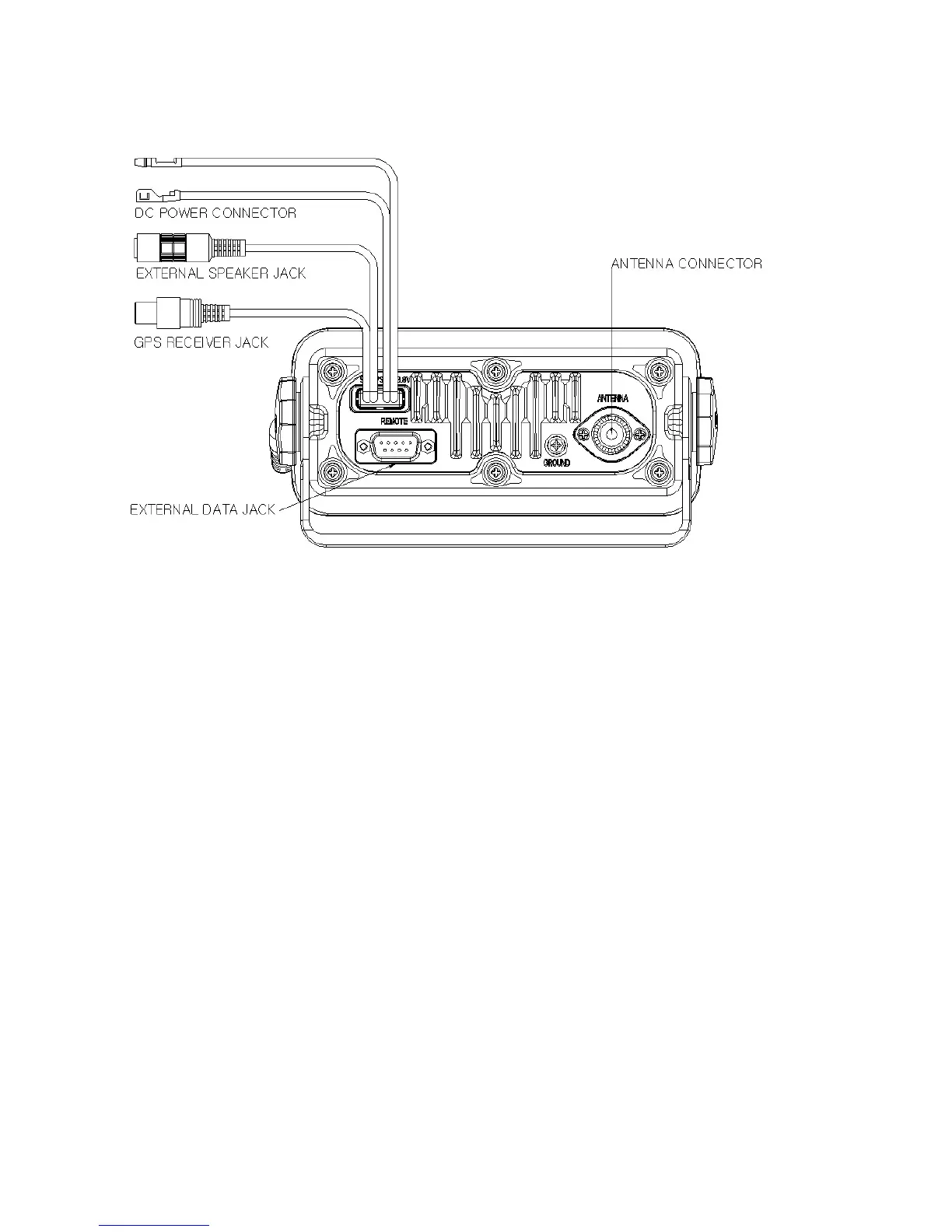

5.4 Cable Connection
Rear part of the unit has connectors, which can be efficiently interfaced with power,
antenna and other cables.
5.4.1 POWER CONNECTION
2P connector located in the rear of the unit is used to supply power, which connects to
Power supply as Red (+) and Black (-).
5.4.2 CONNECTS TO EXTERNAL SPEAKER
The unit has a Speaker built-in and it is possible to set up External Speaker as well.
(8Ω/5W/MAX7W). 1P connector that is located in backward of the unit is a Speaker
Connection Connector.
5.4.3 HOW TO SET-UP ANTENNA
1) STANDARD ANTENNA SET-UP
Most easy method for installation is to set up two or several antennas vertically having
distance more than 4 meters one another.
