S&C Source-Transfer PMH Pad-Mounted Gear With Micro-AT
®
Control
Outdoor Distribution (14.4 kv and 25 kv)
S&C ELECTRIC COMPANY
s
663-503
INSTRUCTION SHEET
Page 8 of 35
August 14, 1995
COMPONENTS — Continued

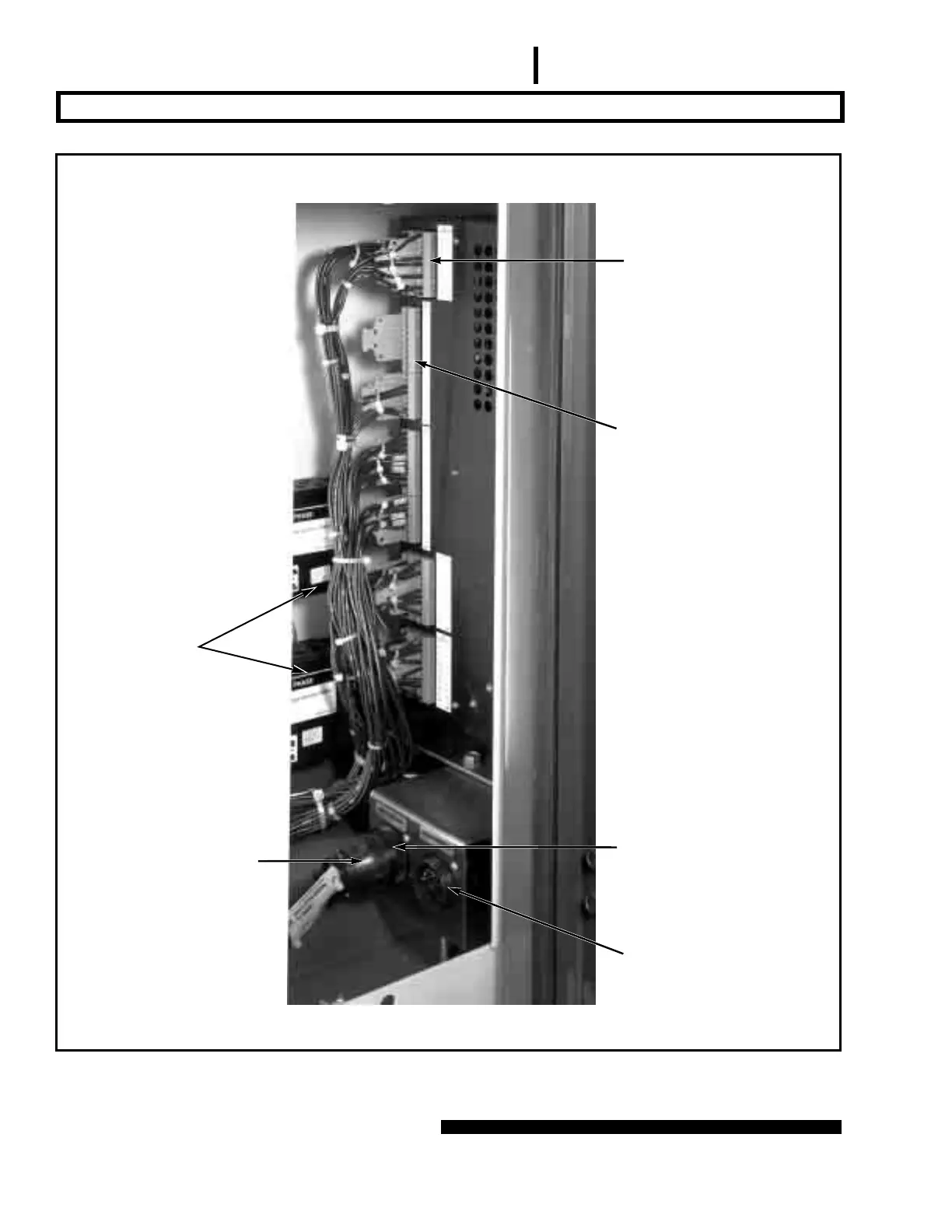

Figure 3. Access panel removed showing input plug, input receptacle, and shorting receptacle of S&C Micro-AT Source-
Transfer Control.
Remote-indication wiring
provided with optional remote-
indication feature (Catalog
Number Suffix “-Y4”), leads
to a terminal block for user’s
connections
Supervisory control wiring
(not shown) provided with
optional supervisory-control
feature (Catalog Number Suffix
“-Y6”), also leads to a terminal
block for user’s connections
Input receptacle
Input plug (signal-voltage,
control-voltage, and current-
sensing input circuits)
Shorting receptacle
Voltage limiters
