Operation
STEP 3. With the magnet attached to the “ON” side and the engraved S&C logo
on the tool facing you, raise the magnet tool up to the left side of the
recloser’s lower body. See Figure 3.

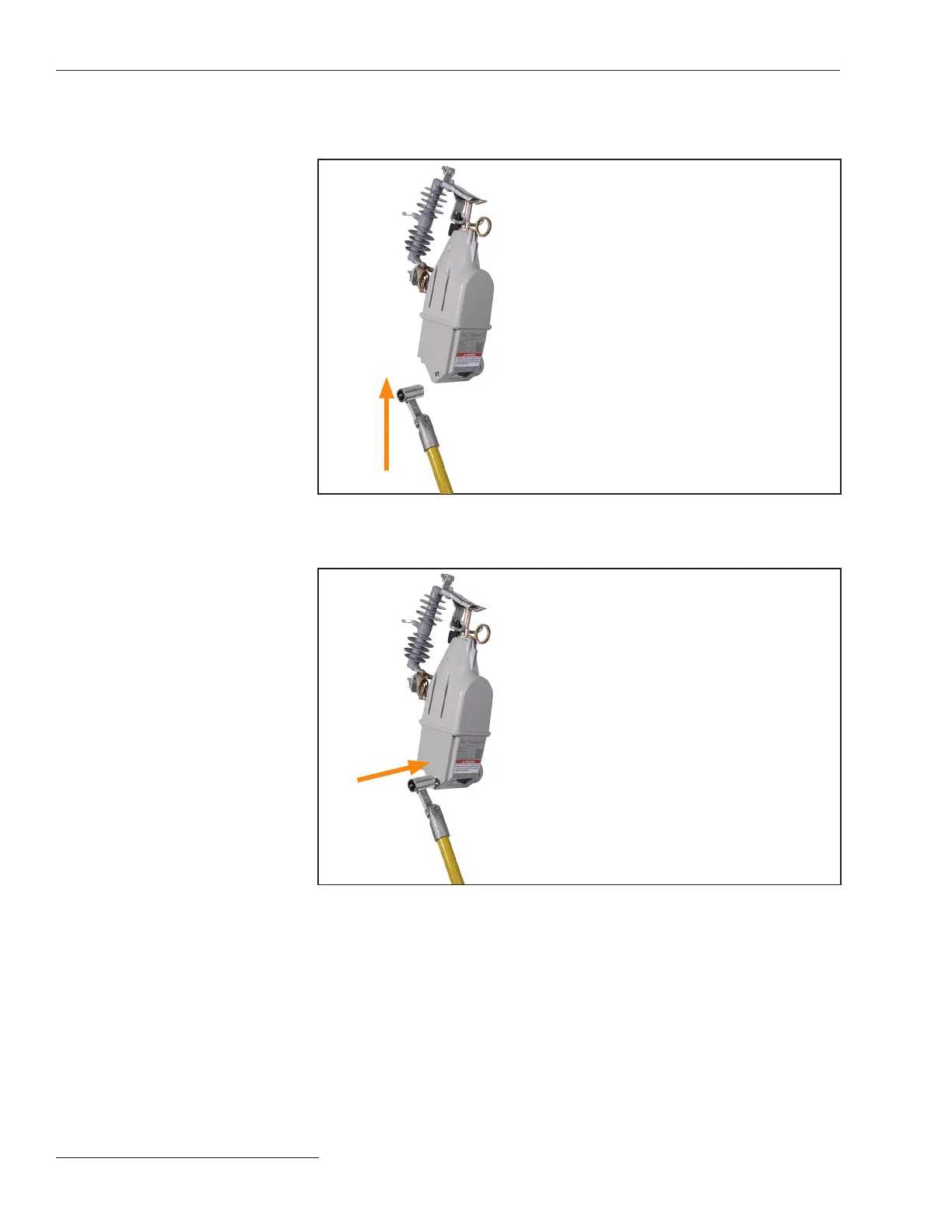

Figure 3. Raising the magnet tool up to the recloser.
STEP 4. Move the magnet tool closer to TripSaver II recloser, aiming at the green
S&C logo. See Figure 4.
Figure 4. Moving the magnet tool closer to the recloser.
