Sandel SA4550 - SA4550 Control and Display Layout

Operation
82010-PG, REV. F Sandel SA4550 Pilot’s Guide 2-3
SA4550 Control and Display Layout

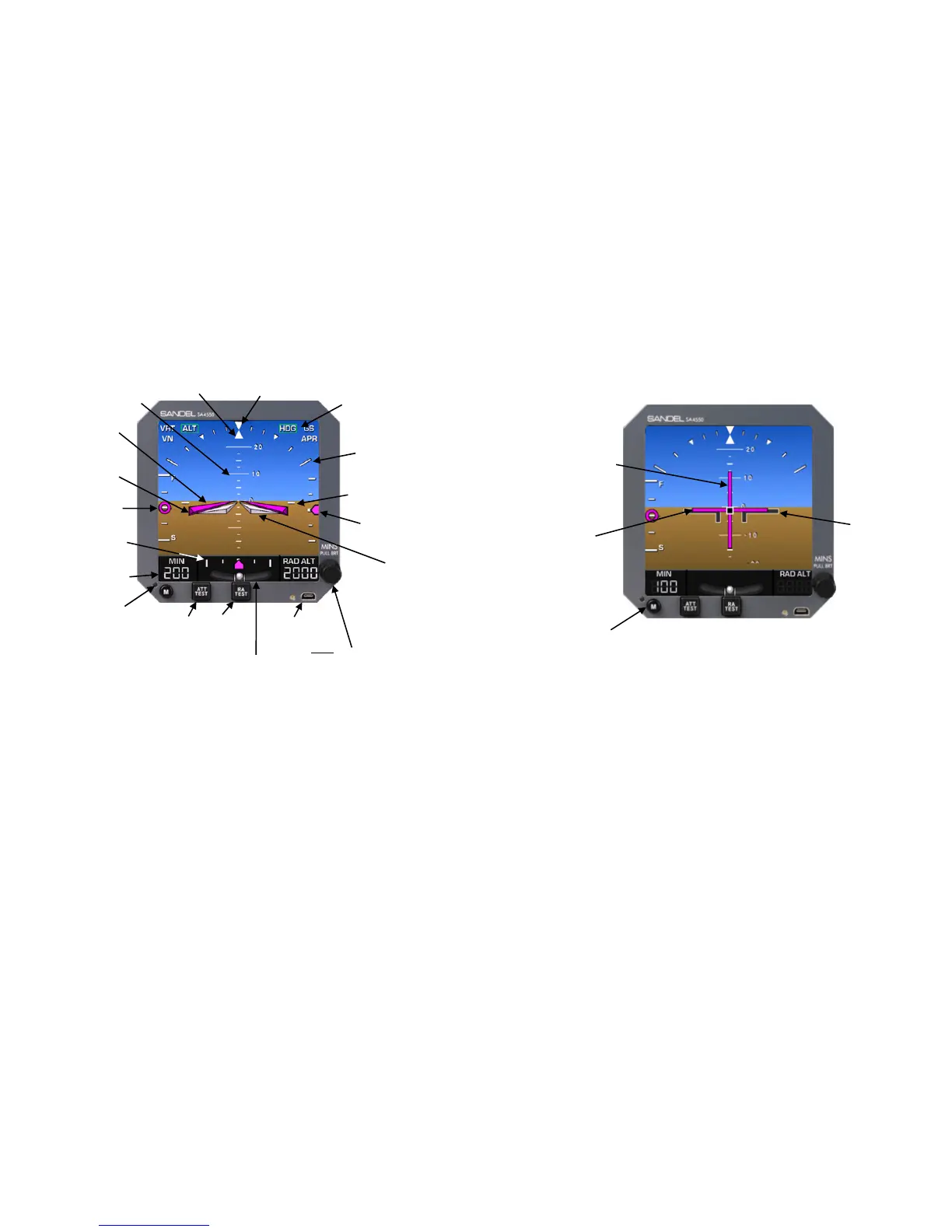

Figure 2-3 SA4550 Single Cue FD
Knob
NORM: Sets MINS alert
altitude
PULL: Ad
j
usts Bri
g
htness
Radalt
Test
Button
Glide Slope
Indicator
and Scale
Roll Scale
Annunciators
(highlight shown for
ALT and HDG)
Sky Pointer
Flight Director
Command Bar
Fast-Slow
Indicator
MINS alert
altitude
Airplane
Symbol
Pitch Scale
Horizon Line
Localizer
indicator
and
Zero Bank Index
Zero Pitch
Reference
Slip Skid
Indicator
Power-On
Indicator
Attitude
Test
Button
Mini USB
Port
Operation
82010-PG, REV. F Sandel SA4550 Pilot’s Guide 2-4
Figure 2-4 SA4550 Dual Cue FD Differences
Flight
Director
Pitch
Command
Airplane
Symbol
FD Mode
Button
Flight
Director Roll
Command
Note: in this
illustration LOC,
GS, and RADALT
are not shown for
clarity
