Sandel SA4550 - Flight Director Command Bars (Single Cue); Own Aircraft Symbol (Single Cue); Flight Director Command Bars (Dual Cue); Own Aircraft Symbol (Dual Cue)

Operation
82010-PG, REV. F Sandel SA4550 Pilot’s Guide 2-13
DISPLAY FEATURES
FUNCTION OPERATION
Flight Director
Command Bars (Single
Cue) –
Supplies combined
pitch/roll guidance from
the flight computer.
Own Aircraft Symbol
(Single Cue) –
Represents the aircraft
pitch and roll attitude
relative to the pitch scale
and sky/ground.
Fly the aircraft to center
the own-aircraft symbol
into the command bars.

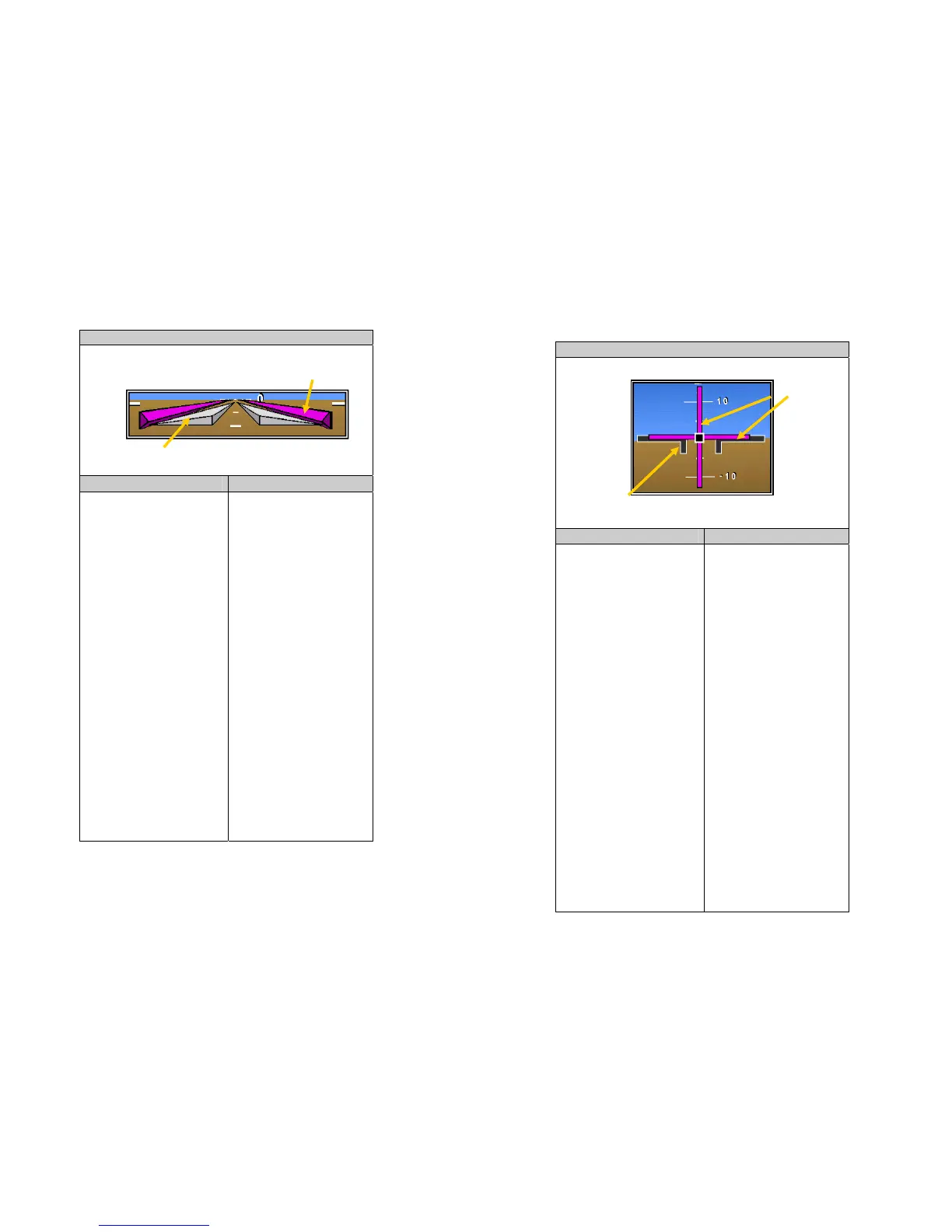

FLIGHT DIRECTOR COMMAND
BARS – SINGLE CUE
OWN AIRCRAFT
SYMBOL
Operation
82010-PG, REV. F Sandel SA4550 Pilot’s Guide 2-14
DISPLAY FEATURES
FUNCTION OPERATION
Flight Director
Command Bars (Dual
Cue) Supplies split
pitch/roll guidance from
the flight computer.
Own Aircraft Symbol
(Dual Cue) – Represents
the aircraft pitch and roll
attitude relative to the
pitch scale and
sky/ground.
Fly the aircraft to center
the cross-pointer on the
nose of the symbolic
aircraft.
Note: The split-cue
presentation can
provide guidance in one
direction without the
other. For instance, if
Alt Hold is selected on
the flight computer
without a lateral mode,
vertical guidance is
presented without lateral
guidance.
OWN AIRCRAFT
SYMBOL
FLIGHT DIRECTOR
COMMAND BARS – DUAL
CUE
