Operation
82010-PG, REV. F Sandel SA4550 Pilot’s Guide 2-1
CHAPTER 2 OPERATION
Power-On Self Test
On initial power-up, a short introduction screen will be
displayed during the power on self test which includes the
software version.
It is normal for the self test screen to flash off once during
the sequence

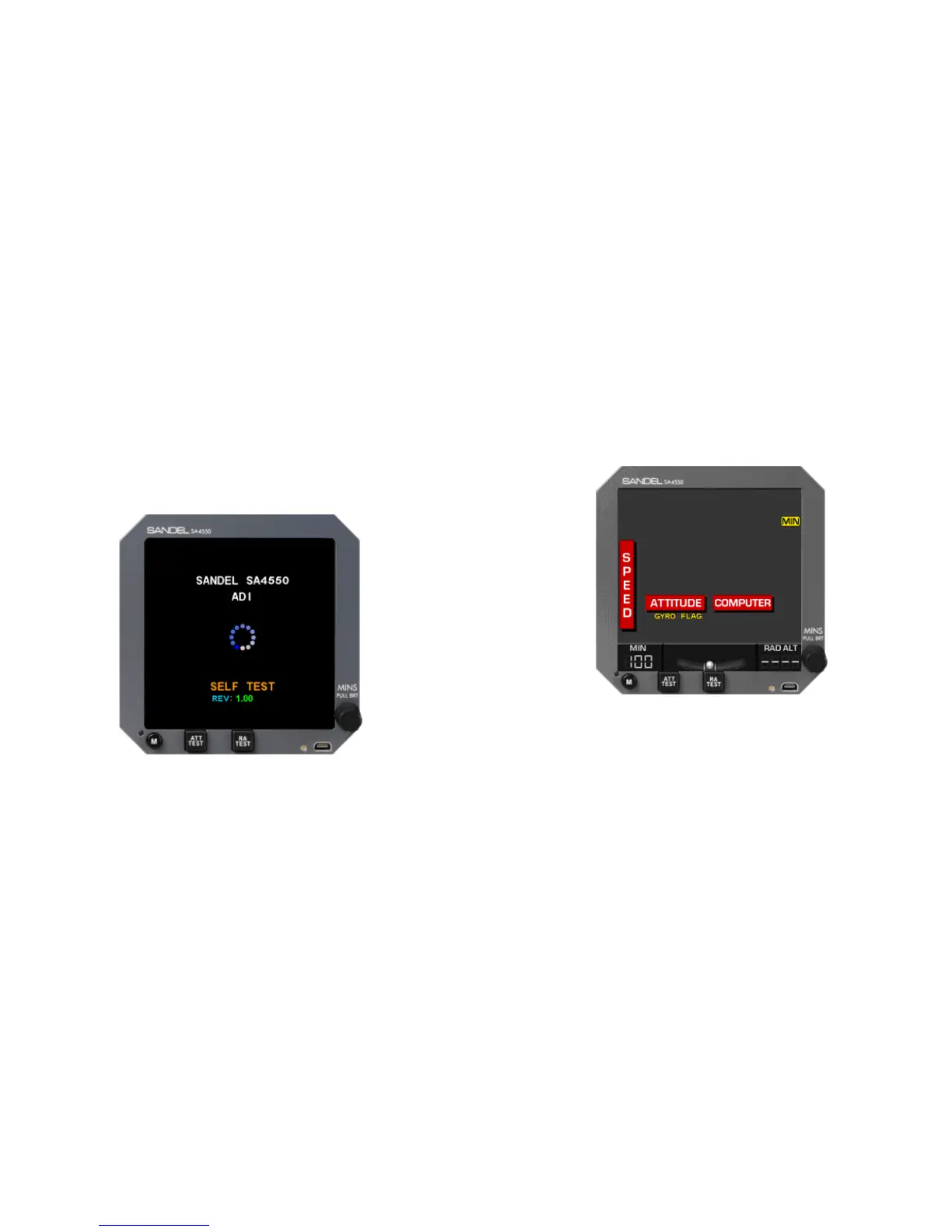

Figure 2-1 Introduction Screen
Operation
82010-PG, REV. F Sandel SA4550 Pilot’s Guide 2-2
After display of the power-up self test, the SA4550 will
immediately start normal operation.
Since it is typically powered by the aircraft main bus, it is
likely that the initial display will be flagged until after
engine start and avionics are switched on.
The display with no inputs available will look like this:
Figure 2-2 SA4550 Display with Flags
