Sanden SD-708 - Compressor Troubleshooting Chart

SERVICE PROCEDURES

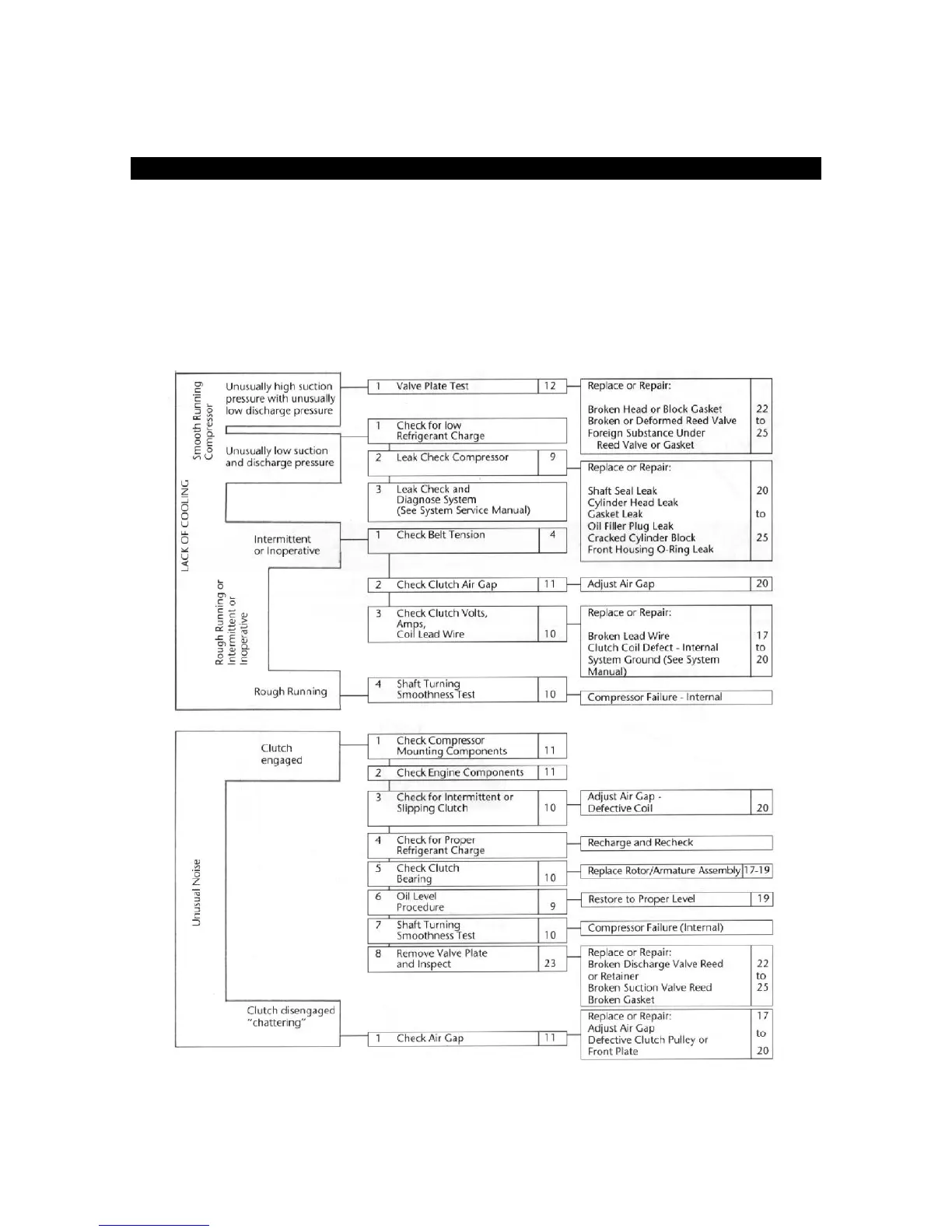

9. TROUBLESHOOTING CHART
This chart refers specially to the Sanden compressor. During diagnosis follow the inspection procedures in
the sequence shown until a defect is found. Then perform the repair in the Cause and Remedy Section. If
this repair does not fully solve the problem, proceed to the next inspection step.
Symptom Problem Diagnosis and Inspection Cause and Remedy
