Sanden SD-708 - Cylinder Head; Porting Guide

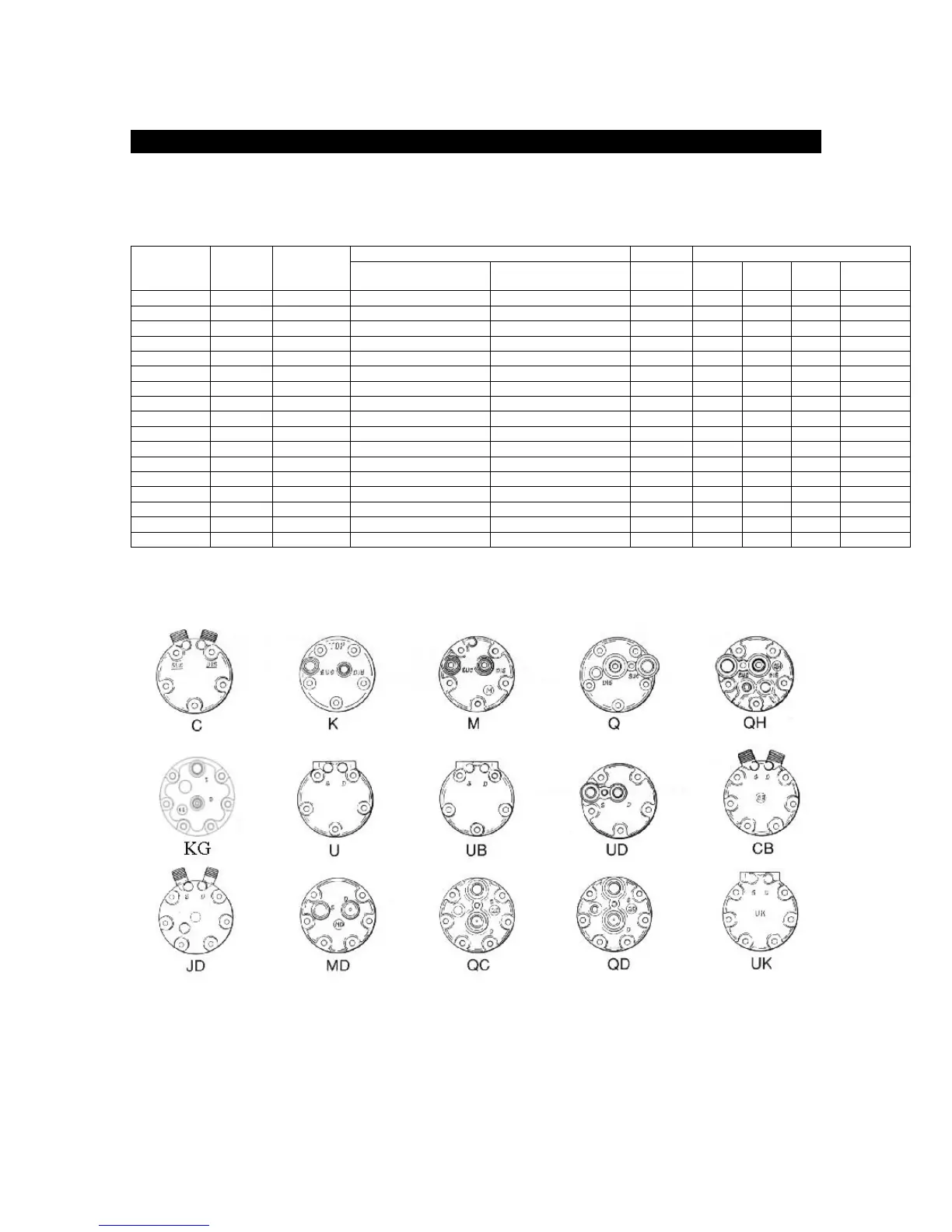

CYLINDER HEAD / PORTING GUIDE
7. SD R143a COMPRESSOR SERIES
For SD5H14, SD7H13, SD7H15 and SD7H15HD / SHD Units
Hose Port Information SD Compressor Series
Sanden
Service Kit
Part No.
Name
Position on
Cylinder
head
Suction Port
Dimension/Type
Discharge Port
Dimension/Type
TPS or
Switch?
5H14 7H13 7H15
7H15
HD/SHD
9580-9630 C Vertical Tube-O 1" - 14 rotolock Tube-O 1" - 14 rotolock No X
TDB FL Vertical Tube-O #10 (7/8") Tube-O #8 (3/4") No X
9034-9630 K Horizontal Tube-O #10 (7/8") Tube-O #8 (3/4") No X
9699-9630* M Horizontal Tube-O 1" - 14 rotolock Tube-O 1" - 14 rotolock No X
9150-9630* Q Horizontal GM Pad, 3/8" - 24 Bolt GM Pad, 3/8" - 24 Bolt No X
9695-9630* QH Horizontal GM Pad, 3/8" - 24 Bolt GM Pad, 3/8" - 24 Bolt Yes X
9298-9630* U Vertical Pad-M10 x 1 Bolt Pad-M10 x 1 Bolt No X
9517-9630* UB Vertical Pad-M10 x 1.25 Bolt Pad-M10 x 1.25 Bolt No X
9516-9630* UB Horizontal Pad-M10 x 1.25 Bolt Pad-M10 x 1.25 Bolt No X
7412-9630 CB Vertical Tube-O 1" - 14 rotolock Tube-O 1" - 14 rotolock No X X X
7832-9630 JD Vertical Tube-O #10 (7/8") Tube-O #8 (3/4") No X X X
7863-9630 JE Vertical Tube-O #10 (7/8") Tube-O #8 (3/4") No X X X
7862-9630 KG Horizontal Tube-O #10 (7/8") Tube-O #8 (3/4") No X X X
7406-9630* MD Horizontal Tube-O 1" - 14 rotolock Tube-O 1" - 14 rotolock No X X X
7433-9630 QC Horizontal GM Pad, 3/8" - 24 Bolt GM Pad, 3/8" - 24 Bolt No X X X
7484-9630 QD Horizontal Pad-M10 x 1.25 Bolt Pad-M10 x 1.25 Bolt No X X X
7200-9631 UK Vertical Pad-M10 x 1.25 Bolt Pad-M10 x 1.25 Bolt No X X X
A) Sanden R134a compressors do not offer the option of charging valves on the compressor.
B) * Indicates that a compressor featuring this cylinder head should not be mounted with the suction port
at the bottom.
