10.2 (Cont.)
4. Remove the oil filler plug. Using a socket wrench on the armature retaining nut, turn the shaft
clockwise until the counterweight is positioned as shown.

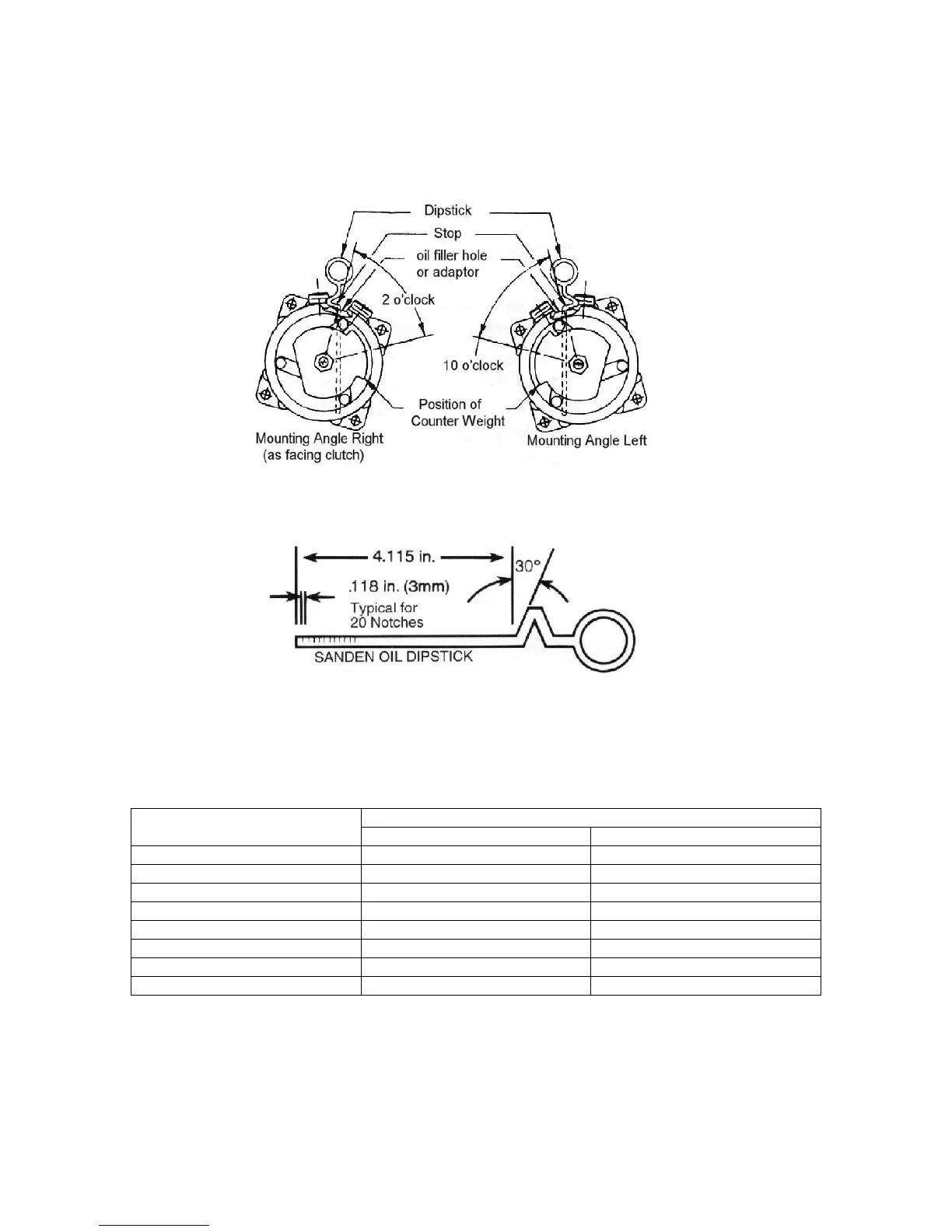

5. Insert oil dipstick up to the stop, as shown in the figure above, with the angle pointing in the correct
direction.
6. Remove dipstick and count number of notches covered by oil.
7. Add or subtract oil to meet the specifications shown in the table.
8. Reinstall oil plug. Seat and O-ring must be clean and not damaged. Torque to 11-15 ftðlb (15-20 Nðm,
150-200 kgf•cm).
Acceptable oil level in increments
Mounting Angle (Degrees)
SD5H14 SD7H15
0 3-5 5-7
10 4-6 6-8
20 5-7 7-9
30 6-8 8-10
40 7-9 9-11
50 8-10 10-12
60 8-10 11-13
90 8-10 16-18
