14.6 (Cont.)

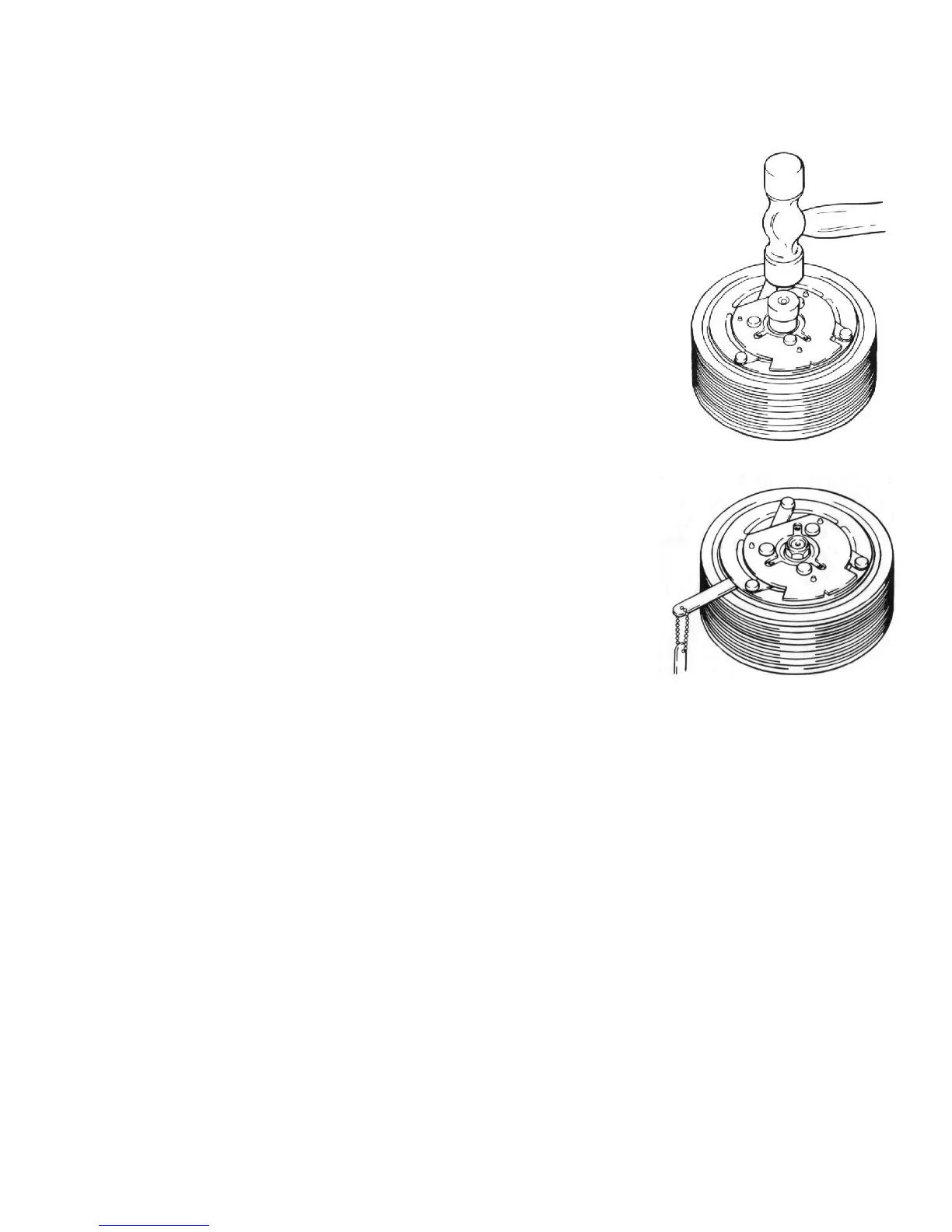

3. Align keyway in armature assembly to shaft key. Using driver and a hammer
or arbor press, drive the armature assembly down over the shaft until it
bottoms on the shims. A distinct sound change will be noted if driving with a
hammer.
4. Replace retaining nut and torque to specification.
1/2-20: 20-25 ft••lb (27-34 N••m, 270-350 kg••cm)
M8: 11-15 ft••lb (15-21 N••m, 150-210 kgf••cm)
5. Check air gap with feeler gauge. Specification is 0.016" -0.031" (0.4 -
0.8mm). If gap is not even around the clutch, gently tap down at the high
spots. If the overall gap is out of spec., remove the armature assembly and
change the shims as necessary.
6. Replace armature dust cover (if used) and torque 3 or 6 bolts to
specification below.
3 - 1/4-20 bolts (SD-5): 2-4 ft•lb (2-5 N•m, 25-50 kgf•cm)
6 - M5 bolts (SD-7): 5-8 ft•lb (7-11 N•m, 70-110 kgf•cm)
*Note: Over torque of SD508/SH14 dust cover bolts will cause air
gap to become out of spec.
