Model SB1 & SB25 • 16
Dual Port Suction / Single Discharge Repair Parts List
Item Part Number Description Qty.
15 170.122.330 Capscrew, Hex 5/16-18 UNC-2A X 5.00 3
23 334.013.110 Flange, Porting 1" NPT 1
334.013.110 E Flange, Porting 1" BSP Tapered 1
334.013.112 Flange, Porting 1" NPT 1
334.013.112 E Flange, Porting 1" BSP Tapered 1
334.013.157 Flange, Porting 1" NPT 1
334.013.157 E Flange, Porting 1" BSP Tapered 1
55 334.036.110 Flange, Dual Porting 1" NPT 1
334.036.110 E Flange, Dual Porting 1" BSP Tapered 1
334.036.112 Flange, Dual Porting 1" NPT 1
334.036.112 E Flange, Dual Porting 1" BSP Tapered 1
334.036.156 Flange, Dual Porting 1" NPT 1
334.036.156 E Flange, Dual Porting 1" BSP Tapered 1
56 170.125.330 Capscrew, Hex 5/16-18 UNC-2A X 6.00 3
Dual Port Options

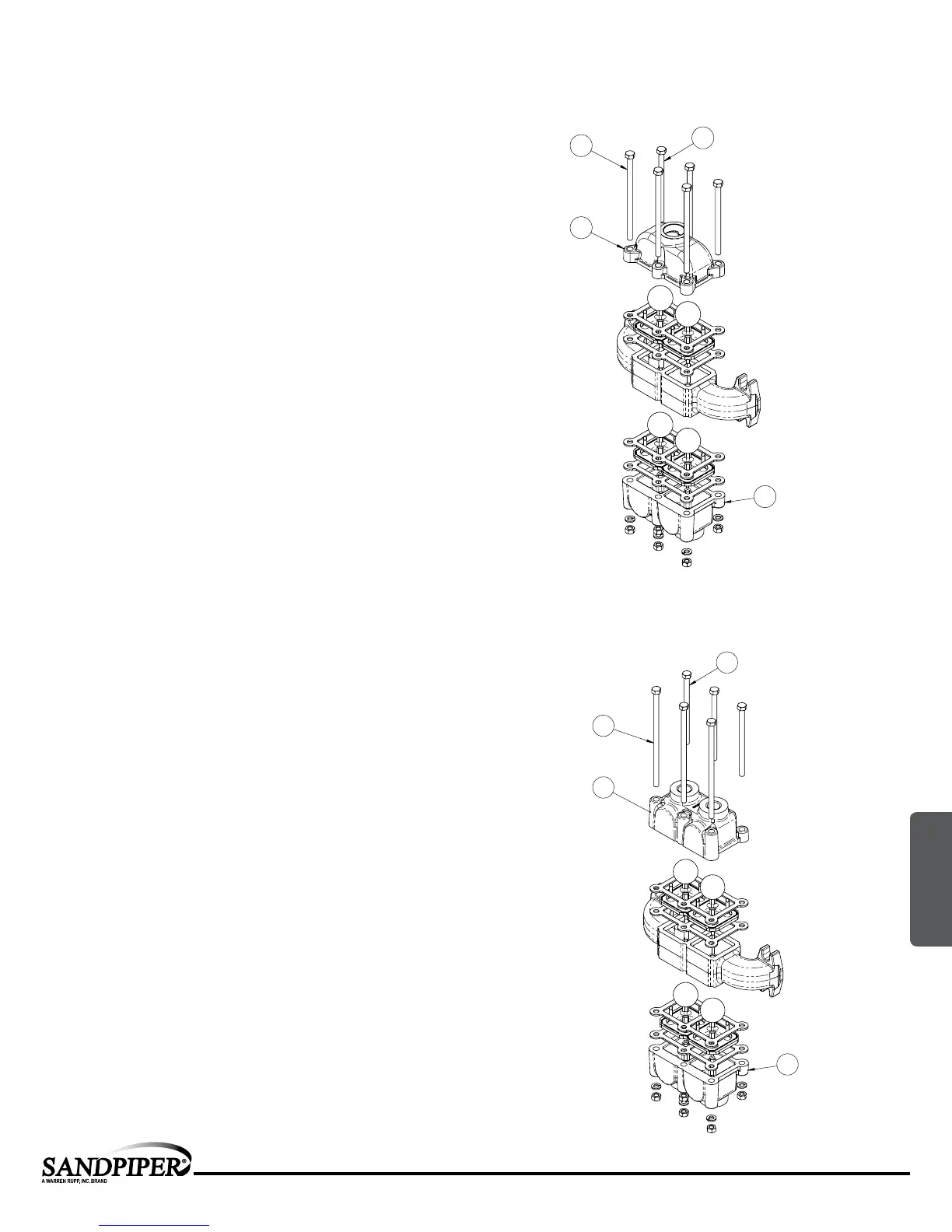

Illustration for Dual Port Suction
and Single or Dual Port Discharge
Dual Port Suction and Discharge Repair Parts List
Item Part Number Description Qty.
15 170.122.330 Capscrew, Hex 5/16-18 UNC-2A X 5.00 3
55 334.036.110 Flange, Dual Porting 1" NPT 2
334.036.110 E Flange, Dual Porting 1" BSP Tapered 2
334.036.112 Flange, Dual Porting 1" NPT 2
334.036.112 E Flange, Dual Porting 1" BSP Tapered 2
334.036.156 Flange, Dual Porting 1" NPT 2
334.036.156 E Flange, Dual Porting 1" BSP Tapered 2
57 170.084.330 Capscrew, Hex 5/16-18 UNC-2A X 7.00 3
55
23
56
15
DUAL PORT SUCTION
SINGLE PORT DISCHARGE
55
15
57
55
DUAL PORT SUCTION
AND DISCHARGE
UNIVERSAL ALL SP
6: OPTIONAL
