Connections

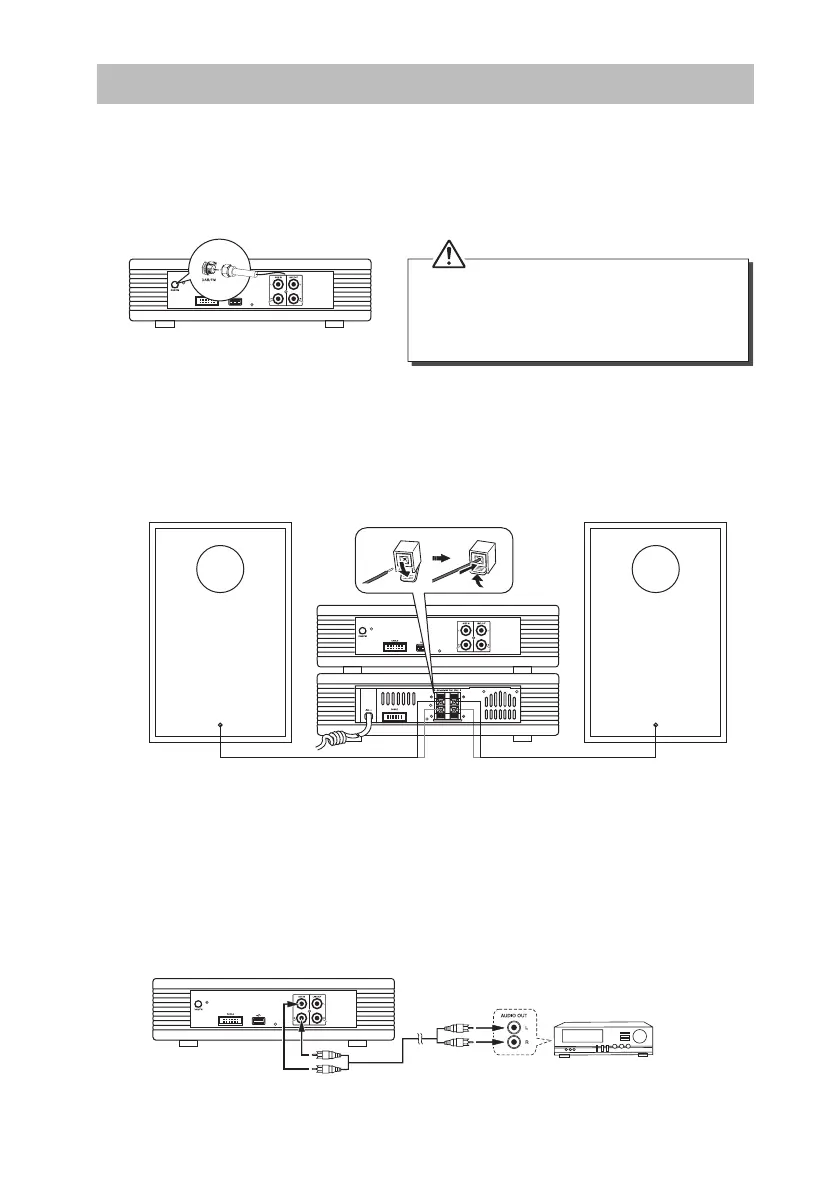

1. Connecting the DAB/FM Aerial
Connect the DAB/FM wire aerial (included) to the DAB/FM aerial socket on the rear of the
CD player.
Turn the screw clockwise at the tip of the connector to secure the connection.
3. Connecting Auxiliary Equipment
Connect the AUX INPUT sockets at the rear of the CD player to the line output sockets on
the auxiliary equipment using RCA stereo audio cables (not included), as illustrated below.
2. Speaker Connections
Connect the speaker cables at the rear of the speakers to the speaker sockets (L/R) at the
rear side of the ampli er.
Right Speaker
Box Rear View
The Ampli er Left Speaker
Box Rear View
• Before attaching a 75 Ω coaxial lead (the kind
with a round wire going to an outside aerial),
disconnect the supplied DAB/FM wire aerial.
• To avoid noise, keep aerial away from the system,
the control cable and the mains cable.
Auxiliary equipment
The CD Player
To Next Page
