SEC3002 FIRE ALARM CONTROL PANEL

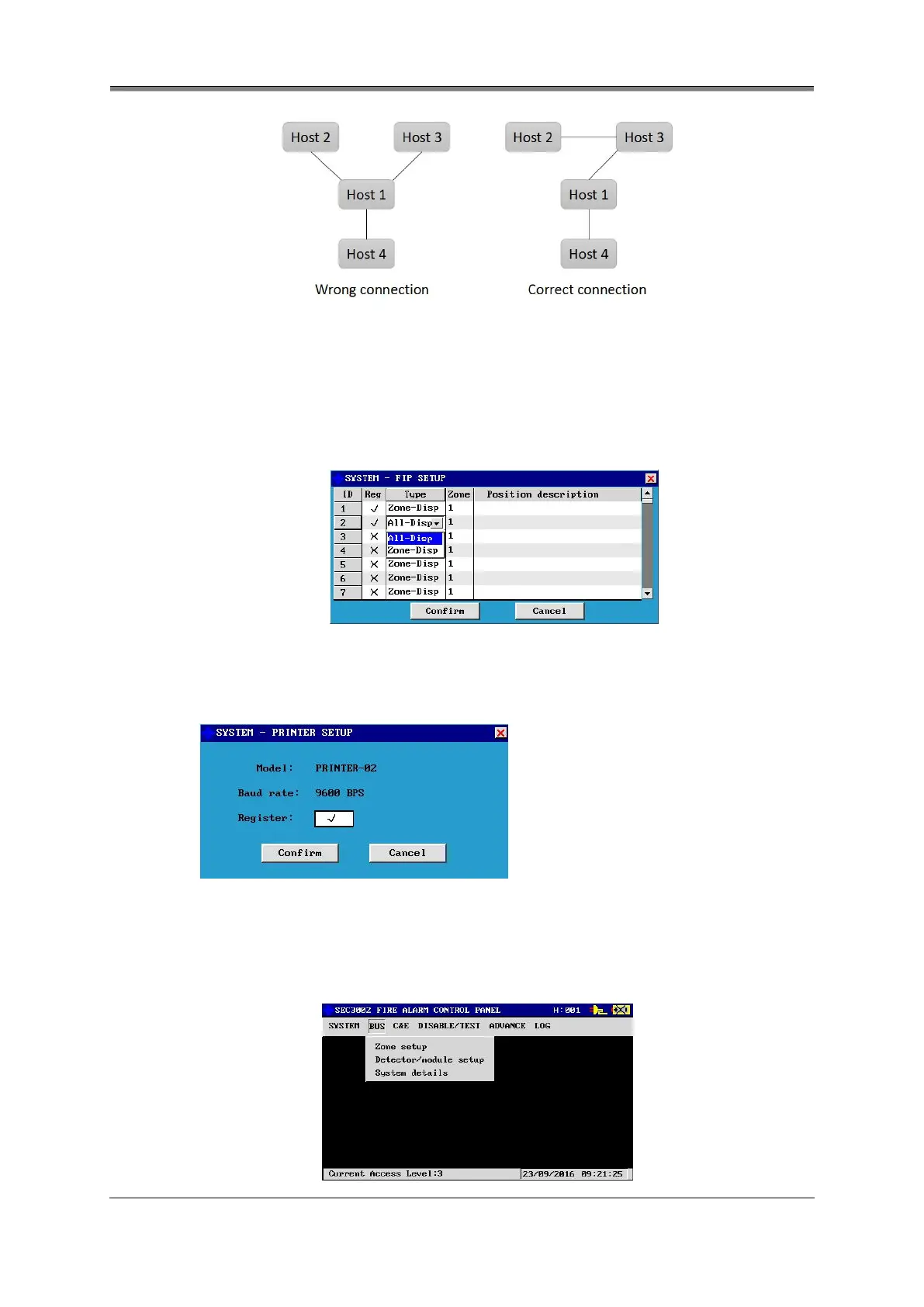

FIP setup
The FIP (fire indicating panel, also called as ‘repeater’) is a displaying terminal unit in the
system showing alarm messages by connecting to the SEC3002 control panel through the
RS-485 bus. It has two working modes: display all the alarm messages from the control panel,
or only the messages of the zone where it is assigned to. Up to 30 FIPs can be included in this
system. The setting window is as below.
Printer setup
The standard printer of PRINTER-02 compatible to the panel can be registered through the
menu option of ‘Printer setup’ under the ‘SYSTEM’ category.
5.2.2 Bus setup
All configurations and commissioning relating to the bus is set under the BUS category,
including naming of zones, registering and assignment of detectors/modules, and reading of
the system details. The sub-menus are as example below:
Only when the printer is registered
can it communicate with the panel
and do print.
