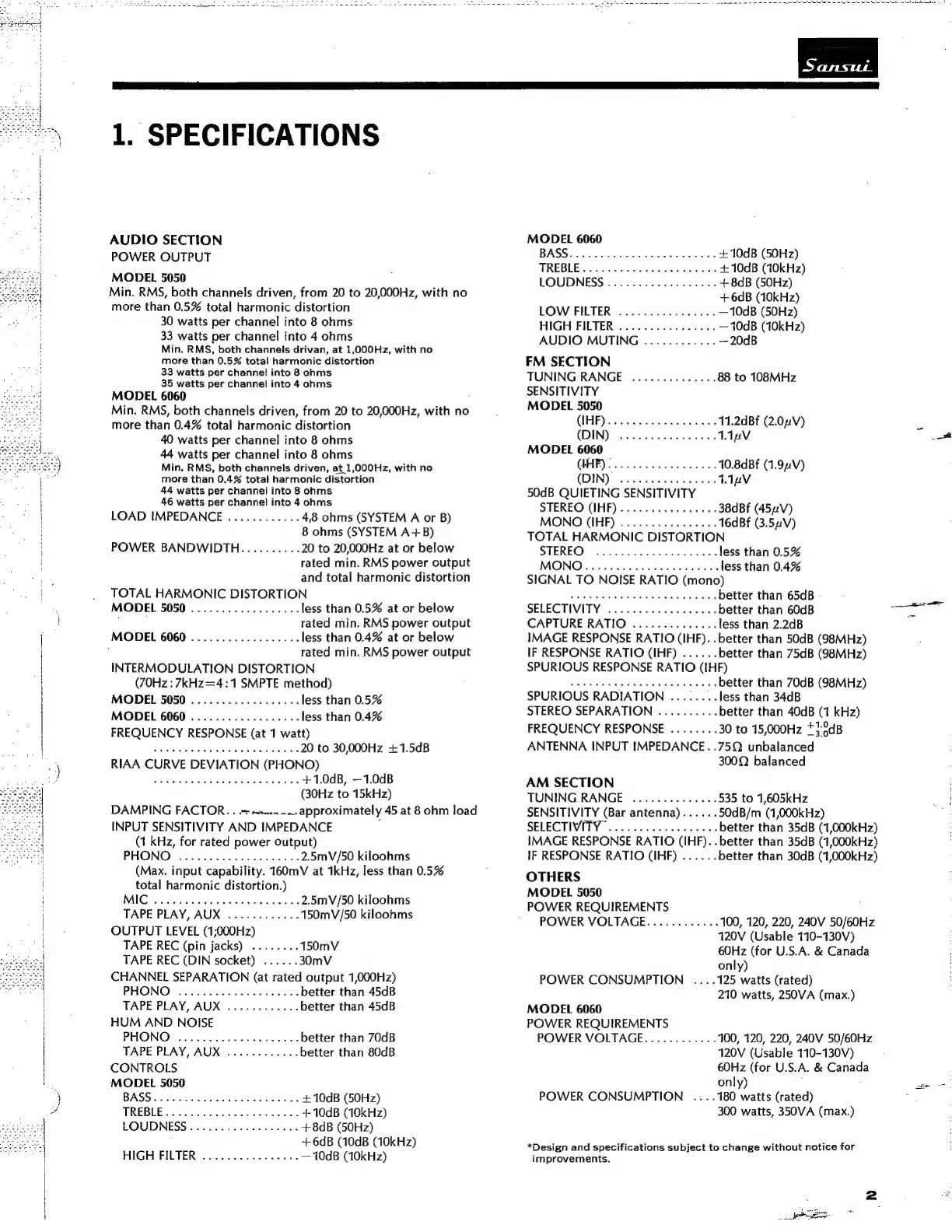

1. SPECIFICATIONS
AUDIO SECTION
POWER OUTPUT
MODEL 5050
Min. RMS, both channels driven, from 20 to 20,000Hz, with no
more than 0.5% total harmonic distortion
30 watts per channel into 8 ohms
33 watts per channel into 4 ohms
Min. RMS, both channels drivan, at 1,000Hz, with no
more than 0.5% total harmonic distortion
33 watts per channel into 8 ohms
35 watts per channel into 4 ohms
MODEL
6060
,
Min. RMS, both channels driven, from 20 to 20,000Hz, with no
more than 0.4% total harmonic distortion
40 watts per channel into 8 ohms
44 watts per channel into 8 ohms
Min. RMS, both channels driven, at_1,000Hz, with no
more than 0.4% total harmonic distortion
44 watts per channel into 8 ohms
46 watts per channel into 4 ohms
LOAD IMPEDANCE ...........- 4,8 ohms (SYSTEM A or B)
8 ohms (SYSTEM A+B)
POWER BANDWIDTH........-- 20 to 20,000Hz at or below
rated min. RMS power output
and total harmonic distortion
TOTAL HARMONIC DISTORTION
MODEL 5050 ...............05. less than 0.5% at or below
, rated min. RMS power output
MODEL 6060 .................. less than 0.4% at or below
rated min. RMS power output
INTERMODULATION DISTORTION
(70Hz:7kHz=4:1 SMPTE method)
MODEL 5050 .............0.005 less than 0.5%
MODEL 6060 .................. less than 0.4%
FREQUENCY RESPONSE (at 1 watt)
Pi cdnnha wt cazeciet: 20 to 30,000Hz +1.5dB
RIAA CURVE DEVIATION (PHONO)
ney eet Serene +1.0dB, —1.0dB
(30Hz to 15kHz)
DAMPING FACTOR... o+ ~~. approximately 45 at 8 ohm load
INPUT SENSITIVITY AND IMPEDANCE
(1 kHz, for rated power Output)
PHONO ce cccevevienbtee eee: 2.5mV/50 kiloohms
(Max. input capability. 160mV at 1kHz, less than 0.5%
total harmonic distortion.)
MIG? cee foieetiati Ble casc 2.5mV/50 kiloohms
TAPE PLAY, AUX ............ 150mV/50 kiloohms
OUTPUT LEVEL (1;000Hz)
TAPE REC (pin jacks) ........ 150mV
TAPE REC (DIN socket) ...... 30mV
CHANNEL SEPARATION (at rated output 1,000Hz)
PHONO fi we tea weve evea ses better than 45dB
TAPE PLAY, AUX ............ better than 45dB
HUM AND NOISE
PHONO ...........00.00 00s better than 70dB
TAPE PLAY, AUX ............ better than 80dB
CONTROLS
MODEL 5050
BASS ciao caniia icc ndulh +10dB (50Hz)
TREBLE co iavucaeedsx ear eccees +-10dB (10kHz)
LOUDNESS .............20005 +8dB (50Hz)
+6dB (10dB (10kHz)
HIGH FILTER ........--..-.-. —10dB (10kHz)
MODEL 6060
BAGG eee seo unaadac te. +10dB (50Hz)
TREBLE isi. c1c ss: es.0sa We.dsrdes Weise eo +10dB (10kHz)
LOUDNESS ...........0 000 +8dB (50Hz)
+6dB (10kHz)
LOW FILTER ..........-.0005 —10dB (50Hz)
HIGH FILTER ................ —10dB (10kHz)
AUDIO MUTING ............ —20dB
FM SECTION
TUNING RANGE .............. 88 to 108MHz
SENSITIVITY
MODEL 5050
EE) soos snes 11.2dBf (2.02V) z
(DIN) voc. eccccee eee ee 1.1nV a
MODEL 6060
GHP ceiatnn snl cbout 10.8dBF (1.92V)
(DIN): feseisn eae ca LTV
50dB QUIETING SENSITIVITY
STEREO (IHF) .......ccsceeee: 38d Bf (452V)
MONO (IHF) .......0e00eeees 16dBf (3.52V)
TOTAL HARMONIC DISTORTION
STEREO™ sccieciesn viseccwe alee less than 0.5%
MONO. ....... 00000 e cece less than 0.4%
SIGNAL TO NOISE RATIO (mono)
stesshoac des tite Aare Setbdoa bBtath fs better than 65dB -
SELECTIVITY ........00.cc0eeee better than 60dB anes
CAPTURE RATIO .............- less than 2.2dB
IMAGE RESPONSE RATIO (IHF). .better than 50dB (98MHz)
IF RESPONSE RATIO (IHF) ...... better than 75dB (98MHz)
SPURIOUS RESPONSE RATIO (IHF)
wy d Seba Toh oschuataen nereken’ better than 70dB (98MHz)
SPURIOUS RADIATION ........ less than 34dB
STEREO SEPARATION ........-. better than 40dB (1 kHz)
FREQUENCY RESPONSE ........ 30 to 15,000Hz +}-°dB
ANTENNA INPUT {MPEDANCE..75Q unbalanced
300 balanced
AM SECTION
TUNING RANGE .............. 535 to 1,605kHz
SENSITIVITY (Bar antenna)...... 50dB/m (1,000kHz)
SELECTIVITY ............000008 better than 35dB (1,000kHz)
IMAGE RESPONSE RATIO (IHF). .better than 35dB (1,000kHz)
IF RESPONSE RATIO (IHF) ...... better than 30dB (1,000kHz)
OTHERS
MODEL 5050
POWER REQUIREMENTS
POWER VOLTAGE............ 100, 120, 220, 240V 50/60Hz
120V (Usable 110-130V)
60Hz (for U.S.A. & Canada
only)
.125 watts (rated)
210 watts, 250VA (max.)
POWER CONSUMPTION ...
MODEL 6060
POWER REQUIREMENTS
POWER VOLTAGE............ 100, 120, 220, 240V 50/60Hz
120V (Usable 110-130V)
60Hz (for U.S.A. & Canada
only) see”
. .180 watts (rated) :
300 watts, 350VA (max.)
POWER CONSUMPTION
*Design and specifications subject to change without notice for
improvements.
