g9002D8/79002 |

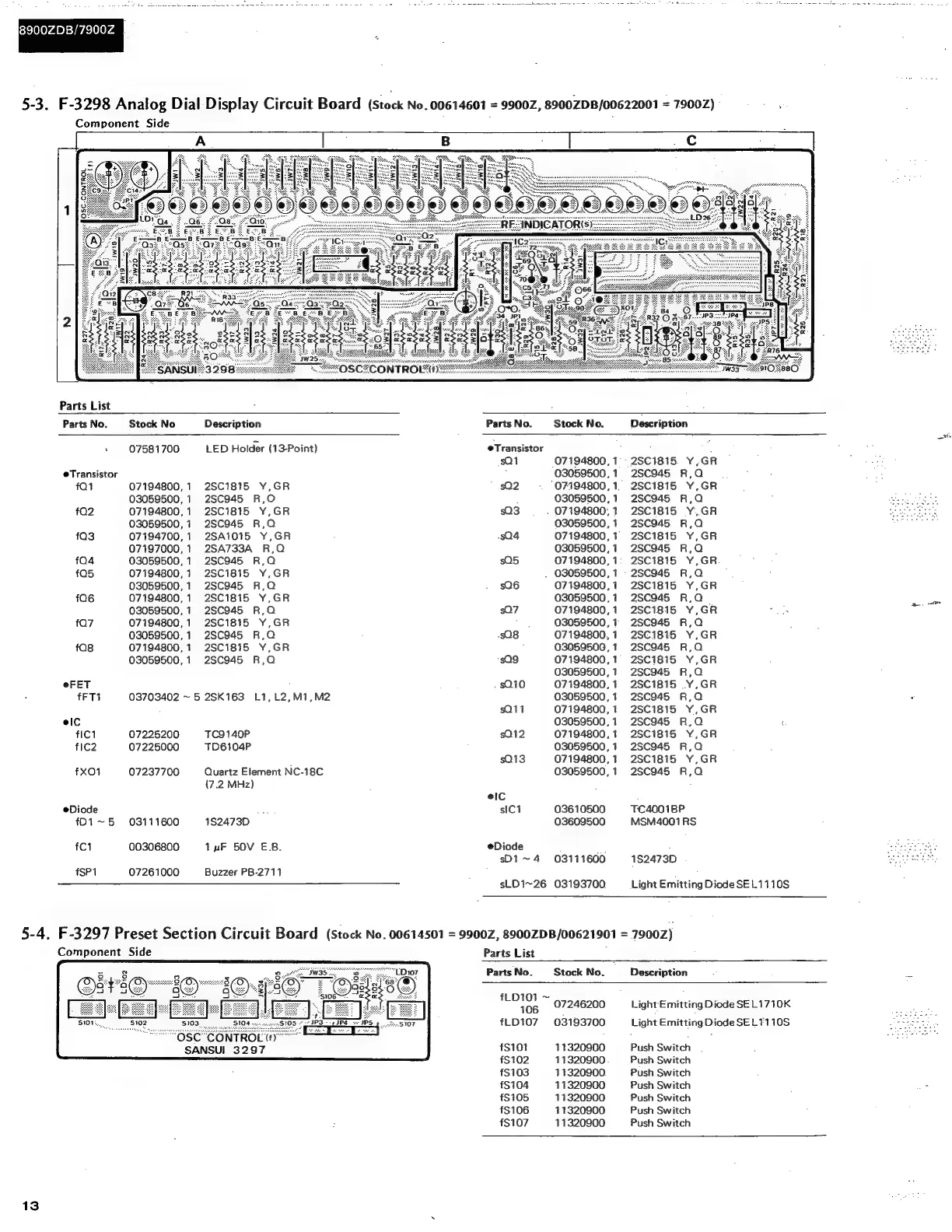

5-3. F-3298 Analog Dial Display Circuit Board (Stock No. 00614601 = 9900Z, 8900ZDB/00622001=7900Z) i esC(<«s
Component Side ; : ;
Parts List
Parts No. Stock No Description Parts No. Stock No. Description
‘ 07581700 LED Holder (13-Point) eTransistor ; F
21 07194800, 1: 2SC1815. Y,GR
e@Transistor . 03059500,1 2SC945 R,Q x
fQ1 07194800,1 2SC1815 Y,GR sQ2 07194800,1. 2SC1815 Y,GR
03059500,1 2SC945 R,O ; 03059500,1 2SC945 R,Q
fQ2 07194800,1 2SC1815 Y,GR sO3. ssw: O7194800;1 2SC1815 Y,GR
03059500,1 2SC945 R,Q 03059500,1 2SC945 R,Q
03 07194700,1 2SA1015 Y,GR sQ4 07194800,1 2SC1815 Y,GR
07197000,1 2SA733A R,Q 03059500,1 2SC945 R,Q
fQ4 03059500,1 2SC945 R,Q sQ5 07194800,1: 2SC1815 Y,GR
fO5 07194800,1 2SC1815 Y,GR . 03059500,1 - 2SC945 R,Q
03059500,1 2SC945 R,Q . sQ6 07194800,1 2SC1815 Y,GR
06 07194800,1 2SC1815 Y,GR 03059500,1 2SC945 R,Q as
03059500,1 2SC945 R,Q sQ7 07194800,1 2SC1815 Y,GR Siege al
tQ7 07194800,1 2SC1815 Y,GR ae, 03059500,1 2SC945 R,Q
03059500,1 2SC945 R,OQ S08 07194800,1 2SC1815 Y,GR
f08 07194800,1 2SC1815 Y,GR ; 03059500,1 2SC945 R,Q
03059500,1 2SC945 R,Q sag 07194800,1 2SC1815 Y,GR
03059500,1 2SC945 R,Q
e@FET . sQ10 07194800,1 2SC1815 .Y,GR
fFT1 03703402 ~ 5 2SK163 L1,L2,M1,M2 03059500,1 2SC945 R,O
sQ11 07194800,1 2SC1815 Y,GR
elCc 03059500,1 2SC945 R,Q
fIC1 07225200 TC9140P sQ12 07194800,1 2SC1815 Y,GR
fIC2 07225000 TD6104P 03059500,1 2SC945 R,Q
sQ13 07194800,1 2SC1815 Y,GR
#XO1 07237700 Quartz Element NC-18C 03059500,1 2SC945 R,Q
{7.2 MHz)
eic
Diode ae s!Ci 03610500 TC40071BP
fD1~5 03111600 1$2473D 03609500 MSM4001 RS
fC1 00306800 Tur SOV EB. e@Diode ; .
sD1~4 03111600 182473D
#SP1 07261000 Buzzer PB-2711 :
sLD1~26 03193700 —_Light Emitting Diode SEL1110S
5-4. F-3297 Preset Section Circuit Board (Stock No. 00614501 = 9900Z, 8900ZDB/00621901 = 7900Z)
Component Side Parts List ;
Parts No. Stock No. Description
f a
poaae 07246200 Light'E mitting Diode SEL1710K
#LD107 03193700 Light Emitting Diode SELT110S
SANSUI 3297 #S101 11320900 Push Switch
$102 11320900. Push Switch
f$103 11320900. Push Switch :
$104 11320900 Push Switch _-
S105 11320300 Push Switch
#$106 11320900 Push Switch
S107 11320900 Push Switch
13
