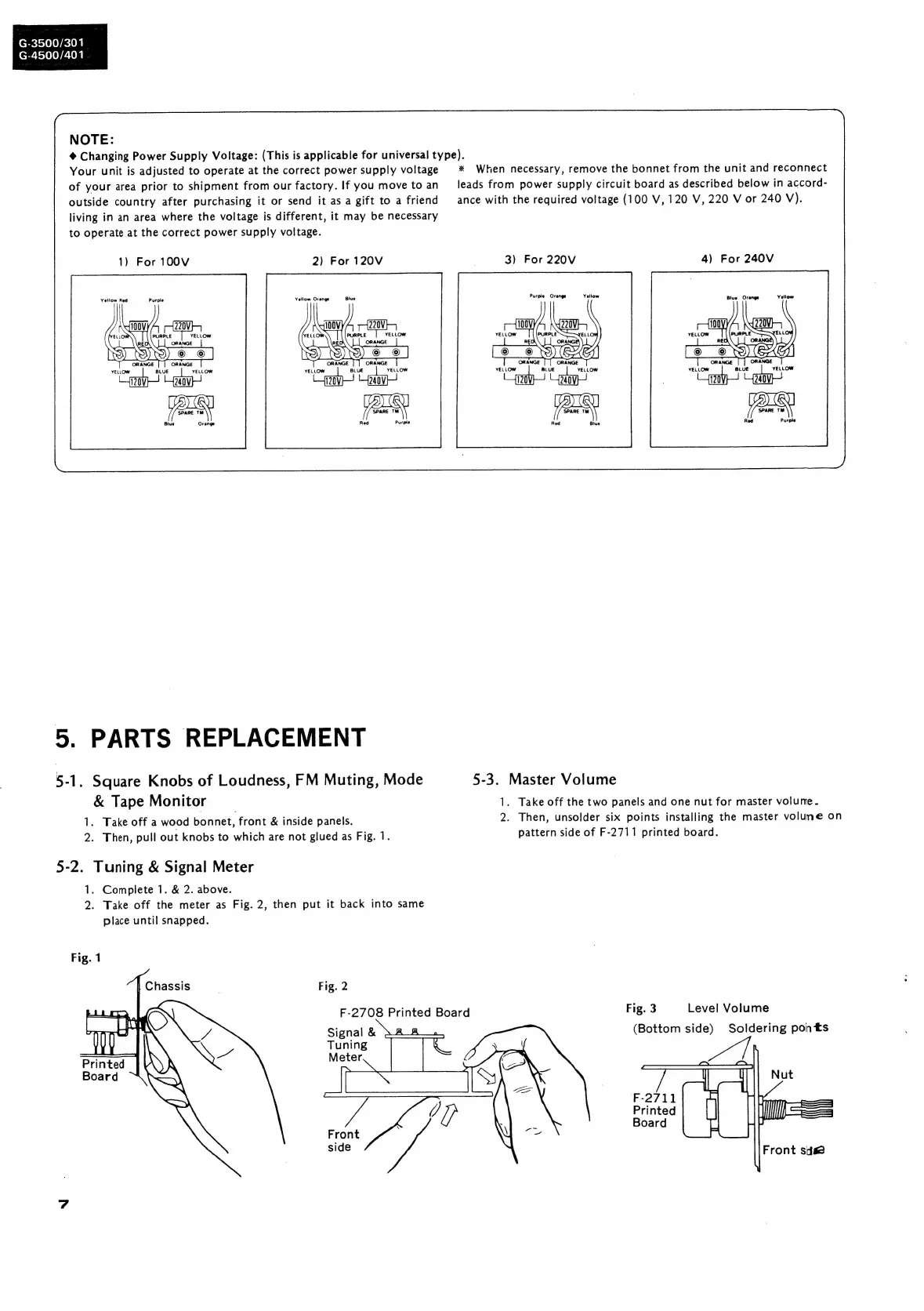

Sansui G-3500 - Parts Replacement

G-3500/301
G-4500/401
NOTE:
@ Changing Power Supply Voltage: (This is applicable for universal type).
* When necessary, remove the bonnet from the unit and reconnect
leads from power supply circuit board as described below in accord-
ance with the required voltage (100 V, 120 V, 220 V or 240 V).
Your unit is adjusted to operate at the correct power supply voltage
of your area prior to shipment from our factory. If you move to an
outside country after purchasing it or send it as a gift to a friend
living in an area where the voltage is different, it may be necessary
to operate at the correct power supply voltage.
1) For 100V 2) For 120V
Yellow Orange
NGE
YELL YELLOW
an! ae
SPARE TM
IGE
ea eee. YELLOW
(240V]
SPARE TM
Biue Orange Red Purple
5. PARTS REPLACEMENT
5-1. Square Knobs of Loudness, FM Muting, Mode
& Tape Monitor
1. Take off a wood bonnet, front & inside panels.
2. Then, pull out knobs to which are not glued as Fig. 1.
5-2. Tuning & Signal Meter
1. Complete 1. & 2. above.
2. Take off the meter as Fig. 2, then put it back into same
place until snapped.
Fig. 1
Chassis Fig. 2
Signal &
Tuning
Printed Mere
Board
F-2708 Printed Board
3) For 220V 4) For 240V
Orange Yellow
YELLOW BLUE YELLOW
—e jeans
) SPARE TM Y
5-3. Master Volume
1. Take off the two panels and one nut for master volune.
2. Then, unsolder six points installing the master volune on
pattern side of F-2711 printed board.
Level Volume
Soldering ponts
Fig. 3
(Bottom side)
Front sds
