Sansui HDLCD1955A - Parts and Functions Overview; Front Panel Description; Rear Panel Connections; Side Panel Controls

9
ENGLISH

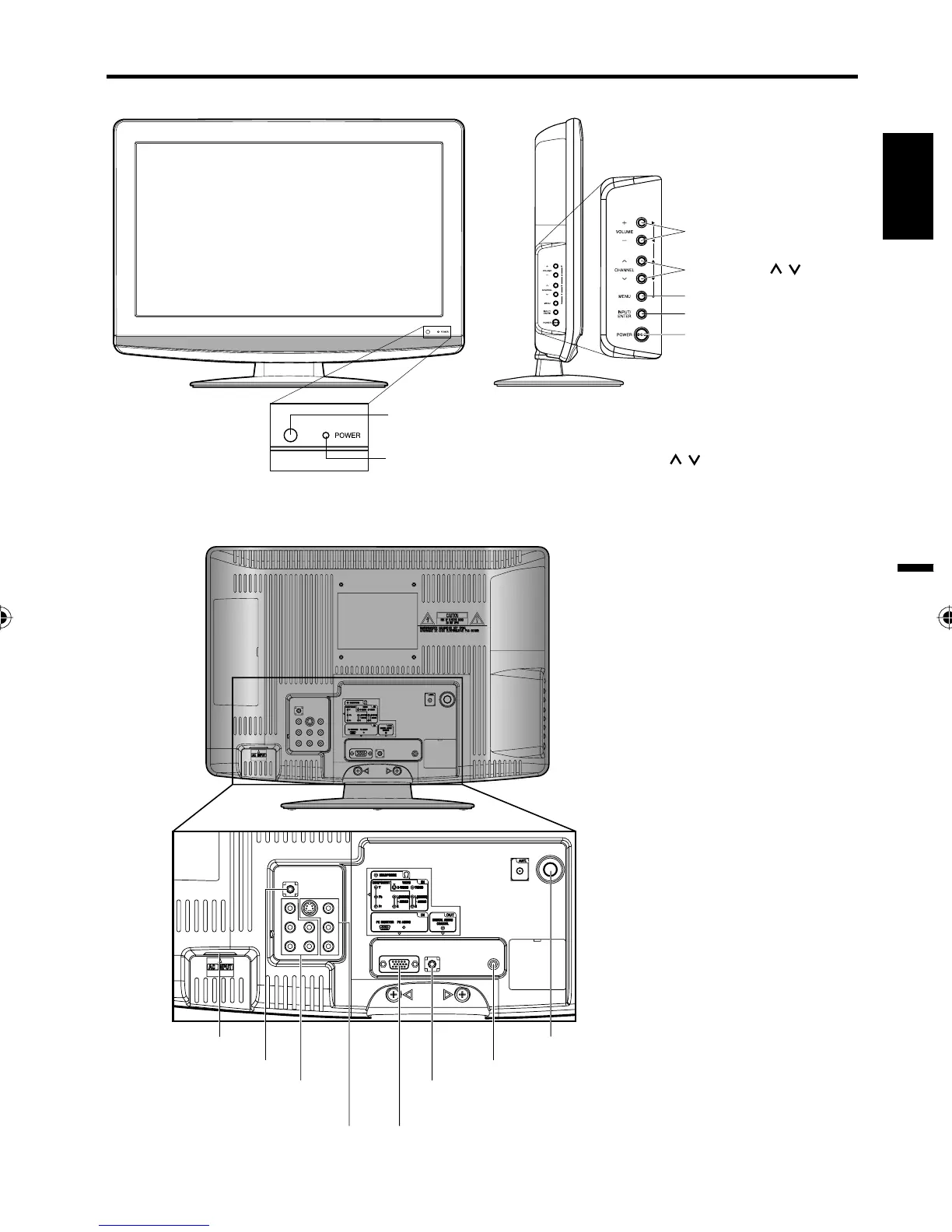

Left sideFront
Remote sensor
POWER indicator
Red: Standby
Green: On
POWER button
INPUT/ENTER button
VOLUME +/– buttons
CHANNEL
/ buttons
MENU button
Rear
To display the menu screen.
Press MENU button to display the menu
screen.
CHANNEL
/ buttons, VOLUME
+/– buttons and INPUT/ENTER button
can be used to select the desired setting
during the menu screen operations.
AC INPUT jack
PC AUDIO IN jack
VIDEO IN jacks
(VIDEO/S-VIDEO/AUDIO (L/R))
COMPONENT IN jacks
(Y/Pb/Pr/ AUDIO (L/R))
COAXIAL DIGITAL AUDIO OUT jack
RF (ANT) IN jack
HEADPHONE jack
PC MONITOR IN jack
Parts and functions
