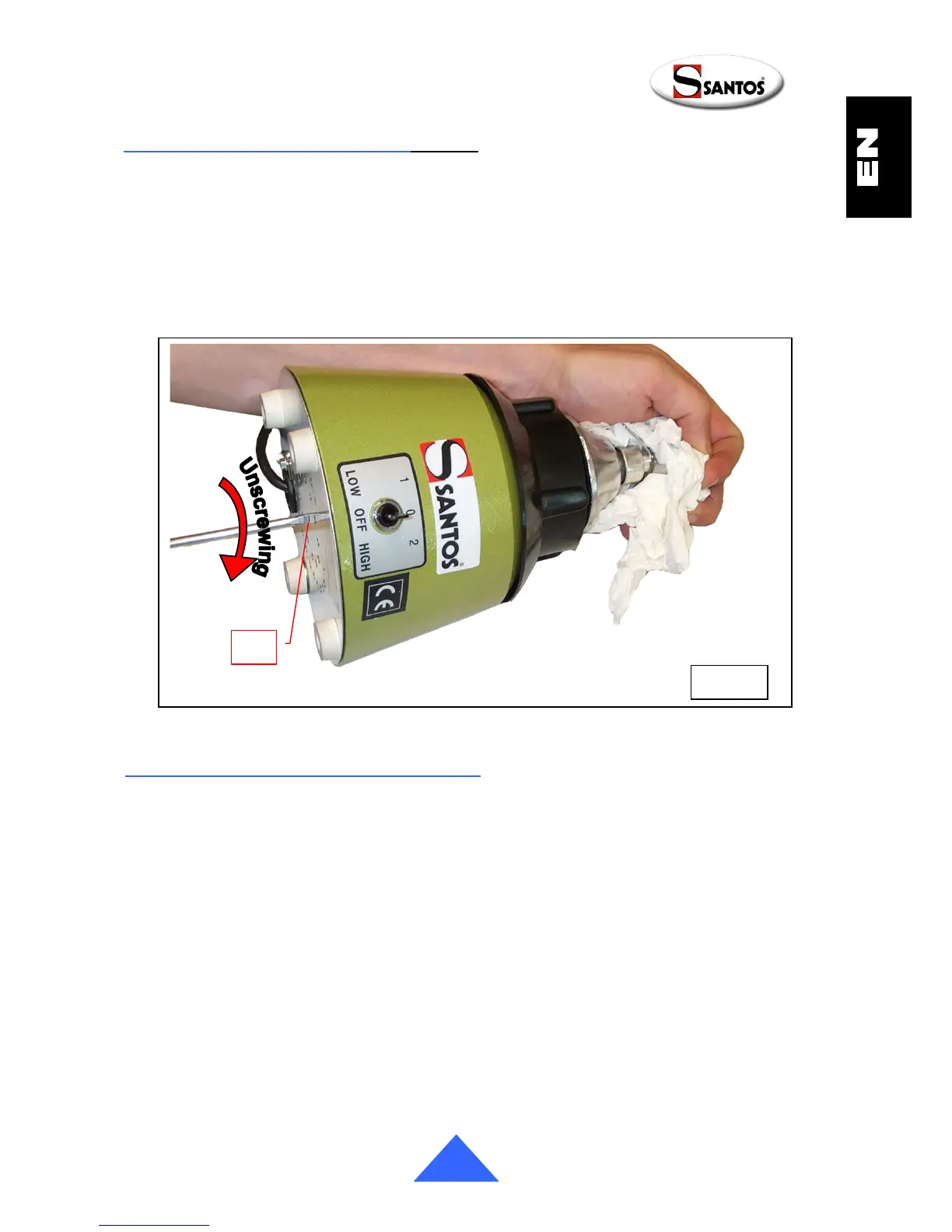

Dismantling the drive part (motor): (Fig. E)
1. Lay the motor unit down on its side.
2. Stop the rotation of the rubber drive part. You can use the knife hub (7) fitted with
the rigid coupling (12). Use a thick cloth to hold the knives to prevent you from
getting cut.
3. Via the central hole of the base plate, put a flat-ended screwdriver into the groove
of the motor shaft (13).
4. Turn the screwdriver clockwise to unscrew the motor coupling (left-hand thread).
Assembling the drive part (motor) (Fig. F):
1. Fit the motor unit (2) onto its legs.
2. By hand, screw the flexible coupling onto the motor shaft (14) anti-clockwise (left-
hand thread).
