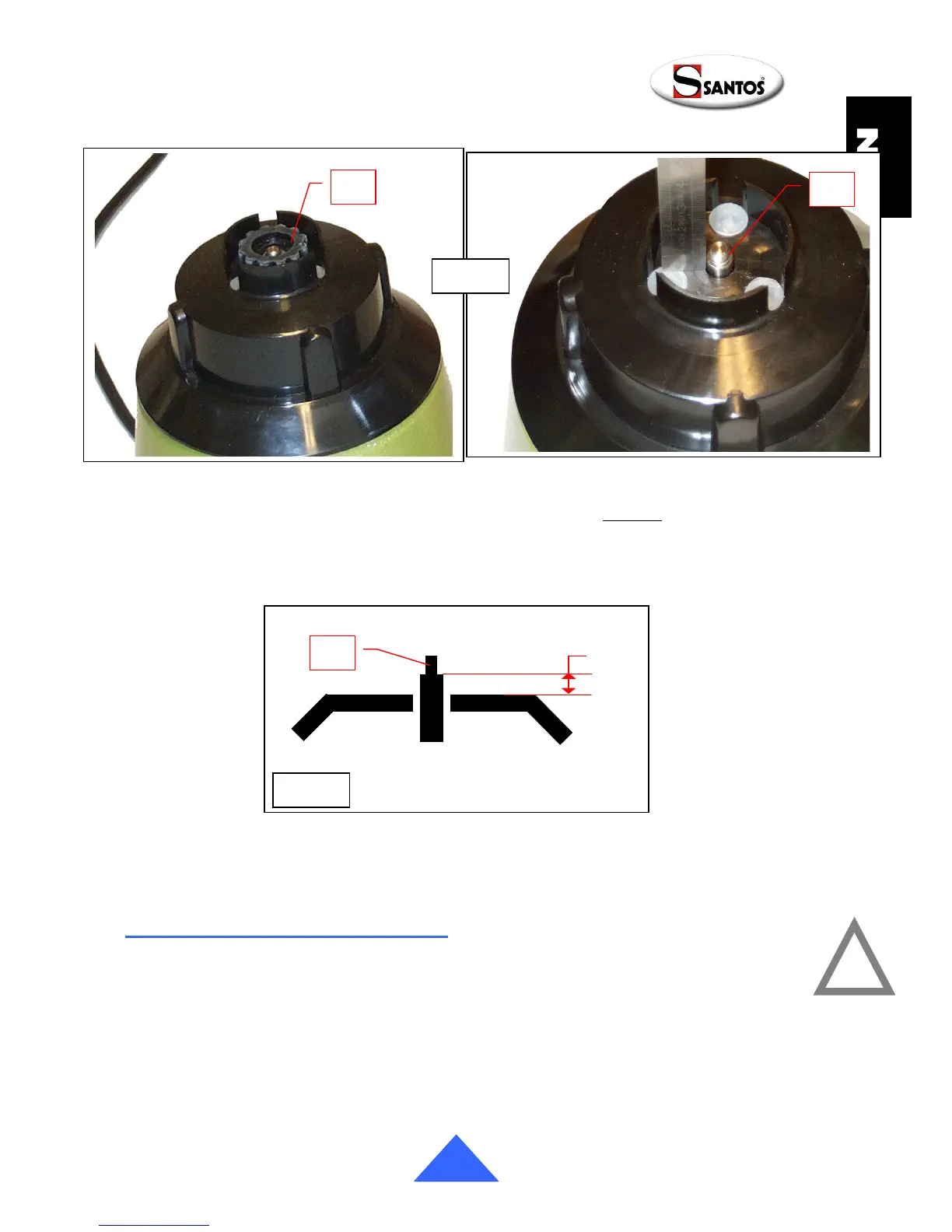

Depending on the model of the motor shaft, you may sometimes have to screw a low nut
onto the motor shaft before screwing on the flexible coupling. (Fig. G)
• If "D" is greater than 3 mm, do not screw on a low nut.
• If "D" is less than 3 mm screw a low nut (left-hand thread) onto the motor shaft then
screw on the flexible coupling (11).
Dismantling the receiver part (knives):
1. With a thick cloth, hold the knives (BE CAREFUL there is a risk of cutting yourself).
2. With pliers, catch the rigid coupling and unscrew it clockwise (left-hand thread).
