Make sure there is sufficient clearance (behind, above, below) for proper installation and
operation of the appliance.

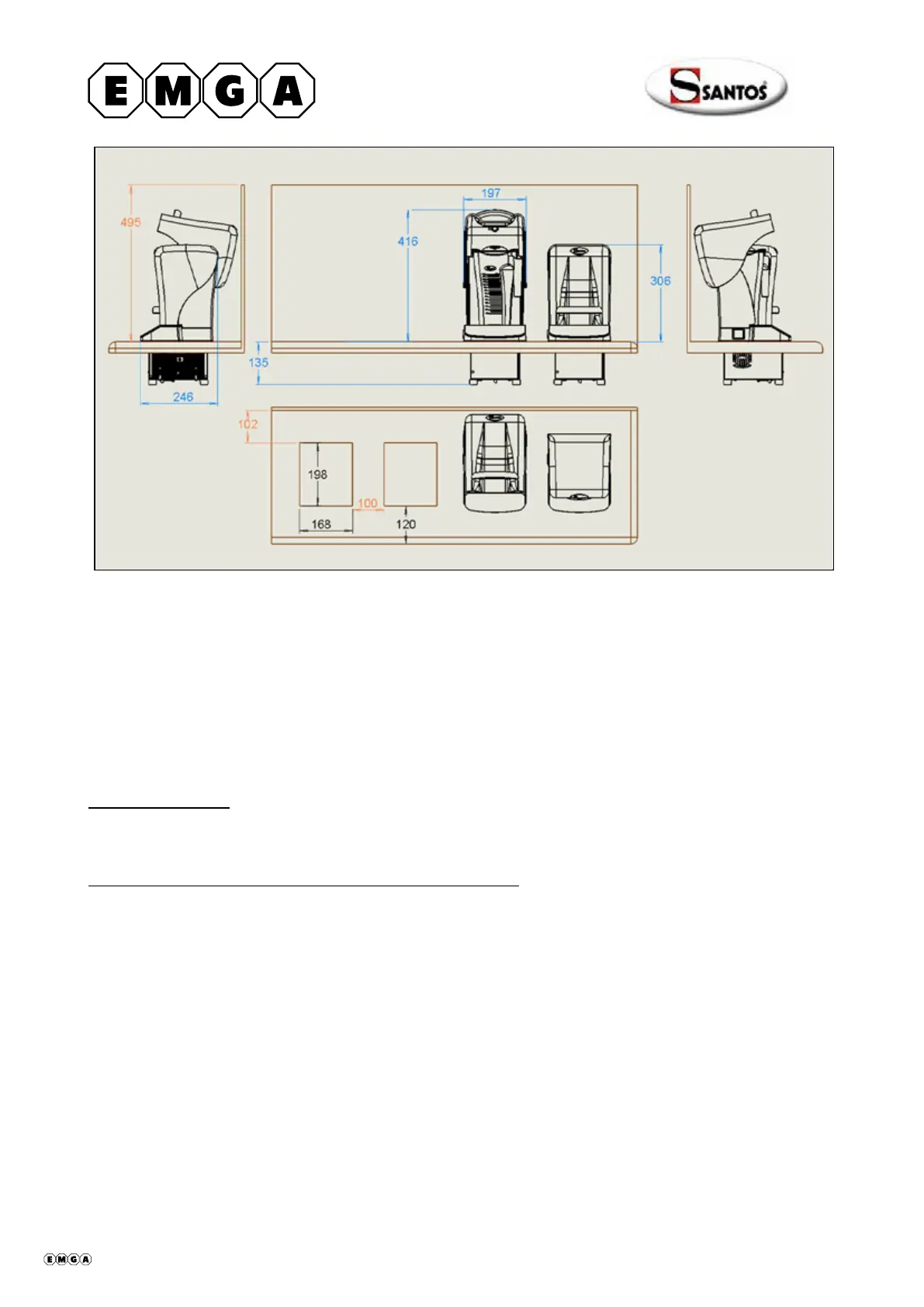

The cut-out in the countertop represents a rectangle measuring 168mm x 198mm.
Make sure there is a minimum clearance of 135mm beneath the countertop
The free space above must measure at least 495mm
The minimum clearance to the rear must be 102mm (distance between the cut-out
and the wall)
The minimum clearance sideways must be 30mm
Multiple cut-outs.
It is recommended to leave a distance of 100mm between 2 cut-outs.
Adapting the appliance to use it as a built-in version.
Disconnect the appliance from the mains.
Remove the jar (1) and hood lid (8)
Tip the appliance backwards
Using a Torx screwdriver, remove the 3 screws located between the metal casing
and motor surround (6).
Remove the motor surround (6)
