Santos 62 - Changing the Blade

98162 EN 1.3 - 01 2010 13 / 23 www.santos.fr

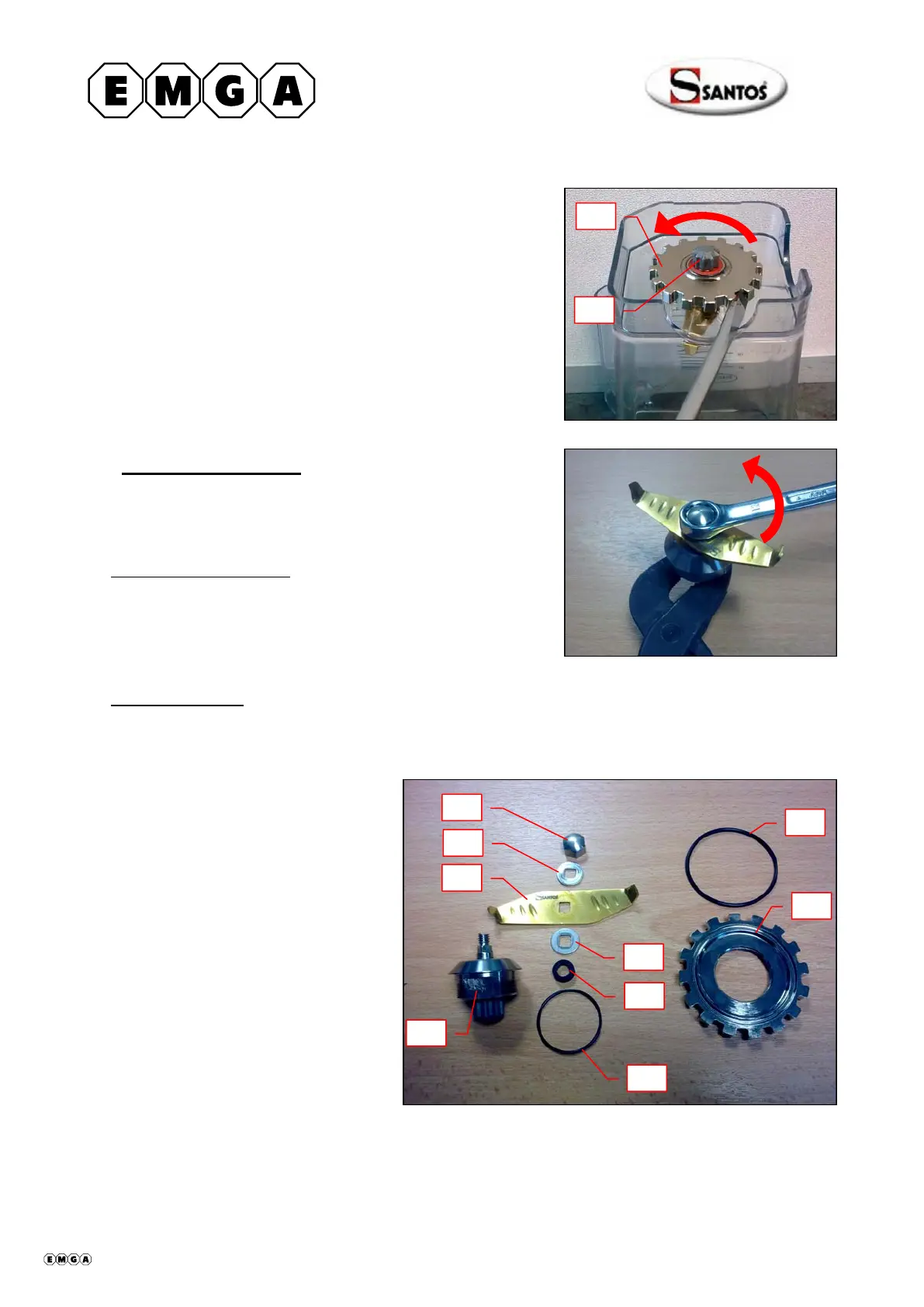

Blade drive (male):
The blade drive is an integral part of the jar ball
bearing assembly (12). The whole assembly must
be replaced (drive – main bearing – ball bearing)
17
 Turn the jar upside down.
24
 Using a large flat screwdriver, loosen the
bearing fixing ring (17) (anticlockwise)
 Remove the bearing fitted with the blender
blade from the jar
(see next section for how to dismantle the blade)
Changing the blade:
Dismantle the complete bearing assembly (see
previous section)
Dismantling the blade
Hold the blade coupling (24) in position with multiple
slip joint pliers, and unscrew the fixing nut (13)
using a size 12 hexagon wrench (anticlockwise)
Fitting the blade
Take care to comply with the order given for assembly of the various components:
1. lipped seal (15) (be sure to install correctly with lip downwards),
2. thrust washer (14),
11
3. blade (11) (recesses
upwards),
13
18
14
4. thrust washer (14) (the
lipped seal must be
pushed far enough for
the square of this washer
to work with the square
of the shaft)
17
14
5. fixing nut (13) (tighten
the nut by hand,
checking that the washer
in point 4 is correctly
positioned relative to the
square of the shaft.
15
12
16
Tighten the fixing nut.
